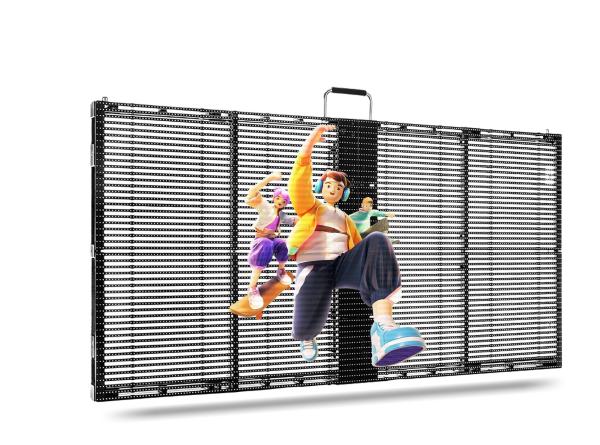

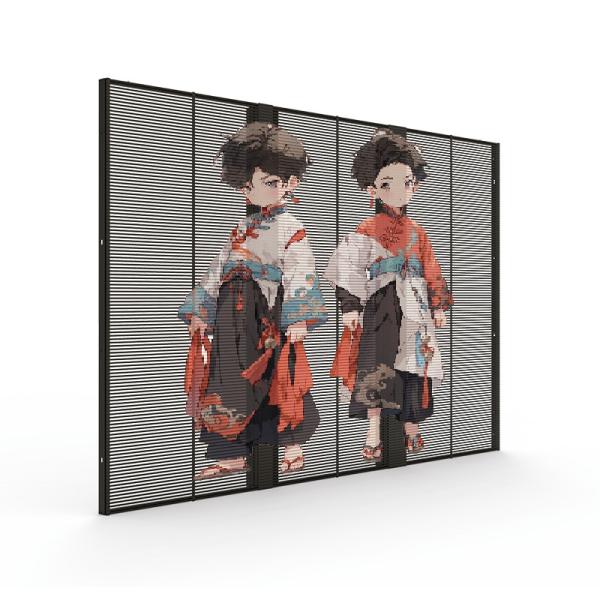

500mm*1000mm PH15-15 Outdoor Waterproof High Brightness LED Transparent Display screen
500mm*1000mm PH15-15 Outdoor Waterproof High Brightness LED Transparent Display screen
500mm*1000mm PH15-15 Outdoor Waterproof High Brightness LED Transparent Display screen
500mm*1000mm PH15-15 Outdoor Waterproof High Brightness LED Transparent Display screen
Specifications
Place of Origin :
Guangdong, China
Model Number :
TWC-F PH15-15
Brand Name :
HighMight
Packaging Details :
Flight case/wooden case/carton case packing
Price :
$800.00/square meters >=1 square meters
Certification :
CE FCC RoHS
MOQ :
>=1 square meters
Payment Terms :
T/T
Delivery Time :
7-35 work days
Usage :
Outdoor Adverting Display
Panel Size :
500mm*1000mm
LED chip :
SMD2727
Pixel Pitch :
15.6-15.6
Specification :
Video Wall
Brightness :
≥4500 cd/㎡
pixel density :
4096 dot/㎡
Lifespan (hours) :
≥100000H
IP Rating :
IP65
HS Code :
8528591090
Resolution :
64X64
Refresh rate :
3840HZ
Description

PH15-15 Outdoor Waterproof High Brightness LED Transparent Display screen

Detailed product introduction document:Outdoor fixed transparent screen TWC-F series.pdf

Applicable scenarios :

1. shopping mall

2. glass curtain wall

3. Bars/Night Clubs/KTV

4. Outdoor Fence & Partition

5. exhibition hall

6. Floor and Ceiling Display and Media Advertising

Features:

1. high permeability

2. IP65 dustproof and waterproof

3. High Standard material

4. personalized customization

5. super thin and light

6. high refresh and high gray scale

7. easy cusomize cabinet size to suits different window size

Product Details

Models: TWC-F PH15-15

Pixel Pitch (mm) 15.6-15.6 Conventional Power (W/㎡) 400-600W
Signal Connection WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system Control System Nova / Colorlight System / Magnimade System / Mooncell System
Pixel Density (dot/㎡) 4096 Transparency 75%
Cabinet Pixel 64X64 Protection Grade IP65
Refresh Rate (HZ) 3840Hz Eliminate Shadows Equipment
Driver Chip ICN2038S(same level) Input Voltage AC100～240V 50/60HZ
Scan Mode static Module Input Voltage DC4.7～5V±0.2V
Lamp Type SMD1921 Cabinet Size (mm) 1000X500X80
Brightness (cd/㎡) ≥4500 Weight (kg/㎡) 12kg/㎡
Lifespan (hours) ≥100,000H Cabinet Material Aluminum Alloy
Working Temperature and Humidity Temperature:-10～40℃ Humidity:10％-90％ Maintenance

power/Control System : rear maintenance

module:front maintenance
LED Composition RGB three in one Gray Scale 14bit
Maximum Power (W/㎡) 600-800W Installation hoisting/fixed installation/Build on standing structure

Applicable :

500mm*1000mm PH15-15 Outdoor Waterproof High Brightness LED Transparent Display screen500mm*1000mm PH15-15 Outdoor Waterproof High Brightness LED Transparent Display screen

Installation:

500mm*1000mm PH15-15 Outdoor Waterproof High Brightness LED Transparent Display screen

FQA:

Q1: How is the quality of the product?
A: Our products have been strictly tested before out of our factory. Strict quality management and control process are assured before shipping to customers.

Q2: How long could I get reply of my inquiry?
A:You will get a reply within 24 hours.

Q3: What can you buy from us?

A: Rental LED Display Screen / Transparent LED Screen Display / Outdoor LED Display Screen / LED Dance Floor Tiles / Small Pixel Pitch LED Screen / Indoor LED Display Screen / Creative LED Display / All In One LED Screen / Flexible LED Screen / LED Transparent Film Screen / Holographic LED Screen and Custom LED Screen.

Q4: How is the quality of the product?
A: Our products have been strictly tested before out of our factory. Strict quality management and control process are assured before shipping to customers.
