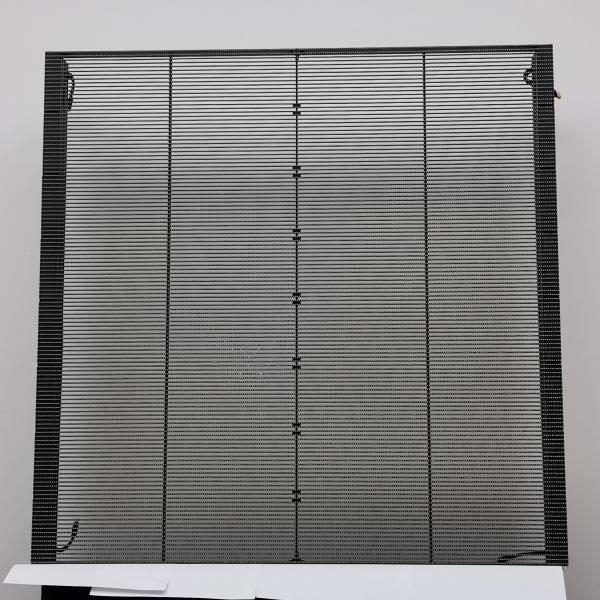

1000*1000 Transparent LED Display Screen high brightness -P5-10 Thin and Bright
1000*1000 Transparent LED Display Screen high brightness -P5-10 Thin and Bright
1000*1000 Transparent LED Display Screen high brightness -P5-10 Thin and Bright
1000*1000 Transparent LED Display Screen high brightness -P5-10 Thin and Bright
1000*1000 Transparent LED Display Screen high brightness -P5-10 Thin and Bright
1000*1000 Transparent LED Display Screen high brightness -P5-10 Thin and Bright
1000*1000 Transparent LED Display Screen high brightness -P5-10 Thin and Bright
1000*1000 Transparent LED Display Screen high brightness -P5-10 Thin and Bright
1000*1000 Transparent LED Display Screen high brightness -P5-10 Thin and Bright
1000*1000 Transparent LED Display Screen high brightness -P5-10 Thin and Bright
1000*1000 Transparent LED Display Screen high brightness -P5-10 Thin and Bright
1000*1000 Transparent LED Display Screen high brightness -P5-10 Thin and Bright
Specifications
Place of Origin :
Guangdong, China
Model Number :
TRA-B PH5-10
Brand Name :
Highmight
Packaging Details :
Flight case/wooden case/carton case packing
Price :
$258.00/square meters
Certification :
CE FCC RoHS
MOQ :
>=1 square meters
Payment Terms :
T/T
Delivery Time :
7-35 work days
Application :
Indoor
Panel Size :
1000mmX1000mm
Type :
LED
Media Available :
datasheet, Photo
Pixel Pitch :
5.2-10.4
Specification :
Video Wall
Brightness :
≥800 cd/㎡
pixel density :
18432 dot/㎡
Lifespan (hours) :
≥100000H
IP Rating :
IP30
Resolution :
192X96
Refresh rate :
1920Hz
LED chip :
SMD2121
Scan mode :
1/4 scan
Material :
Aluminum Alloy
Feature :
Thin and Bright
Description

1000*1000 Transparent LED Display Screen high brightness PH5-10 Thin and Bright

Detailed product introduction document: Indoor transparent screen TRA-B series.pdf

Applicable scenarios :

1. commercial real estate , stage performance

2. welcome display and restaurant

3. Information release
It can publish a variety of information including text, images and videos, and has encryption and content review mechanisms to ensure the legal compliance of published content. The user-friendly program management function can automatically play content according to the pre-edited time and order.
4. City, party and government propaganda
It can cooperate with festivals and important activities to broadcast city propaganda and party and government propaganda content, enrich publicity methods, enhance the image of the city, and expand the influence of party and government work.

5. exhibition hall , Retail Shop Glass Windows

6. stage performance

7. Indoor Fence & Partition

Features:

1. high permeability, high refresh and high gray scale

2. Arbitrary customization: can be customized into square, triangle, circle, cylinder (can be curved into arc) and other irregular shapes

3. good heat dissipation

4. Seamless large area splicing

5. super thin and light and Stunning image display

6. Support front and rear maintenance to reduce maintenance costs: the playback screen appears in a suspended style, which will not affect the building's lighting and vision.

Product Details

Models: TRA-B

Indoor transparent screen (TRA-B series)
models PH 2-5 PH 3-7 PH 5-10 PH 10-10 PH 15-15
Pixel Pitch (mm) 2.6 - 5.2 3.91 -7.82 5.2 -10.4 10.4-10.4 15.6-15.6
transparency 56% 76% 76% 76% 80%
Pixel Density (dot/㎡) 73728 32768 18432 9216 4096
Cabinet pixel 384X192 256X128 192X96 96X96 64X64
Refresh rate (Hz) 1920 1920 1920 1920 1920
Drive chip ICN2038S (same level) ICN2038S (same level) ICN2038S (same level) ICN2038S (same level) ICN2038S (same level)
Scan mode 1/12 Scan 1/16 Scan 1/4 Scan 1/4 Scan 1/2 Scan
LED lamp type SMD1515 SMD2121 SMD2121 SMD2727 SMD2727

Brightness

(cd/㎡)

 ≥800
Lifespan ≥ 100,000 hours
Pixel composition RGB three-in-one
Grey scale 14bit
Maximum power (W/㎡) 600-800W
Conventional power (W/㎡) 400-600W
LED control system Nova / Colorlight System / Magnimade System / Mooncell System
Signal connection WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system
Protection grade IP30
Eliminate Shadows equipment
input voltage AC100～240V 50/60HZ
Module input voltage DC4.7～5V±0.2V
Cabinet size (mm) 1000X1000X80
Weight (Kg/㎡) 7.5kg/㎡
Cabinet material Aluminium alloy
Maintenance Power/Control System : rear maintenance
Module:front maintenance
Working temperature and humidity Temperature: -10 ~ 40℃ and humidity: -10%-90% , without condensation.
Installation hoisting/fixed installation/Build on standing structure

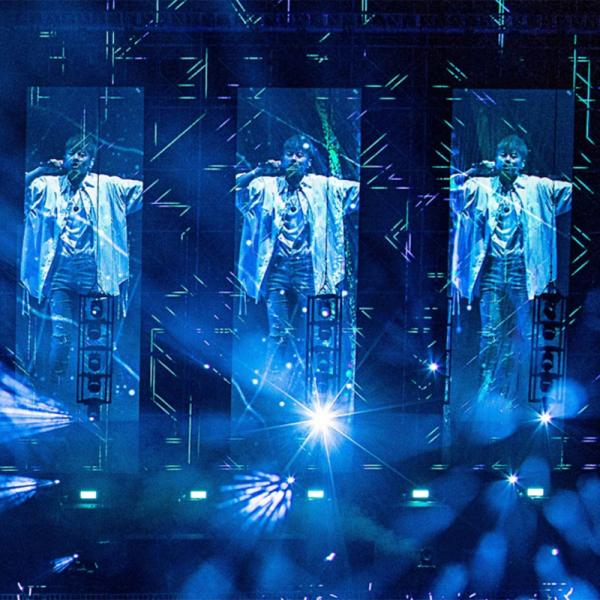

Application:

1000*1000 Transparent LED Display Screen high brightness -P5-10 Thin and Bright1000*1000 Transparent LED Display Screen high brightness -P5-10 Thin and Bright1000*1000 Transparent LED Display Screen high brightness -P5-10 Thin and Bright

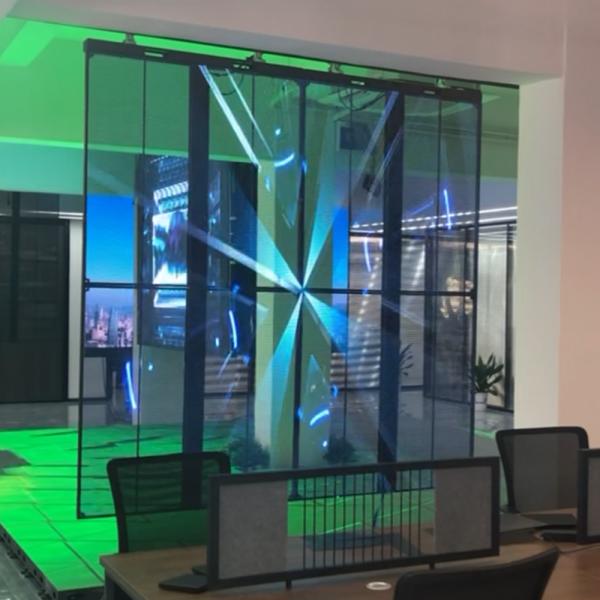

Cases show:

1000*1000 Transparent LED Display Screen high brightness -P5-10 Thin and Bright

Package and Delivery:

1000*1000 Transparent LED Display Screen high brightness -P5-10 Thin and Bright
