FM-A PH4 Outdoor LED Display Screen 320mmx160mm Super Slim Cabinet
FM-A PH4 Outdoor LED Display Screen 320mmx160mm Super Slim Cabinet
FM-A PH4 Outdoor LED Display Screen 320mmx160mm Super Slim Cabinet
FM-A PH4 Outdoor LED Display Screen 320mmx160mm Super Slim Cabinet
FM-A PH4 Outdoor LED Display Screen 320mmx160mm Super Slim Cabinet
FM-A PH4 Outdoor LED Display Screen 320mmx160mm Super Slim Cabinet
FM-A PH4 Outdoor LED Display Screen 320mmx160mm Super Slim Cabinet
FM-A PH4 Outdoor LED Display Screen 320mmx160mm Super Slim Cabinet
Specifications
Place of Origin :
Guangdong, China
Model Number :
FM-A PH4
Brand Name :
Highmight
Packaging Details :
Flight case/wooden case/carton case packing
Price :
one module price
Certification :
CE FCC RoHS
MOQ :
>=1 pieces
Payment Terms :
T/T
Delivery Time :
7-35 work days
Name :
P4 Outdoor LED Display Screen
Color :
Full color
Panel Size :
320mmx160mm
Pixel Pitch :
4mm
Brightness :
4500-7500 cd/㎡
pixel density :
62500 dot/㎡
Lifespan (hours) :
≥100000H
Application :
Outdoor
IP Rating :
IP65
Resolution :
80x40
Refresh rate :
1920HZ/3840HZ
LED chip :
SMD1921
Weight :
25kg/㎡
Description

FM-A PH4 320mmx160mm Customized Outdoor LED Display Screen super slim cabinet

Detailed product introduction document:PH2.5-PH5 outdoor fixed sheet metal box FM-A serie...

Applicable scenarios :

1. commercial real estate , stage performance

2. welcome display and restaurant

3. stage performance

4. Subway/Metro Station

5. Floor and Ceiling Display and Media Advertising

6. play videos and pictures

Features:

1. high permeability, high refresh and high gray scale

2. Arbitrary customization: can be customized into square, triangle, circle, cylinder (can be curved into arc) and other irregular shapes

3. good heat dissipation

4. ultra high brightness and High definition

5. With the light cabinet and good material , installation easily

6. fall resistant shockproof and fast assembling

Product Details

Models: FM-A PH4

Pixel Pitch (mm) 4 Maximum Power (W/㎡) 1000-1200W
Pixel Density (dot/㎡) 62500 Conventional Power (W/㎡) 400-600W
Module Pixel 80x40 LED Composition RGB three in one
Module Size 320x160 Eliminate Shadows Equipment
Refresh Rate (HZ) 1920/3840 Input Voltage AC100～240V 50/60HZ
Scan Mode 1/10 Scan Module Input Voltage DC4.7～5V±0.2V
Lamp Type SMD1921 Module Thickness(mm) 15.6
Brightness (cd/㎡) 4500-7500 Cabinet Size Customized
Lifespan (hours) ≥100,000H Gray Scale 14bit
Working Temperature and Humidity Temperature:-10～40℃ Humidity:10％-90％ Installation Magnetic installation / Cabinet installation

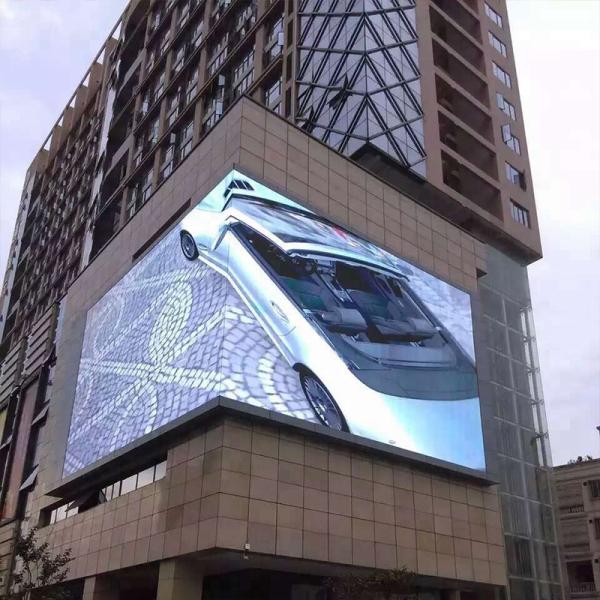

Application:

FM-A PH4 Outdoor LED Display Screen 320mmx160mm Super Slim Cabinet

FM-A PH4 Outdoor LED Display Screen 320mmx160mm Super Slim Cabinet
