LED Custom High-Definition Naked-Eye 3D Screen Outdoor Aluminum Cabinet 480mm*320mm
LED Custom High-Definition Naked-Eye 3D Screen Outdoor Aluminum Cabinet 480mm*320mm
LED Custom High-Definition Naked-Eye 3D Screen Outdoor Aluminum Cabinet 480mm*320mm
LED Custom High-Definition Naked-Eye 3D Screen Outdoor Aluminum Cabinet 480mm*320mm
Specifications
Brand Name :
Highmight
Model Number :
FA-X
Certification :
CE FCC RoHS
Place of Origin :
Guangdong, China
MOQ :
>=1 square meters
Price :
$860.00/square meters >=1 square meters
Payment Terms :
T/T
Delivery Time :
7-35 work days
Packaging Details :
Flight case/wooden case/carton case packing
Type :
LED
Panel Size :
480mmx320mm
Color :
full color
Pixel Pitch :
6.66mm
Physical pixels (dot/㎡) :
22500
Brightness :
6000 cd/㎡
Lamp bead working life :
≥ 100,000 hours
Contrast Ratio :
≥5000:1
Refresh rate :
3840HZ
Module size :
Customizable
LED chip :
SMD2727
Scan method :
1/6sweep
Maximum power (W/㎡)resolution :
650W
Average power (W/㎡) :
200W
Description

Outdoor aluminium enclosure PH6.66 480mmx320mm Customized Outdoor waterproof and dustproof LED Display Screen

Detailed product introduction document:Outdoor fixed installation front maintenance FA-X ...

Applicable scenarios:
1. commercial real estate , stage performance
2. welcome display and restaurant
3. Subway/Metro Station
4. Floor and Ceiling Display and Media Advertising
5.Commercial display

Features:
1. high permeability, high refresh and high gray scale
2. ultra high brightness and High definition
3. Unique sealing and filling technology: sealing and filling technology not only protects the lamp beads, but also has a waterproof effect, and the waterproof level is as high as IP65
4.Front and rear maintenance, convenient and fast
5.160° wide-area viewing angle

Product Details

Model number P4.44 P5.7 P6.66 P8 P10
Pixel pitch point (mm) 4.44 5.7 6.66 8 10
Module Size (mm) 480x320 480x320 480x320 480x320 480x320
Module pixel resolution 108x72 84x56 72x48 60x40 48x32
Physical pixels (dot/㎡) 50630 30625 22500 15625 10000
LED lamp bead model SMD1921 SMD2727 SMD2727 SMD2727 SMD2727
White Balance brightness (cd/㎡) 6000 6000 6000 6000 6000
Refresh rate (Hz) ≥3840 ≥3840 ≥3840 ≥3840 ≥3840
Scanning mode (constant current drive) 1/9 Sweep 1/7 sweep 1/6 sweep 1/4 sweep 1/2 sweep
PCB layers (mm) 4 4 2 2 2
Box size (mm) 960x960 960x960 960x960 960x960 960x960
Box pixel resolution 216x216 168x168 144x144 120x120 96x96
Box thickness (mm) 77 77 77 77 77
Lamp bead working life ≥ 100,000 hours
Contrast ≥5000:1
Viewing Angle 140°/140°
Temperature 2000-9500K
Gray level 14bit
Maximum power (W/㎡) 650W
Average power (W/㎡) 200W
deghosting equip
Input voltage AC100～240V 50/60HZ (Wide voltage power supply)
AC200～240V 50/60HZ(narrow voltage power supply)
Module input voltage DC4.2～5V±0.2V
Class of protection Front IP65,backIP54
Operating temperature and humidity Temperature-10～50℃ Humidity10％-90％
Module + Weight (kg/ case) 28kg
Box material Die-cast aluminum
Maintenance mode Front and rear maintenance
Installation mode Fixed installation

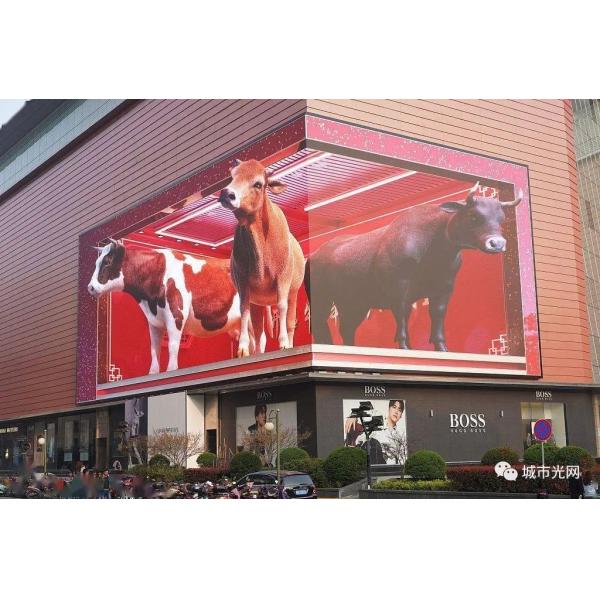

Application:

LED Custom High-Definition Naked-Eye 3D Screen Outdoor Aluminum Cabinet 480mm*320mmLED Custom High-Definition Naked-Eye 3D Screen Outdoor Aluminum Cabinet 480mm*320mm


FQA:
Q1: How is the quality of the product?
A: Our products have been strictly tested before out of our factory. Strict quality management and control process are assured before shipping to customers.


Q2: How long could I get reply of my inquiry?
A:You will get a reply within 24 hours.


Q3: How is the quality of the product?
A: Our products have been strictly tested before out of our factory. Strict quality management and control process are assured before shipping to customers.
