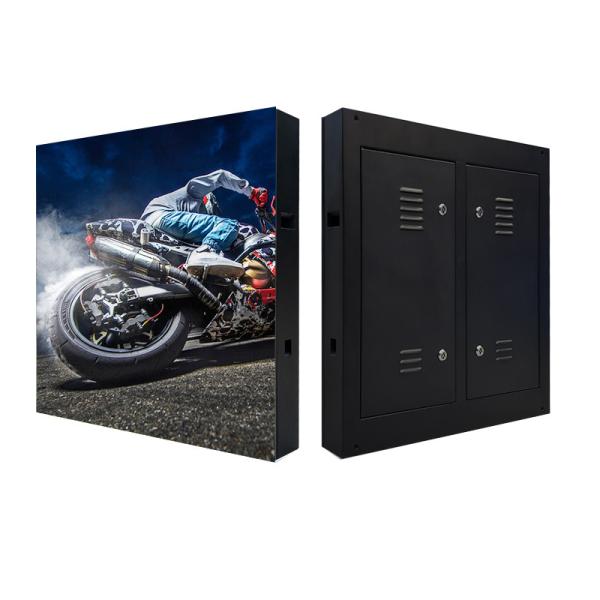

FM-B PH6 Outdoor LED Display Screen For Advertising 192mmx192mm Customized
FM-B PH6 Outdoor LED Display Screen For Advertising 192mmx192mm Customized
FM-B PH6 Outdoor LED Display Screen For Advertising 192mmx192mm Customized
FM-B PH6 Outdoor LED Display Screen For Advertising 192mmx192mm Customized
FM-B PH6 Outdoor LED Display Screen For Advertising 192mmx192mm Customized
FM-B PH6 Outdoor LED Display Screen For Advertising 192mmx192mm Customized
FM-B PH6 Outdoor LED Display Screen For Advertising 192mmx192mm Customized
FM-B PH6 Outdoor LED Display Screen For Advertising 192mmx192mm Customized
Specifications
Place of Origin :
Guangdong, China
Model Number :
FM-B PH6
Brand Name :
Highmight
Packaging Details :
Flight case/wooden case/carton case packing
Price :
one module price
Certification :
CE FCC RoHS
MOQ :
>=1 pieces
Payment Terms :
T/T
Delivery Time :
7-35 work days
Name :
P6 Outdoor LED Display Screen
Panel Size :
192mmx192mm
Pixel Pitch :
6mm
Brightness :
4500-7500 cd/㎡
pixel density :
27777 dot/㎡
Lifespan (hours) :
≥100000H
IP Rating :
IP65
Resolution :
32x32
Refresh rate :
1920HZ/3840HZ
LED chip :
SMD2727/SMD3535
Scan mode :
1/8 Scan
Description

FM-B PH6 192mmx192mm Customized Outdoor LED Display Screen advertising led screen

Detailed product introduction document:Outdoor fixed sheet metal box FM-B series.pdf

Applicable scenarios:

1. commercial real estate , stage performance

2. welcome display and restaurant

3. stage performance

4. radio and television studios

5. Floor and Ceiling Display and Media Advertising

6. Interior Decoration

Features:

1, outdoor waterproof: positive/back waterproof grade ip65;

2, HD display perfect level of enjoyment: 16Bits high gray level, 1920 high refresh, live switching without flicker;
3, fast, simple, convenient: multi-functional link, more stable, convenient, safe;
4, support arc splicing: can be customized arc lock, support multi-angle installation, splicing box seamless splicing;
5, convenient mixing: H500/H1000 box module common, play screen diversification;
6, high brightness: support indoor and outdoor universal.

Product Details

Models: FM-B PH6

Pixel Pitch (mm) 6 Maximum Power (W/㎡) 1000-1200W
Pixel Density (dot/㎡) 27777 Conventional Power (W/㎡) 400-600W
Module Pixel 32x32 LED Composition RGB three in one
Module Size 192x192 Eliminate Shadows Equipment
Refresh Rate (HZ) 1920/3840 Input Voltage AC100～240V 50/60HZ
Scan Mode 1/8 Scan Module Input Voltage DC4.7～5V±0.2V
Lamp Type SMD2727/SMD3535 Module Thickness(mm) 15.6
Brightness (cd/㎡) 4500-7500 Cabinet Size Customized
Lifespan (hours) ≥100,000H Gray Scale 14bit
Working Temperature and Humidity Temperature:-10～40℃ Humidity:10％-90％ Installation Magnetic installation / Cabinet installation


Application:

FM-B PH6 Outdoor LED Display Screen For Advertising 192mmx192mm CustomizedFM-B PH6 Outdoor LED Display Screen For Advertising 192mmx192mm Customized
