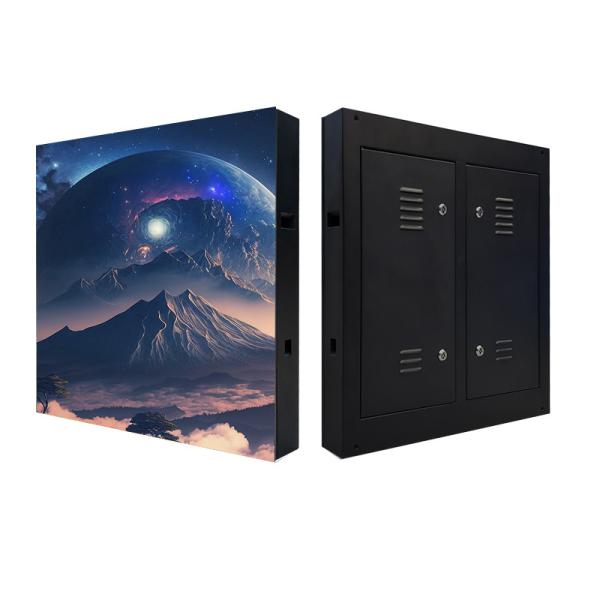

FM-B PH3 3D Outdoor Advertising LED Display Screen IP65 Full Color
FM-B PH3 3D Outdoor Advertising LED Display Screen IP65 Full Color
FM-B PH3 3D Outdoor Advertising LED Display Screen IP65 Full Color
FM-B PH3 3D Outdoor Advertising LED Display Screen IP65 Full Color
Specifications
Place of Origin :
Guangdong, China
Model Number :
FM-A PH3
Brand Name :
Highmight
Packaging Details :
Flight case/wooden case/carton case packing
Price :
$920.00/square meters >=1 square meters
Certification :
CE FCC RoHS
MOQ :
>=1 pieces
Payment Terms :
T/T
Delivery Time :
7-35 work days
pixel density :
111111 dot/㎡
Brightness :
4500-7500 cd/㎡
Type :
LED
Application :
Outdoor
Color :
Full Color
Media Available :
datasheet, Photo
Panel Size :
192mmx192mm
Pixel Pitch :
3mm
Specification :
Video Wall
Lifespan (hours) :
≥100000H
IP Rating :
IP65
HS Code :
8528591090
Resolution :
64x64
Refresh rate :
1920HZ/3840HZ
LED chip :
SMD1415/SMD1921
Scan mode :
1/16 scan
Description

FM-B PH3 Customized Outdoor Waterproof 3D Advertising LED Display Screen

Detailed product introduction document:Outdoor fixed sheet metal box FM-B series.pdf

Applicable scenarios :

1. commercial real estate , stage performance

2. welcome display and restaurant

3. Bars/Night Clubs/KTV

4. space decoration

5. promotional activities

6. Floor and Ceiling Display and Media Advertising

Features:

1. Unique sealing and filling technology: sealing and filling technology not only protects the lamp beads, but also has a waterproof effect, and the waterproof level is as high as IP65;

2. Arbitrary customization: can be customized into square, triangle, circle, cylinder (can be curved into arc) and other irregular shapes

3. Quick heat dissipation and energy saving: 30%~50% lower in power consumption than traditional led displays.

4. ultra high brightness and High definition

5. wide viewing angle H120° V120°: To meet see-through video display requirements in multiple occasions.

6. Fast, simple and convenient: multi-functional link, more stable, convenient and safe

Product Details

Models: FM-B PH3

Pixel Pitch (mm) 3 Maximum Power (W/㎡) 1000-1200W
Pixel Density (dot/㎡) 111111 Conventional Power (W/㎡) 400-600W
Module Pixel 64x64 LED Composition RGB three in one
Module Size 192x192 Eliminate Shadows Equipment
Refresh Rate (HZ) 1920/3840 Input Voltage AC100～240V 50/60HZ
Scan Mode 1/16 Scan Module Input Voltage DC4.7～5V±0.2V
Lamp Type SMD1415/SMD1921 Module Thickness(mm) 15.6
Brightness (cd/㎡) 4500-7500 Cabinet Size Customized
Lifespan (hours) ≥100,000H Gray Scale 14bit
Working Temperature and Humidity Temperature:-10～40℃ Humidity:10％-90％ Installation Magnetic installation / Cabinet installation


Application:

FM-B PH3 3D Outdoor Advertising LED Display Screen IP65 Full Color

FM-B PH3 3D Outdoor Advertising LED Display Screen IP65 Full Color
