Outdoor Transparent Glass Led Display Curtain For Building Surface Advertising
Outdoor Transparent Glass Led Display Curtain For Building Surface Advertising
Outdoor Transparent Glass Led Display Curtain For Building Surface Advertising
Outdoor Transparent Glass Led Display Curtain For Building Surface Advertising
Outdoor Transparent Glass Led Display Curtain For Building Surface Advertising
Outdoor Transparent Glass Led Display Curtain For Building Surface Advertising
Specifications
Brand Name :
Bakovision
Model Number :
BOC Series
Certification :
CE ETL FCC CCC
Place of Origin :
China
MOQ :
1 sqm
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, D/P
Supply Ability :
10,000 sqm/month
Delivery Time :
15-25 days
Packaging Details :
Wooden case or flight case
Physical Pitch :
31.25mm/15.625mm
Expected Lifetime :
100,000Hrs
Pannel Material :
Aluminum
IP Rating(Front/Rear) :
IP67
Refresh Rate :
＞3840Hz
Brightness :
＞6500nits
Weight :
15kg/per square meter
Size of Cabinet :
500 x 1000mm
Description

Outdoor Transparent Glass Led Display Curtain For Building Surface Advertising


Curtain Transparent Glass Led Screen Quick Details:

1, Pixel Pitch:DIP Lamps.
2, Full colors: 281trillions.
3, Wide viewing angle: 120°/ 60°.
4, Input Voltage: AC110V/220V, 50/60Hz.
5, Standard cabinet size: 1500 x 250 mm, weight: 8.5kg/Sqm.
6, Recommended minimum viewing distance: 10m.


Curtain Transparent Glass Led Screen Application:

Waterproof IP67 Transparent Led Display are specially designed for being mounted on any building wall, applied for bank, large shopping mall, theatres, chain stores, hotels, and landmarks etc. It can achieve a great visual effect and adds creativity to the building design. It's 15kg lightweight, making it the perfect choice for creative designing company.

Curtain Transparent Glass Led Screen Features and Advantages:

1. Bright and visible

Brightness ≥7,500 nits is enough for outdoor use, and high visibility even under direct sunlight, without any cooling system, energy efficient
2. Light weight and ultra thin
The cabinet is only 15kg, requires little space for the installation
3. Stability and reliability
Using DIP led which is stability and reliability compare with SMD Led. High brightness and high refresh rate ≥3,840Hz
4. Transparency 80%
Up to 80% transparency rate allow natural lighting go inside the building.
5. Simple maintenance
Quick and simple, repairing Led without taking out single module or entire panel
6. Wide applications
All kinds of building with glass window or wall, for example, bank, large shopping mall, theatres, chain stores, hotels, and landmarks etc.
7. Easy and quick installation
Fast lock systems ensure efficient installation and efficient.

Curtain Transparent Glass Led Screen Specification:

Physical Pitch 25mm 25mm (H), 35 mm (V) 25mm (H), 50 mm (V) 31.25mm 31.25mm (H), 50 mm (V)
Pixel Configuration 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Pixel Density 1,600 pixels/Square Meter 1,120 pixels/Square Meter 800 pixels/Square Meter 1,024 pixels/Square Meter 640 pixels/Square Meter
Unit Size (W x H) (mm) ≥1500 x 250 ≥1500 x 250 ≥1500 x 250 ≥1500 x 250 ≥1500 x 250
Panel Material Aluminum Aluminum Aluminum Aluminum Aluminum
Weight 15 kg/Square Meter 10.6 kg/Square Meter 8.5 kg/Square Meter 15 kg/Square Meter 9.6 kg/Square Meter
Processing 16bit 16bit 16bit 16bit 16bit
Colours 281 trillion 281 trillion 281 trillion 281 trillion 281 trillion
Contrast Ratio 2,000 : 1 2,000 : 1 2,000 : 1 2,000 : 1 2,000 : 1
Average Power Consumption 150 W /panel 115 W /panel 85 W /panel 107 W /panel 67 W /panel
Max Power Consumption 450 W /panel 345 W /panel 255 W /panel 329 W /panel 200 W /panel
Brightness ≥7,500nits ≥6,500nits ≥5,000nits ≥6,500nits ≥4,000nits
Refresh Rate ≥3,840 Hz ≥3,840 Hz ≥3,840 Hz ≥3,840 Hz ≥3,840 Hz
Horizontal Viewing Angle 120° 120° 120° 120° 120°
Vertical Viewing Angle 60° 60° 60° 60° 60°
Expected Lifetime 100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs
Servicing Front / Rear Front / Rear Front / Rear Front / Rear Front / Rear
IP Rating (Front/Rear) IP 67 IP 67 IP 67 IP 67 IP 67
Operating Temp/Humidity -30ºC - 60ºC / 10ºC - 90ºC -30ºC - 60ºC / 10ºC - 90ºC -30ºC - 60ºC / 10ºC - 90ºC -30ºC - 60ºC / 10ºC - 90ºC -30ºC - 60ºC / 10ºC - 90ºC
Storage Temp/Humidity -40ºC - 85ºC / 10ºC - 95ºC -40ºC - 85ºC / 10ºC - 95ºC -40ºC - 85ºC / 10ºC - 95ºC -40ºC - 85ºC / 10ºC - 95ºC -40ºC - 85ºC / 10ºC - 95ºC
Certification CCC, CE, ETL, FCC, TUV CCC, CE, ETL, FCC, TUV CCC, CE, ETL, FCC, TUV CCC, CE, ETL, FCC, TUV CCC, CE, ETL, FCC, TUV

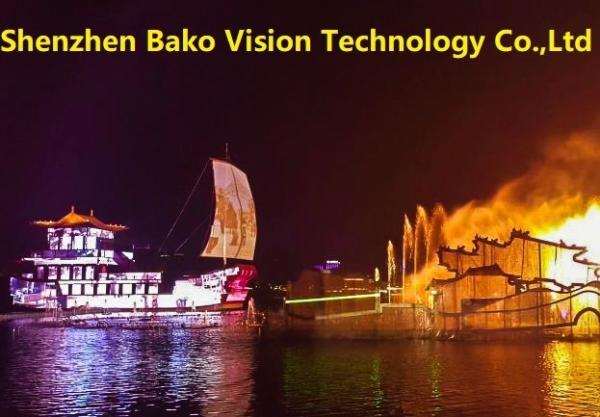

Curtain Transparent Glass Led Screen Case:

Outdoor Transparent Glass Led Display Curtain For Building Surface Advertising
Outdoor Transparent Glass Led Display Curtain For Building Surface AdvertisingOutdoor Transparent Glass Led Display Curtain For Building Surface AdvertisingOutdoor Transparent Glass Led Display Curtain For Building Surface AdvertisingOutdoor Transparent Glass Led Display Curtain For Building Surface AdvertisingOutdoor Transparent Glass Led Display Curtain For Building Surface AdvertisingOutdoor Transparent Glass Led Display Curtain For Building Surface AdvertisingOutdoor Transparent Glass Led Display Curtain For Building Surface AdvertisingOutdoor Transparent Glass Led Display Curtain For Building Surface AdvertisingOutdoor Transparent Glass Led Display Curtain For Building Surface Advertising
