Physical Pitch 5*8mm 80% Transparency Glass LED Modules Brightness 5500 Nits
Physical Pitch 5*8mm 80% Transparency Glass LED Modules Brightness 5500 Nits
Physical Pitch 5*8mm 80% Transparency Glass LED Modules Brightness 5500 Nits
Physical Pitch 5*8mm 80% Transparency Glass LED Modules Brightness 5500 Nits
Physical Pitch 5*8mm 80% Transparency Glass LED Modules Brightness 5500 Nits
Physical Pitch 5*8mm 80% Transparency Glass LED Modules Brightness 5500 Nits
Physical Pitch 5*8mm 80% Transparency Glass LED Modules Brightness 5500 Nits
Physical Pitch 5*8mm 80% Transparency Glass LED Modules Brightness 5500 Nits
Specifications
Brand Name :
BAKO VISION
Model Number :
BG
Certification :
CCC, CE, ETL, FCC
Place of Origin :
CHINA
MOQ :
1 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10, 000 Sqm/Month
Delivery Time :
20days
Packaging Details :
Wooden case/ Freight case
Contrast Ratio :
2000:1
Processing :
16 Bit
Viewing Angle :
V:140 Degree / H: 120 Degree
Operating Temp/ Humidity :
-10ºC-60ºC/10%-60%
Storage Temp/Humidity :
-30ºC-60ºC/10%-60%
Colors :
281 Trillion
Brightness :
>5,500 Nits
Serving :
Rear
Description

80% Transparency Glass LED Modules With Brightness 5500 nits, Physical Pitch 5*8mm

Main Features

1,Ultra-thin, Ultra-light
Light design with 9.5kg/m², strong aluminum material for fixed installation in the building or in shopping mall

2,. Easy and fast installation
Quick lock design, easy to assemble and maintenance.

Physical Pitch 5*8mm 80% Transparency Glass LED Modules Brightness 5500 Nits

3,Labor efficient---Reduce the labor time and cost by 60%

4,Seamless stiching
Hight-precision equipment processing, good flatness, accurate size, real seamless stitching.

Physical Pitch 5*8mm 80% Transparency Glass LED Modules Brightness 5500 Nits

4,Transparent LED Screen
The higher transparency effect allows you to see LED light on the glass without any effect to surround of glass wall.

5,Stability long life time-----Low consumption of electricity to increase the lifetime of LED

6,Intelligent control---4G and WiFi networking, convenient -Mobile phone, video, PC multiple interaction.

Physical Pitch 5*8mm 80% Transparency Glass LED Modules Brightness 5500 Nits

Specifications

BG-3.75-6.67
Physical Pitch 5*8mm
Pixel Configuration SMD3528
Pixel Density 25,000pixels/m²
Module Dimensions(W*H)(mm) 480*320
Panel Dimensions(mm) 960*640
Weight(kg/m²) 9.5kg/m²
Physical Resolution of Module(W*H) 96*40
Physical Resolution of Panel(W*H) 192*80
Colors 281 trillion
Processing 16 bit
Contrast Ratio 2000:1
IP Rating IP40
Viewing Angle H:160°,V:140°
Panel Material Alumium
Expected Lifetime 100,000Hrs
Operating Temp/Humidity -10ºC-60ºC/10%-60%
Storage Temp/Humidity -30ºC-60ºC/10%-60%
Avg/Max Power Consumption 203/ 670/W/m²
Servicing Rear
Refresh Rate >1920 Hz
Avg/Max. Power Consumption 207/690 W/m²
Brightness >5,500 nits

Technology Training
(A) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(B) We will send our engineers to your country by negotiation.

Physical Pitch 5*8mm 80% Transparency Glass LED Modules Brightness 5500 Nits

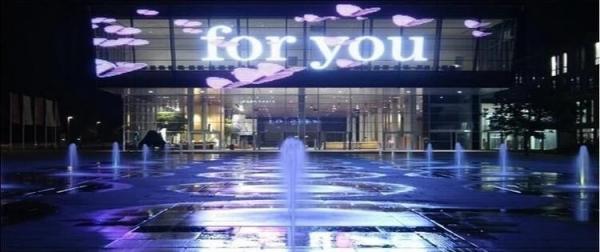

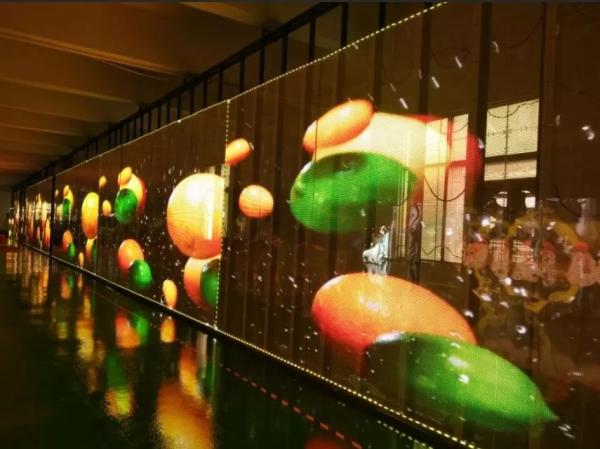

Application

Physical Pitch 5*8mm 80% Transparency Glass LED Modules Brightness 5500 Nits

Application Case:
Widely used for shopping malls, entertainment venues,car show, theme resort, trade show, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, indoor stadium, and a variety of public facilities and etc.

About us

Physical Pitch 5*8mm 80% Transparency Glass LED Modules Brightness 5500 Nits

Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

Why choose BAKOVISION?
1. Strict processing procedures makes perfect product. Every production procedure, we have QC to check the quality;
2. more than 10 years experience in led display industry, we have most talented engineers to design best products for our clients;
3. Top quality machines to make top quality products;
4. Most competitive price make our led displays are afordable;
5. "Customer first" is our belief. We promise to offer best products with good service for our clients
