Specifications
Brand Name :
Bako Vision
Model Number :
BOT
Certification :
CE RoHs CCC EMC
Place of Origin :
China
MOQ :
1 sqm
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000m2 per month
Delivery Time :
25 working days
Packaging Details :
Flight Case/ Plywood Case
Module Quantity/Panel :
4PCS
Pixel Density/Module :
2304 Dots
Panel Dimension :
1000 X 500mm
Panel Resolution :
192 X 48
Brightness :
5500CD/M2
Viewing Angle :
140(H), 120(V)
Description

Glass Advertising Led Display Wide Angle Screen High Brightness 1000X500mm Cabinet P5 Video Wall14-BG-Tia.pdf

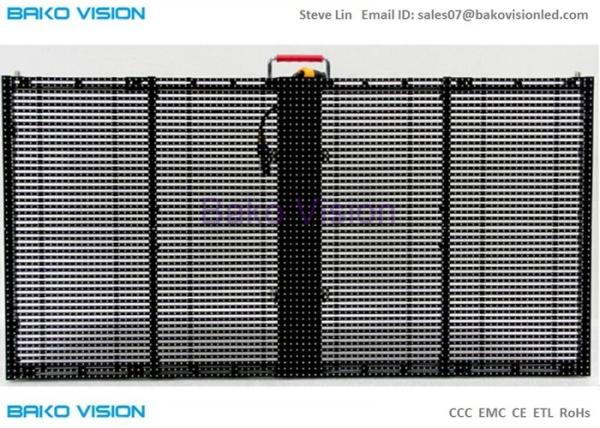

Outdoor transparent led display specification:

Model P-5.2
Pixel Pitch 5.21mm;10.42mm
Scan Method 1/2 scan
Driving IC MY9866 QFN
Module Dimension 500x250mm
Module Resolution 96x24
Pixel Density/Module 2304 Dots
Panel Dimension 1000x500mm
Panel Resolution 192×48
Module Quantity/Panel 4pcs
Pixel Density 18,432 Dots/m2
Material Die-casting Aluminum
Single Panel Weight 8.5KG
Brightness 5500cd/m2
Viewing Angle 140°(H), 120°(V)
Best Viewing Distance ≥6m
Gray Scale 16 bit
Colours 281 trillion
Refresh Rate ≥3840Hz
refresh frame frequency 60Hz
IP Rating IP65
Input Voltage AC220V/50Hz ; AC110V/60Hz


Outdoor transparent led display features:
High guarantee for waterproof ability.
Highbrightness for outdoor daytime use.
Perferct choice for Mall/Skyscraper outdoor window advertising tool!

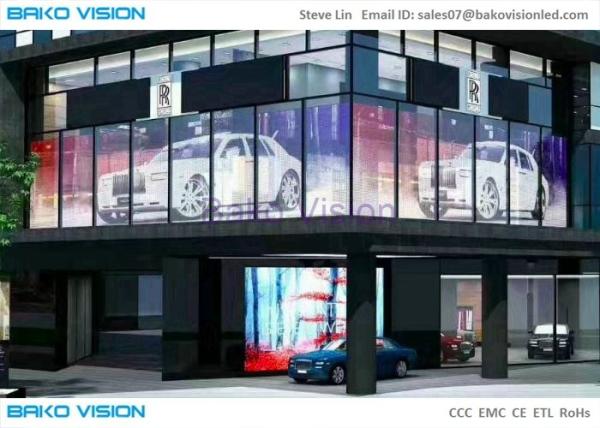

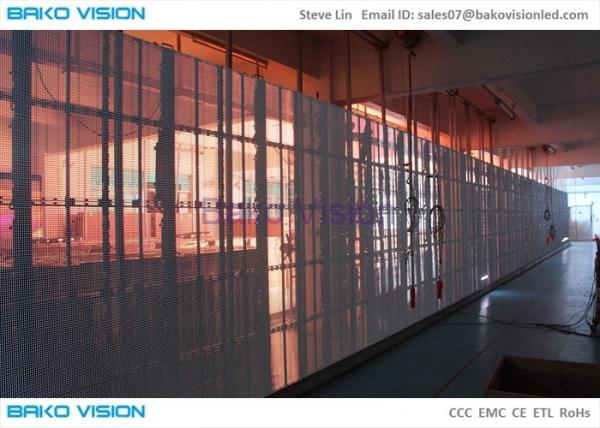

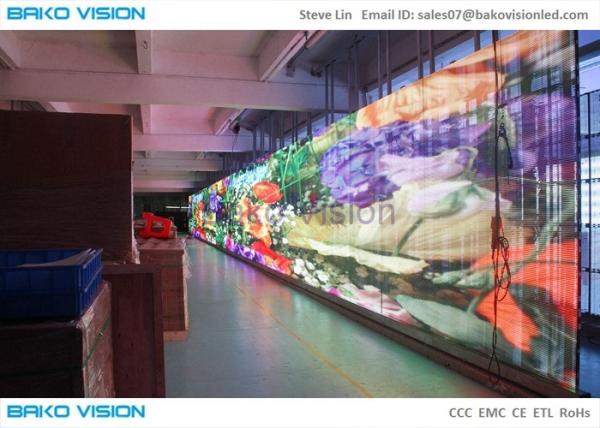

Outdoor transparent led display case and workshop:
Glass Advertising Led Display Wide Angle Screen High Brightness 1000X500mm Cabinet P5 Video WallGlass Advertising Led Display Wide Angle Screen High Brightness 1000X500mm Cabinet P5 Video Wall
Our advantage:
Rich experience: established in 2005; familiar with technical and material about LED display.
Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.
Powerful R&D ability: excellent engineers are constantly developing new products and improving them.
Good quality: all products have passed CE, ROHS, FCC certification.
Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.
Warranty: we guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime.
FAQ
Q1. Could I get a sample order of led display?
A: Yes, welcome to your sample order to check the quality.
Q2: Could we print our own logo on led display products?
A: Of course. Please let us know all the details soon before production.
Q3: Do you offer guarantee for the led display products?
A: Yes, we offer one year warranty for our products.
Q4: Whether to provide technical training (installation training and use training)?
A: Yes, we offer full service, Including pre-sale, sale, after-sales service, you can rest assured to buy.
