Specifications
Brand Name :
Bako Vision
Model Number :
BOC
Certification :
CE,ETL,CCC,FCC,TUV
Place of Origin :
China
MOQ :
1sqm
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000sqms/month
Delivery Time :
15days
Packaging Details :
Flightcase,Plywooden case
Panel Material :
Aluminum
IP Rating :
IP67
Peocessing :
16bit
Contrast Ratio :
2000:1
Expected Lifetime :
100,000 Hrs
Servicing :
Front/Rear
Refresh Rate :
3,840
Description

Full Color Outdoor LED Transparent Screen Advertising LED Building Curtain Display

BOC-2525 BOC-2535 BOC-2550 BOC-31.25 BOC-3150
Physical Pitch 25mm 25mm(H) 35mm(V) 25mm(H) 35mm(V) 31.25mm 31.25mm(H) 50mm(V)
Physical Configuration 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Pixel Density 1,600 pixels/sqm 1,120 pixels/sqm 800 pixels/sqm 1,024 pixels/sqm 640pixels/sqm
Unit Size(W*H)(mm) ≥1500*250 ≥1500*250 ≥1500*250 ≥1500*250 ≥1500*250
Physical Resolution of Unit (H*V) 60*10 60*7 60*5 48*8 48*5
Panel Material Aluminum Aluminum Aluminum Aluminum Aluminum
Weight 15kg/sqm 10.6kg/sqm 8.5kg/sqm 15kg/sqm 9.6kg/sqm
Processing 16bit 16bit 16bit 16bit 16bit
Contrast Ratio 2000:1 2000:1 2000:1 2000:1 2000:1
Average Power Consumption 150W/sqm 115W/sqm 85W/sqm 107W/sqm 67W/sqm
Max Power Consumption 450W/sqm 345W/sqm 255W/sqm 329W/sqm 200W/sqm
Brightness ≥7,500nits ≥6,500nits ≥5,000nits ≥6,500nits ≥4,000nits
Refresh Rate ≥3.840Hz ≥3.840Hz ≥3.840Hz ≥3.840Hz ≥3.840Hz
Horizontal Viewing Angle 120° 120° 120° 120° 120°
Vertical Viewing Angle 60° 60° 60° 60° 60°
Servicing Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear
IP Rating(Front/Rear) IP67 IP67 IP67 IP67 IP67

Product Advantages

Feature light weight and slim profile,combines flat strength and precision

Front and back service, power supply,control card and modules all come true Modular design system.
Highly displays steady current circuit design,easy to come true high rate and high gray level
Narrow PCB design,low wind resistance,high transparency,customized transparency
Linear structure,customized curved display
Customized cabinet structure according to window design
Variety installation method
Easy installation and maintenance
Fanless,noiseless
IP67 Rated
Outdoor LED Transparent Screen , Advertising LED Building Curtain Display Full Color

About Product

Outdoor LED Transparent Screen , Advertising LED Building Curtain Display Full Color

Outdoor LED Transparent Screen , Advertising LED Building Curtain Display Full Color

Outdoor LED Transparent Screen , Advertising LED Building Curtain Display Full Color

Outdoor LED Transparent Screen , Advertising LED Building Curtain Display Full Color

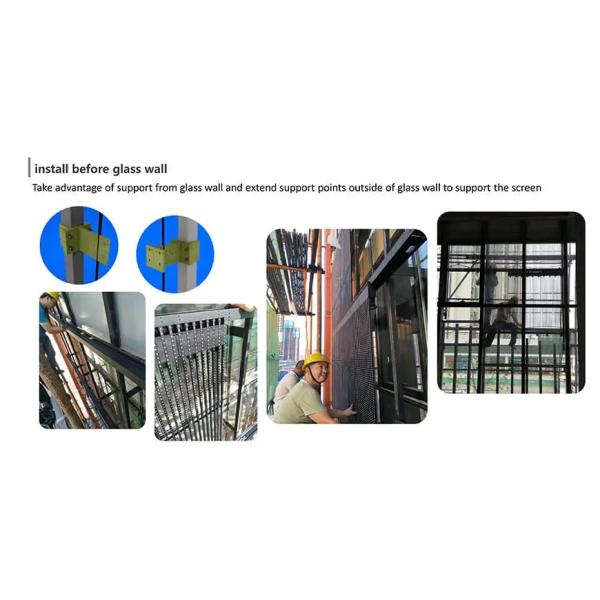

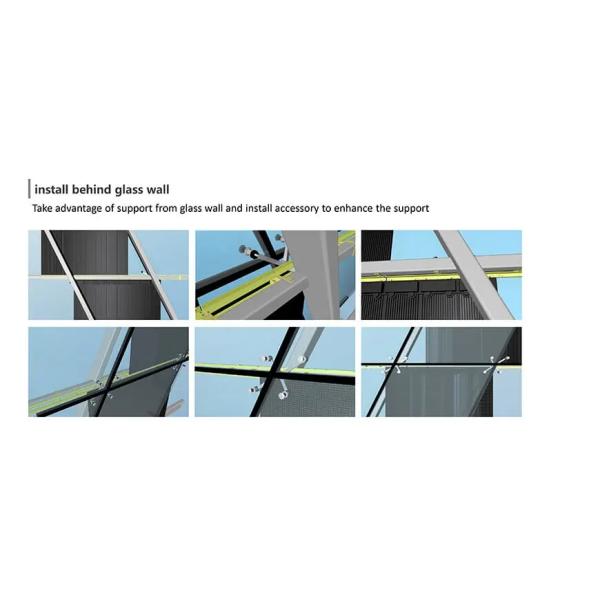

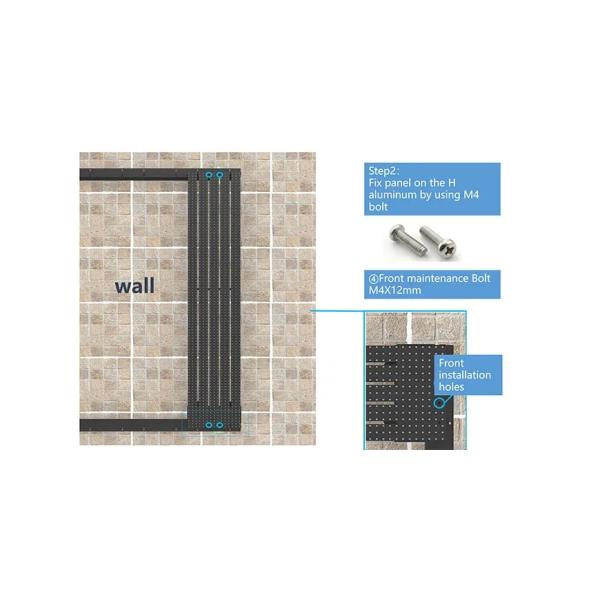

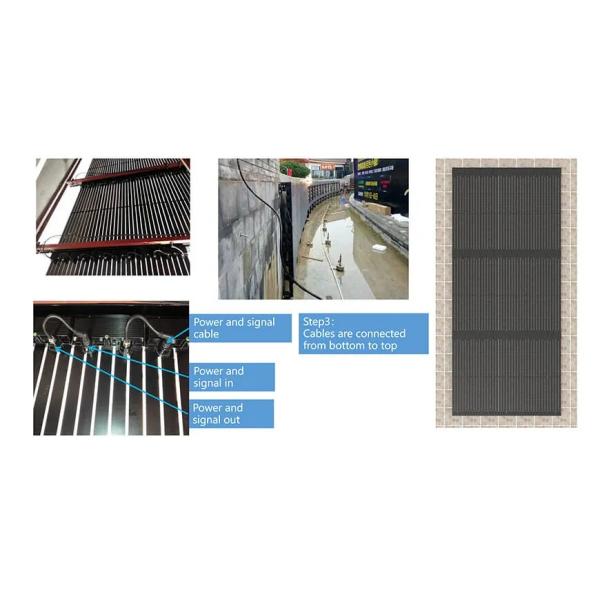

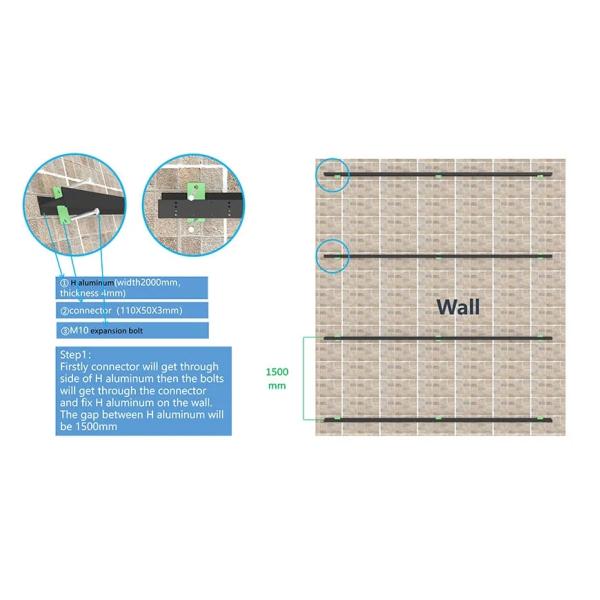

Install Situation

Outdoor LED Transparent Screen , Advertising LED Building Curtain Display Full Color

Outdoor LED Transparent Screen , Advertising LED Building Curtain Display Full Color

Case

Outdoor LED Transparent Screen , Advertising LED Building Curtain Display Full Color

FAQ:

Q1: The warranty of your LED dispaly ?
A: We offer 2-3 year warranty for our different led display screen series, 100,000 hours life span for the led lamps, and lifetime technology support with 7/24 phone answering service if you have any problem with our led screen.


Q2: Whats your payment term? How long it takes to delivery?
A: We normally accept T/T and L/C,and other payment options is negotiable for your convenience. A 30% deposit is needed in advance, and the rest 70% be paid before delivery. Our average lead time is 15 days.


Q3: What's the controlling system?
A: Our standard controlling system for this model is Novastar. Also support other controlling system such as Linsn, etc.

Outdoor LED Transparent Screen , Advertising LED Building Curtain Display Full Color

Outdoor LED Transparent Screen , Advertising LED Building Curtain Display Full Color

Packaing and shipping

Outdoor LED Transparent Screen , Advertising LED Building Curtain Display Full Color

About Us

►Rich experience: established in 2005; familiar with technical and material about LED display.

►Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.


►Powerful R&D ability: excellent engineers are constantly developing new products and improving them.


►Good quality:All products have passed CE, ROHS, FCC certification.

►Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.


We guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime.
