P25mm Outdoor Curtain LED Display High Brightness Waterproof for Advertising
P25mm Outdoor Curtain LED Display High Brightness Waterproof for Advertising
P25mm Outdoor Curtain LED Display High Brightness Waterproof for Advertising
P25mm Outdoor Curtain LED Display High Brightness Waterproof for Advertising
P25mm Outdoor Curtain LED Display High Brightness Waterproof for Advertising
P25mm Outdoor Curtain LED Display High Brightness Waterproof for Advertising
P25mm Outdoor Curtain LED Display High Brightness Waterproof for Advertising
P25mm Outdoor Curtain LED Display High Brightness Waterproof for Advertising
Specifications
Brand Name :
Bako Vision
Model Number :
BOC
Certification :
CE.ETL.CCC.FCC.TUV
Place of Origin :
China
MOQ :
1 m2
Payment Terms :
L/C, T/T
Supply Ability :
8000 m2/moth
Delivery Time :
20 days
Packaging Details :
Wooden Case/ Flight Case
Material :
Aluminum
IP Level :
67
Brightness :
>7500nits
Refresh Rate :
>3840Hz
Grey Scale :
16 Bit
Servicing :
Front and Back
Description

P25mm Outdoor Curtain LED Screen Display High Brightness Waterproof for Advertising

BOC SERIES

Specification

BOC-2525 BOC-2535 BOC-2550
Physical Pitch 25 mm 25 mm(H), 35 mm(V) 2 5 mm(H), 50 mm(V)
Pixel Configuration 1R1G1B 1R1G1B 1R1G1B
Pixel Density 1,600 pixels/m² 1,120 pixels/m² 800 pixels/m²
Unit Size (W x H)(mm) ≥1500 x 250 ≥1500 x 250 ≥1500 x 250
Physical Resolution of Unit ( H × V) 65 x 10 65 x 7 65 x 5
Panel Material Aluminum Aluminum Aluminum
Weight 15 kg/m² 10.6kg /m² 8.5kg /m²
Processing 16 bit 16 bit 16 bit
Colours 281 trillion 281 trillion 281 trillion
Contrast Ratio 2,000 : 1 2,000 : 1 2,000 : 1
Average Power Consumption 150 w/m² 115 w/m² 85 w/m²
Max Power Consumption 450 w/m² 345 w/m² 255 w/m²
Brightness ≥7,500 nits ≥6,500 nits ≥5,000 nits
Refresh Rate ≥3,840 Hz ≥3,840 Hz ≥3,840 Hz
Horizontal Viewing Angle 160° 160° 160°
Vertical Viewing angle 140° 140° 140°
Expected Lifetime 100,000 Hrs 100,000 Hrs 100,000 Hrs
Servicing Front / Rear Front / Rear Front / Rear
IP Rating (Front/Rear) IP 67 IP 67 IP 67
Operating Temp/Humidity -30°- 60° C/10% - 90% -30°- 60° C/10% - 90% -30°- 60° C/10% - 90%
Storage Temp/Humidity -40° - 85°C/10% - 95% -40° - 85°C/10% - 95% -40° - 85°C/10% - 95%
Certification CE,ETL,CCC,FCC,TUV CE,ETL,CCC,FCC,TUV CE,ETL,CCC,FCC,TUV

Feature

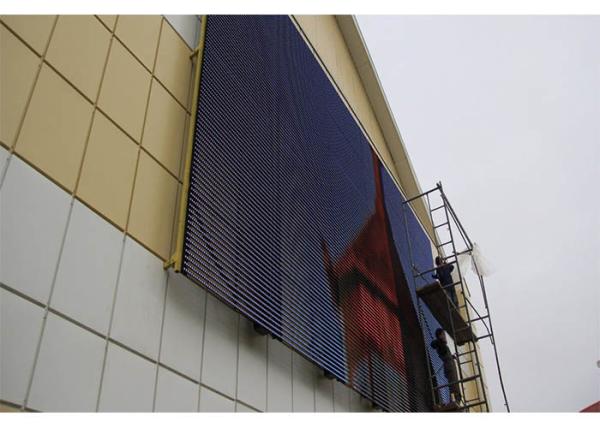

High Transparency and High Brightness

20%-80% transparent rate, see through, suitable for glass wall mounting

P25mm Outdoor Curtain LED Display High Brightness Waterproof for Advertising

Ultra Light Weight and Slim

10-18 kg/m² gross weight.

Easy to Install and save installation space

P25mm Outdoor Curtain LED Display High Brightness Waterproof for Advertising

Various Installation Method


P25mm Outdoor Curtain LED Display High Brightness Waterproof for Advertising

COMPANY INTRODUCTION

Shenzhen BAKO VISION Technology Co.,Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding end professional customers among domestic and overseas markets.
Do not be hesitate to contact us if you have any quiry!

P25mm Outdoor Curtain LED Display High Brightness Waterproof for Advertising

FAQ

Q1. Do you provide samples?is it free or extra?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.

Q3. Do you offer guarantee for the products?

A: Yes,we offer 2-5 years warranty to our products.
