Full Color High Resolution LED Display Screen Windows Glass 60-80% Transparency
Full Color High Resolution LED Display Screen Windows Glass 60-80% Transparency
Full Color High Resolution LED Display Screen Windows Glass 60-80% Transparency
Full Color High Resolution LED Display Screen Windows Glass 60-80% Transparency
Full Color High Resolution LED Display Screen Windows Glass 60-80% Transparency
Full Color High Resolution LED Display Screen Windows Glass 60-80% Transparency
Full Color High Resolution LED Display Screen Windows Glass 60-80% Transparency
Full Color High Resolution LED Display Screen Windows Glass 60-80% Transparency
Specifications
Brand Name :
Bako Vision
Model Number :
BG
Certification :
CCC,CE,ETL,FCC
Place of Origin :
CHINA
MOQ :
1 Sqm
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
6000 Sqm/Month
Delivery Time :
20 days
Packaging Details :
Wooden case/ Flight Case
Panel Dimensions (Wxh)(mm) :
1000*500
Contrast Ratio :
2000:1
Viewing Angle :
V:140 Degree / H: 160 Degree
Operating Temp/ Humidity :
-30ºC-60ºC/10%-90%
Average Power :
240W/M²
Driving IC :
MY9866 QFN
Transparency :
60%-80%
Serving :
Front
Expected Lifetime :
>=100,000hrs
Brightness :
5500cd/m²
Description

Windows Glass 60-80% Transparency Full Color High Resolution LED Display Screen

The Features of Glass transparancy Led:


1. High Stability: Use high quality components and parts and sophisticated processing technique. Products with stable quality , high reliability and long life span.

2.High Transparent Effect

It features transparent effect up to 80% keeping the perspective function of glass. The higher transparency effect allows you to see LED light on the glass without any effect to surround of glass wall.

3. Integrated Design, Fast Installation

The thin size and ultra-lightweight modules makes it easy to carry, transport and install. You hardly need any specialized tools or skills to install it. Everything is inbuilt, and it can be installed within a few minutes using simple screw-driver.

Full Color High Resolution LED Display Screen Windows Glass 60-80% Transparency

4. Advanced control system

Prefer adopting advanced and stable Nova Star control system, with the best led display control system, the most advanced pixel-level led display calibration system and the most professional software for specialized applications.

5.Non-steel structure

14KG/m² lighter on structure per square meter since no steel needed when installing on the surface of building.

Specifications

BG-2.5-7.8 BG-10 BG-16
Physical Pitch 2.5*7.8mm 10*10.4mm 16 mm
Pixel Configuration SMD1921 SMD1921 SMD1921
Pixel Density 50,688pixels/m² 9216 pixels/m² 3906pixels/m²
Module Dimensions(W*H)(mm) 500*125 500*125 480*320
Panel Dimensions(mm) 1000*500 1000*500 960*640
Physical Resolution of Module(W*H) 200*16 48*12 30*20
Physical Resolution of Panel(W*H) 400*64 96*18 60*40
Weight(kg/m²) <14 kg/m² <14 kg/m² <14kg/m²
Colors 281 trillion 281 trillion 281 trillion
Processing 16 bit 16 bit 16 bit
Contrast Ratio 2000:1 2000:1/ 2000:1
IP Rating IP30 IP30 IP30
Viewing Angle H:160°,V:140° H:160°,V:140° H:160°,V:140°
Panel Material Aluminum Aluminum Aluminum
Expected Lifetime 100,000Hrs 100,000Hrs 100,000 Hrs
Operating Temp/Humidity

10ºC-60ºC/

10%-60%

-10ºC-60ºC/

10%-60%

-10ºC-60ºC/

10%-60%
Storage Temp/Humidity

-30ºC-60ºC/

10%-60%

-30ºC-60ºC/

10%-60%

-30ºC-60ºC/

10%-60%
Servicing Rear Rear Rear
Refresh Rate >1920 Hz >1920 Hz >1920 Hz
Avg/Max. Power Consumption 240/700W/m² 140/400 W/m² 218/650W/m²
Brightness 1000-4200 nits 1000-4200 nits >5,500 nits
Scan 1/11 1/2 or 1/4 Scan Static Scan

Product Details

High Refresh Rate.

MBI 5124 Driver IC together with full receiving card loading. Make Bako Vision Led Display come with a high refresh rate. Provide a good image and a better advertise result when play Video.


Full Color High Resolution LED Display Screen Windows Glass 60-80% Transparency

Low power consumption

Power consumption would reduce half compared with others due to bright LED light with high conversion rate ,and the PFC functional power supply.

Full Color High Resolution LED Display Screen Windows Glass 60-80% Transparency

Control System

Full Color High Resolution LED Display Screen Windows Glass 60-80% Transparency

Produce line

Full Color High Resolution LED Display Screen Windows Glass 60-80% Transparency

Application

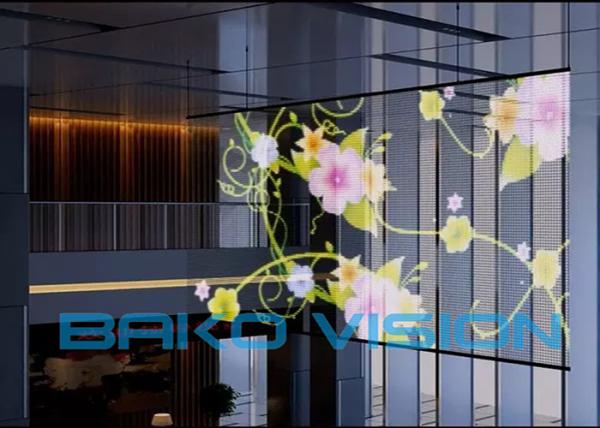

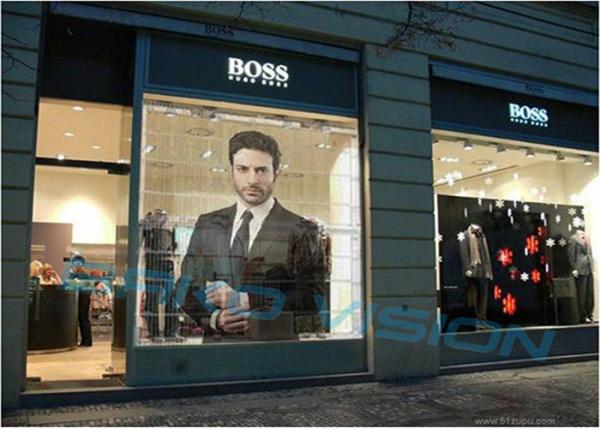

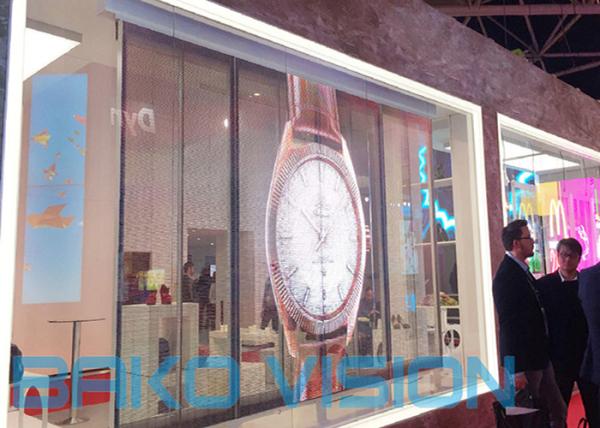

Widely use bank, shopping mall, theater, commercial stage, chain store, hotel, public building and landmark building etc.

Full Color High Resolution LED Display Screen Windows Glass 60-80% Transparency


About us

Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

Full Color High Resolution LED Display Screen Windows Glass 60-80% Transparency

Warranty


We guarantee all our displays, modules, parts for TWO years. During this time, we will replace or amend all our goods for free if there is something wrong with them.We provide lifetime maintenance service and only charge for the cost of raw materials needed. We provide technology training for free, which contains operation and maintenance training of the LED screens in the factory.We also provide operation manual software, test report and so on. Any associated CAD drawings on how to fix up the display. And some other expert suggestions will be provided for free.
