Indoor Glass Window Led Display Ultra Thin Hidden Cable Design LED Monitor
Indoor Glass Window Led Display Ultra Thin Hidden Cable Design LED Monitor
Indoor Glass Window Led Display Ultra Thin Hidden Cable Design LED Monitor
Indoor Glass Window Led Display Ultra Thin Hidden Cable Design LED Monitor
Indoor Glass Window Led Display Ultra Thin Hidden Cable Design LED Monitor
Indoor Glass Window Led Display Ultra Thin Hidden Cable Design LED Monitor
Indoor Glass Window Led Display Ultra Thin Hidden Cable Design LED Monitor
Indoor Glass Window Led Display Ultra Thin Hidden Cable Design LED Monitor
Specifications
Brand Name :
Bako Vision
Model Number :
BG
Certification :
CCC,CE,ETL,FCC
Place of Origin :
CHINA
MOQ :
1 Sqm
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
6000 Sqm/Month
Delivery Time :
20 days
Packaging Details :
Wooden case/ Flight Case
Panel Dimensions (Wxh)(mm) :
1000*500
Pixel Configuration :
SMD1921
Viewing Angle :
V:140 Degree / H: 160 Degree
Operating Temp/ Humidity :
-30ºC-60ºC/10%-90%
Average Power :
240W/M²
Driving IC :
MY9866 QFN
Transparency :
60%-80%
Single Panel Weight :
8.5KG
Input Voltage :
AC220V/50Hz ; AC110V/60Hz
Brightness :
5500cd/m²
Description

Ultra Thin Hidden Cable Design LED Monitor Indoor Transparent Glass Display

Description

Transparent LED screens provide an effective and compelling alternative to large format LED screens. The images on the screen are created by programming the LED to work together. By displaying the relevant pixel colors on the mapped LED, the lights are brought together to create the image. When integrated into a glass curtain wall, this effect is particularly powerful, allowing designers to provide screen solutions for retail buildings, with a focus on glass buildings without affecting the overall design.

Video wall produce Features

1.High Adaptability

Resistant to bad environment such as low temperature, high temperature and moist condition.

2.High Transparency

With transparency of 20% to 80% , making the glass wall screen into vivid video wall, audience could get perfect video effect through the screen.

3. High Brightness, Better Quality

The high brightness and high definition features of the Transparent LED Screen ensures great quality pictures - making it a perfect fit for stage, banks, glass wall, promotion, station, stadium and other indoor places.

Indoor Glass Window Led Display Ultra Thin Hidden Cable Design LED Monitor

4.Super-wide view angle

140°view angle and consistent display effect at multi direction , no mosaic phenomenon.

5. Integrated Design, Fast Installation

The thin size and ultra-lightweight modules makes it easy to carry, transport and install. You hardly need any specialized tools or skills to install it. Everything is inbuilt, and it can be installed within a few minutes using simple screw-driver.

Specifications

BG-2.5-7.8 BG-3.9-7.8 BG-5-8 BG-10
Physical Pitch 2.5x7.8mm 3.9x7.8mm 5x8mm 10.4x10.4mm
Pixel Configuration SMD1921 SMD1921 SMD1921 SMD1921
Pixel Density 50,688pixels/m² 32,256pixels/m² 25,000pixels/m² 9216pixels/m²
Module Dimensions(W*H)(mm) 500x125 500x125 480x320 500x125
Panel Dimensions(mm) 1000x500 1000x500 960x640 1000x500
Physical Resolution of Module(W*H) 200x16 128x16 96x40 48x12
Physical Resolution of Panel(W*H) 400x64 256x64 192x80 96x48
Weight(kg/m²) <14kg/m² <14kg/m² <14kg/m² <14kg/m²
Colors 281 trillion 281 trillion 281 trillion 281 trillion
Processing 16 bit 16 bit 16 bit 16 bit
Contrast Ratio 2000:1 2000:1/ 2000:1 2000:1
IP Rating IP30 IP30 IP30 IP30
Viewing Angle H:160°,V:140° H:160°,V:140° H:160°,V:140° H:160°,V:140°
Panel Material Aluminum Aluminum Aluminum Aluminum
Expected Lifetime 100,000Hrs 100,000Hrs 100,000 Hrs 100,000 Hrs
Operating Temp/Humidity

10ºC-60ºC/

10%-60%

-10ºC-60ºC/

10%-60%

-10ºC-60ºC/

10%-60%

-10ºC-60ºC/

10%-60%
Storage Temp/Humidity

-30ºC-60ºC/

10%-60%

-30ºC-60ºC/

10%-60%

-30ºC-60ºC/

10%-60%

-30ºC-60ºC/

10%-60%
Servicing Rear Rear Rear Rear
Refresh Rate >1920 Hz >1920 Hz >1920 Hz >1920 Hz
Avg/Max. Power Consumption 240/700W/m² 180 /560 W/m² 203/670 W/m² 140/400W/m²
Brightness 1000-4200 nits 1000-4200 nits >5,000 nits 1000-4200 nits
Scan 1/11 1/7 1/6 1/2 or 1/4


Product Details


Front Maintenance

Can be fully achieved the front maintenance

Installation and disassembly.

Fast lock systems ensure fast installation,

Saving cost.


Indoor Glass Window Led Display Ultra Thin Hidden Cable Design LED Monitor


Good flat and stable quanlity

Flat: Good flat for elegant looking.

Indoor Glass Window Led Display Ultra Thin Hidden Cable Design LED Monitor
Indoor Glass Window Led Display Ultra Thin Hidden Cable Design LED Monitor

Control System

Indoor Glass Window Led Display Ultra Thin Hidden Cable Design LED Monitor

Application

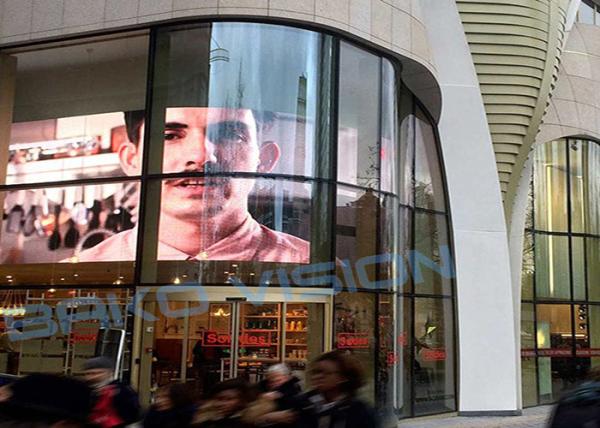

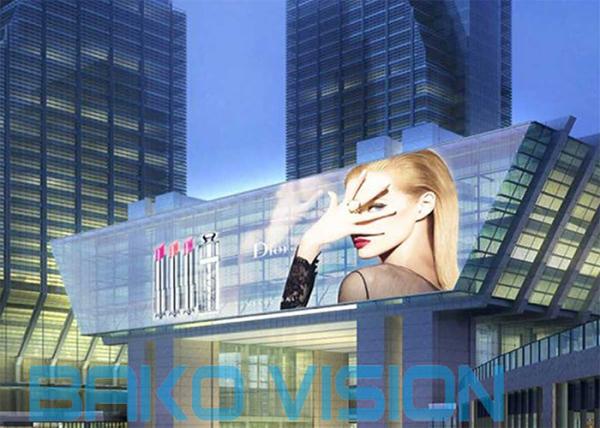

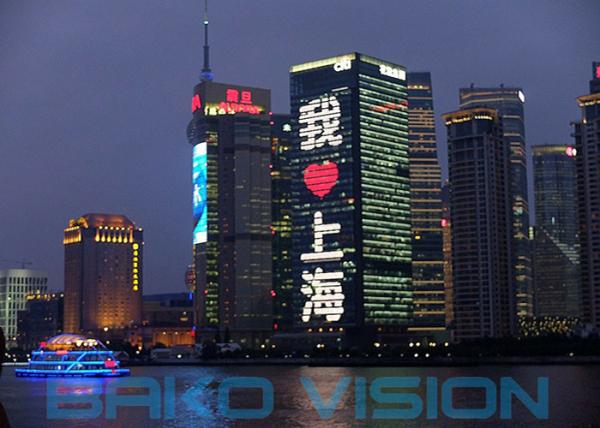

Widely use bank, shopping mall, theater, commercial stage, chain store, hotel, public building and landmark building etc.

Indoor Glass Window Led Display Ultra Thin Hidden Cable Design LED Monitor


About us

Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

Indoor Glass Window Led Display Ultra Thin Hidden Cable Design LED Monitor

Pre-producing:

  1. Get complete requirements of clients.
  2. To do a thorough analysis.
  3. Offer a most reasonable and scientific solution.
  4. Customized design.
In producing:
  1. Producing progress updating for clients
  2. Particular Installation CAD and Design Diagram for clients.
After service:
  1. 2 years free maintenance
  2. 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers
  3. Free training for customers in factory
  4. Local Partner Installation Service.
