Specifications
Brand Name :
Bako Vision
Model Number :
BT
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1 Square Meter
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000sqm/ Month
Delivery Time :
10~15 wds
Packaging Details :
Plywood case / Flight Case
Brightness :
3500-7000 nits
IP Rating :
IP65 Waterproof
Control :
3G, 4G, WIFI, GPS, USB, cable transmission
Refresh Rate :
1920 Hz
Servicing :
Back Maintenance
Application :
Digital Moving Text, Graphics, Commercial Ads
Description

3500~7000 Nits Mobile Taxi LED Screen Waterproof Digital Advertising Billboard

Description:

1. High Brightness

Taxi top led display enable to reach 7000nits by using high intesity outdoor LEDs to make sure brighter and clear enough under the direct sunlight.

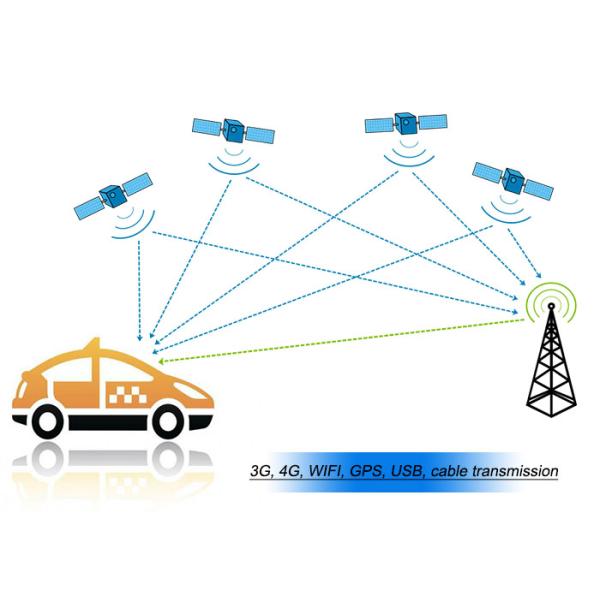

2. Remote control anytime, anywhere

Advertising Management System;

3G/4G/WIFI/USB control;

GPS real-time monitoring.

3. Stable

All weatherproof, good heat dissipation, anti-bump for different road conditions

4. Built-in Delay Protector

The Built-in delay protector prevents the screen from
over-temperature, over-current, over-voltage impacting
when the car starts

3500~7000 Nits Mobile LED Screen , Taxi LED Screen Waterproof Digital Advertising Billboard

3500~7000 Nits Mobile LED Screen , Taxi LED Screen Waterproof Digital Advertising Billboard

3500~7000 Nits Mobile LED Screen , Taxi LED Screen Waterproof Digital Advertising Billboard

Parameters:

BT-2 BT-3 BT-5
Physical Pitch 2.5 mm 3 mm 5 mm
Pixel Configuration SMD 2121 SMD 2121 SMD 2727
Pixel Density 160,000 pixels/m² 111,111 pixels/m² 40,000 pixels/m²
Module Dimensions (W × H) (mm) 160 × 160 192 × 196 160 × 160
Screen Size (mm) 960 × 320 768 × 288 960 × 320
Screen Resolution 384 × 128 256 × 96 192 × 64
Physical Resolution of Module (W × H) 64 × 64 64 × 32 32 × 32
Frame size (mm) 1,100 (L) x 410 (H),164 (bottom) / 99 (top) 820 ( L) x 390 (H),170(bottom) / 99 (top) 1,100 ( L) x 410 (H),164(bottom) / 99 (top)
Panel Material Aluminum Aluminum Aluminum
Screen Weight 26 kg 15 kg 23 kg
Gray Scale 16 bit 16 bit 16 bit
Colours 281 trillion 281 trillion 281 trillion
Contrast Ratio 4,000 : 1 4,000 : 1 2,000 : 1
Average Power Consumption 180 W/Set 80 W/Set 150 W/Set
Max Power Consumption 480 W/Set 250 W/Set 450 W/Set
Operating Temp/Humidity -40℃- 75℃ / 10% - 90% -40℃- 75℃ / 10% - 90% -40℃- 75℃ / 10% - 90%
Storage Temp/Humidity -30℃- 60℃ / 10% - 60% -30℃- 60℃ / 10% - 60% -30℃- 60℃ / 10% - 60%
Refresh Rate > 1,920 Hz > 1,920 Hz > 1,920 Hz
Brightness 5,000nits 3500nits 5,500nits
Driving Method 1/16 Scan 1/16 Scan 1/8 Scan
Horizontal Viewing Angle 160° 160° 160°
Vertical Viewing angle 140° 140° 140°
Expected Lifetime 100,000 Hrs 100,000 Hrs 100,000 Hrs
Servicing Back Back Back
IP Rating (Front/Rear) IP 65 IP 65 IP 65

3500~7000 Nits Mobile LED Screen , Taxi LED Screen Waterproof Digital Advertising Billboard

About Bako Vision:

LED Vision Technology Limited  , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.

BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.

3500~7000 Nits Mobile LED Screen , Taxi LED Screen Waterproof Digital Advertising Billboard

1) Aftersales service

Two years quality warranty with lifelong led display maintenance.


2) Free guarantee repair

Including labor and material: free for repair service in quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. Never exempt our responsibilities on product owned defects, modules, power supply, who set led display all repair.


3) Spare Parts and free CAD drawing

Necessary 2% spare parts are provided together with products to customers.


4) Free Technical Training

Integrative and normative technology training is available for free to technical personnel from customer, to ensure trainees to be skilled in regular operation of hardware and software of the products, and be able to estimate and solve small problems, synchronizatrion assitance for led screen.

5) Customer Investigation

Our after-sales team will telephone or e-mail user every month in warranty period to follow up the working condition of the products, and to discover problem and solve the problem instantly.


6) Software Upgrade

Lifelong maintenance of control system,
