Specifications
Brand Name :
Bakovison
Model Number :
P10
Certification :
CE RoHS UL
Place of Origin :
China
MOQ :
1sam
Price :
Negociation
Payment Terms :
L/C, D/P, T/T, Western Union
Delivery Time :
8200 sqm per month
Packaging Details :
wooden box or flight case
Usage :
Outdoor
Application :
Advertising/Shows/Live broadcast/Party/Sports match/Park/Square/Stage
Brightness :
>5500 nits
Viewing Angle(H/V) :
140°/140°
Temperature (operating/storage) :
AC 110/220±10% 50~60Hz
Humidity(operating/storage) :
10%~90%RH/10%~85%RH
MTBF :
≥1000 Hours
Pixel Failure :
<0.0003
Description

High Gray Scale Mobile LED Screen Moving Trailer Video Display Waterproof /Dustproof Panel

Features

1. Convenient: It designed as a fully integrated mobile LED video solution.The unit is engineered for rapid setup and teardown and features an even-ready control room.

2. Adaptability:No matter it is sunny or rainy, it does not affect the movement of the truck and the viewing effect of the audience.

3. High flatness precision: with die-cast aluminum technology, the tolerance of cabinet and module are controlled within 0.1mm, screen flatness and split joint gap are controlled within 0.5mm.

4. Movement:The product has good shockproof due to the mobility of the truck.For mobile trailer led display, Its main feature is high level anti-shake, this is very important for movable led screen.

5. Clear view:High refresh, high gray scale, high color contrast, and high quality picture effect.

6. Ingress protection:The ingress protection of the front is IP65 as well as the IP54 of the rear,which meets the standard of outdoor LED Display.

7. Customized:we can customize the screen size for any trailer model to accommodate the needs of individual customers at any event in as little time as possible.

Details

Pixel Pitch 8mm
Pixel Density 15625 px/m2
LED Type SMD3535
LED Configuration 1R1G1B
Cabinet Dimension 1280*960mm
Cabinet Resolution 160*120px
Cabinet Weight 79kg
Cabinet Material cold steel
Ingress Protection
(front/rear)
IP65/IP54
Brightness >5500nits
Viewing Angle(H/V) 140°/140°
Driving Method 1/4 Scan
Power Consumption(avg.) 250w/m2
Frame Refresh ≥ 60Hz
Data Refresh Rate ≥ 1500Hz
Gray Scale 16bit
Power Supply AC 110/220±10%
50~60Hz
Temperature
(operating/storage)
AC 110/220±10%
50~60Hz
Humidity(operating/storage) 10%~90%RH
10%~85%RH
MTBF ≥1000 Hours
Life Span ≥100000 Hours
Pixel Failure <0.0003


Images

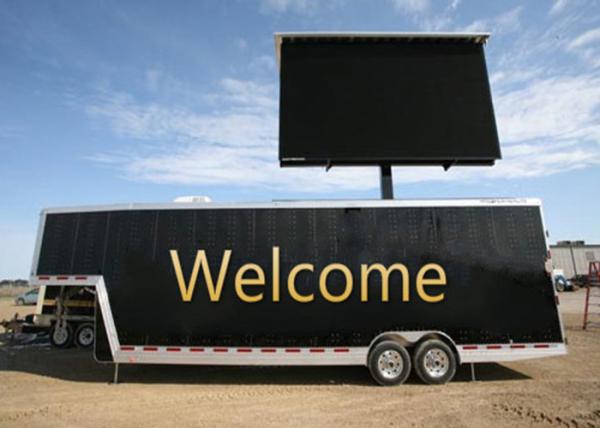

High Gray Scale Mobile LED Screen Trailer Video Display Customized Size

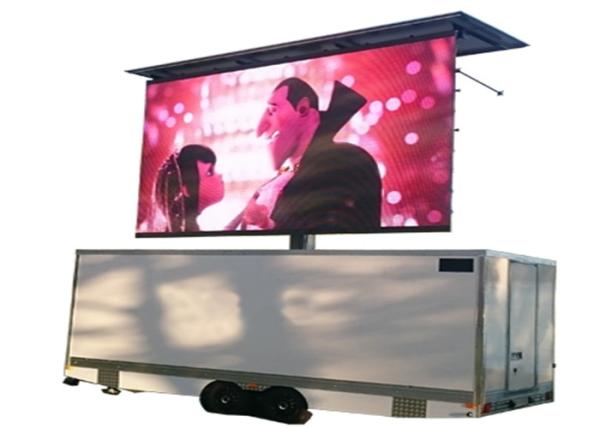

High Gray Scale Mobile LED Screen Trailer Video Display Customized Size

Advantages

1. High brightness and clearly display effect with easy use control system which allow you to operate easier.

2. High refresh, high gray scale, high color contrast, and high quality picture effect.

3. A features of it is the wide audience range from one place to another due to the mobility of trucks.It also relieved the district restrictions,attract more people to watch.

4. Wide viewing angle (140° in horizontal and 140° in vertical).

5. 100% QC inspection before Shipment. Module surface flatness ± 0.5mm, the entire screen has good flatness

Services

We can offer service for customized products and can provide onsite installation and testing service.

We provide 2 years warranty and free repair service for our products sold.

We also provide free training to customers' engineer.

Tips

Payment:We accept the L/C,T/T,Western Union.

Shipment: We will ship within 20-25 working days after you placed the order, but the specific delivered time will be affected by the shipping company and shipping details.

Package:We usually pack the product in a wooden box or flight case.
