Specifications
Brand Name :
Bako Vision
Model Number :
BOT
Certification :
CE RoHs CCC EMC
Place of Origin :
China
MOQ :
1 sqm
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000m2 per month
Delivery Time :
25 working days
Packaging Details :
Flight Case/ Plywood Case
Module Quantity/Panel :
4PCS
Pixel Density/Module :
1152 Dots
Panel Dimension :
1000 X 500mm
Panel Resolution :
192 X 48
Brightness :
5500CD/M2
Viewing Angle :
140(H), 120(V)
Screen dimension :
Customized
Tube chip color :
Full Color
Usage :
Outdoor
Display function :
Video,Graphics,Animation,pictures,text
Pixels :
10mm
Warranty :
2 Years
Life span :
100000hours
Application :
Live Events Led Display,Outdoor,outdoor building surface
Color :
RGB
Refresh rate :
1920Hz
Pixel pitch :
10mm
Viewing angle :
140 degree /140 degree
Description

High Brightness Billboard P10 Outdoor Transparent LED Display Screen for Glass Video Wall14-BG-Tia.pdf

Outdoor transparent led display features:
High guarantee for waterproof ability.
Highbrightness for outdoor daytime use.
Perferct choice for Mall/Skyscraper outdoor window advertising tool!

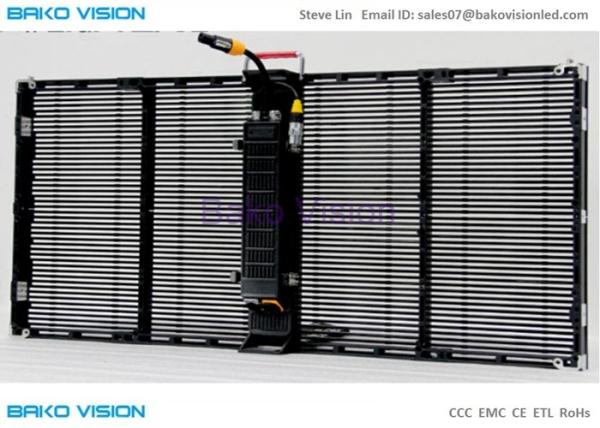

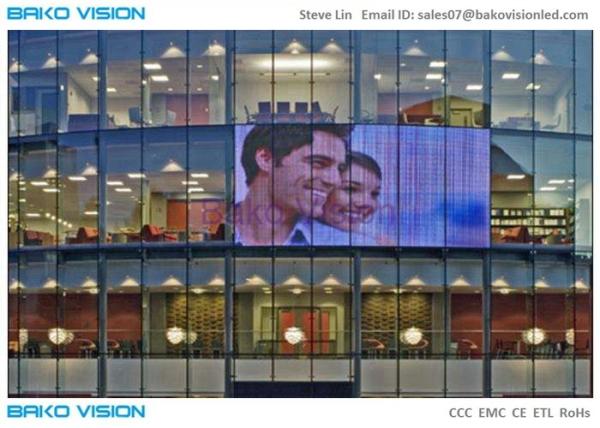

Outdoor transparent led display case and workshop:
High Brightness Billboard Transparent LED Screens P10 IP65 For Glass Video WallHigh Brightness Billboard Transparent LED Screens P10 IP65 For Glass Video WallHigh Brightness Billboard Transparent LED Screens P10 IP65 For Glass Video Wall

Outdoor transparent led display specification:

Model P-10.42
Pixel Pitch 10.42mm
Scan Method 1/2 scan
Driving IC MY9866 QFN
Module Dimension 500x250mm
Module Resolution 48x24
Pixel Density/Module 1152Dots
Panel Dimension 1000x500mm
Panel Resolution 96×48
Module Quantity/Panel 4pcs
Pixel Density 9,216 Dots/M2
Material Die-casting Aluminum
Single Panel Weight 8KG
Brightness 5500cd/M2
Viewing Angle 140°(H), 120°(V)
Best Viewing Distance ≥10m
Gray Scale 16 bit
Colours 281 trillion
Refresh Rate ≥3840Hz
refresh frame frequency 60Hz
IP Rating IP65
Input Voltage AC220V/50Hz ; AC110V/60Hz


Our advantage:

Rich experience: established in 2005; familiar with technical and material about LED display.
Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.
Powerful R&D ability: excellent engineers are constantly developing new products and improving them.
Good quality: all products have passed CE, ROHS, FCC certification.
Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.
Warranty: we guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime.

FAQ

Q1. Could I get a sample order of led display?
A: Yes, welcome to your sample order to check the quality.

Q2: Could we print our own logo on led display products?
A: Of course. Please let us know all the details soon before production.

Q3: Do you offer guarantee for the led display products?
A: Yes, we offer one year warranty for our products.

Q4: Whether to provide technical training (installation training and use training)?
A: Yes, we offer full service, Including pre-sale, sale, after-sales service, you can rest assured to buy.
