Customerized P10 Transparent led screens with Nationstar SMD1921
Customerized P10 Transparent led screens with Nationstar SMD1921
Customerized P10 Transparent led screens with Nationstar SMD1921
Customerized P10 Transparent led screens with Nationstar SMD1921
Customerized P10 Transparent led screens with Nationstar SMD1921
Customerized P10 Transparent led screens with Nationstar SMD1921
Customerized P10 Transparent led screens with Nationstar SMD1921
Customerized P10 Transparent led screens with Nationstar SMD1921
Specifications
Brand Name :
Bako Vision
Model Number :
P10
Certification :
CCC,CE,ETL,RoHS,FCC
Place of Origin :
China
MOQ :
1 m²
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000m²/Year
Delivery Time :
25 Days
Packaging Details :
Flight case/ Plywood case
Price :
Negotiable
Material :
Aluminum
Light :
Nationstar
IP Rating :
IP30
Transparent Rate :
20%-80% transparent rate
Warranty :
2 Years
Brightness :
more than 5500nits
Description

Customerized P10 Transparent led screens with Nationstar SMD1921

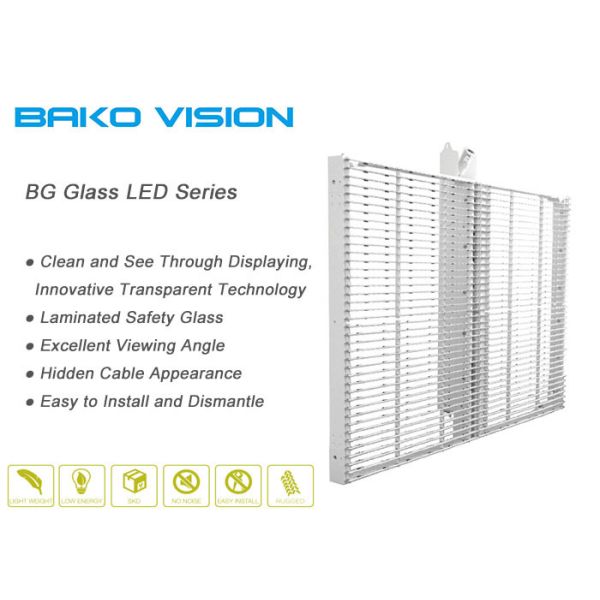

P10 Transparent led screens desription

Transparent and clean
Laminated safety glass
Excellent view angle
Hidden cable appearance
Easy to install and dismantle



P10 Transparent led screens parameter

　 BG-10
Physical Pitch 10.4x10.4mm
Pixel Configuration SMD1921
Pixel Density 9216pixels/m²
Module Dimensions (WxH)(mm) 500x125
Panel Dimensions (WxH)(mm) 1000x500
NO. of Modules Per Panel(WxH) 2x4
Physical Resolution of Module(WxH) 48x12
Physical Resolution of Panel(WxH) 96x48
Panel Material Aluminum
Single Cabinet Weight <14kg/m²
Gray Scale 16bit
Colours 281 trillion
Contrast Ratio 2000:01:00
Average Power Consumption 140W/m²
Max. Power Consumption 400W/m²
Operating Temp/Humidity -10ºC-60ºC/ 10%-60%
Storage Temp/Humidity -30ºC-60ºC/ 10%-60%
Refresh Rate >1920Hz
Brightness 1000~4200 nits
Horizontal Viewing Angle 160°
Vertical Viewing Angle 140°
Expected Lifetime 100,000Hrs
IP Rating(Front/Rear) IP30
Servicing Rear
Scan Method 1/2 or 1/4 Scan

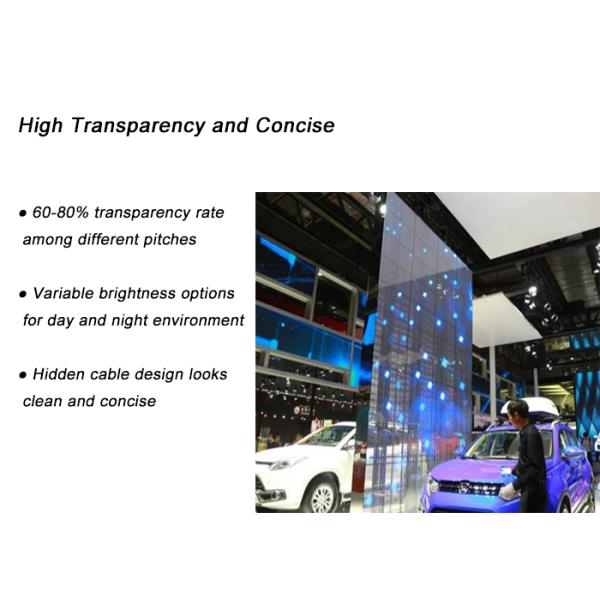

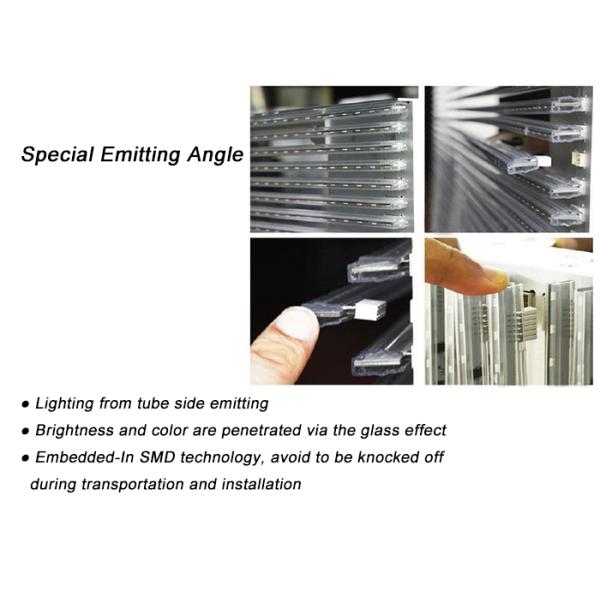

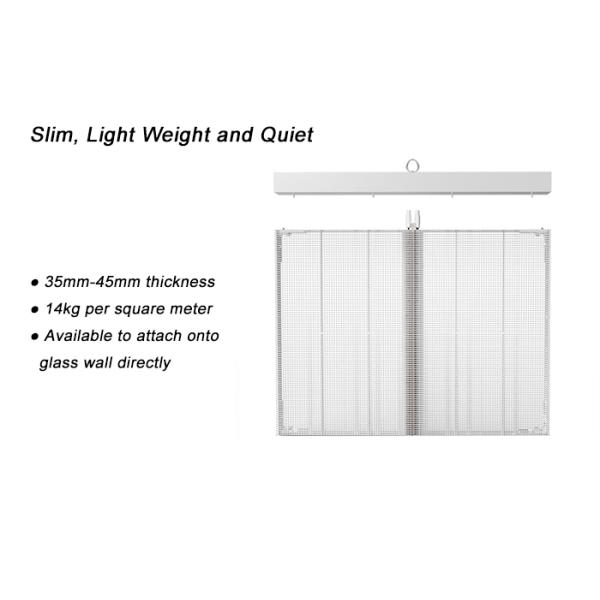

P10 Transparent led screens feature:



P10 Transparent led screens Customerized P10 Transparent led screens with Nationstar SMD1921Customerized P10 Transparent led screens with Nationstar SMD1921Customerized P10 Transparent led screens with Nationstar SMD1921

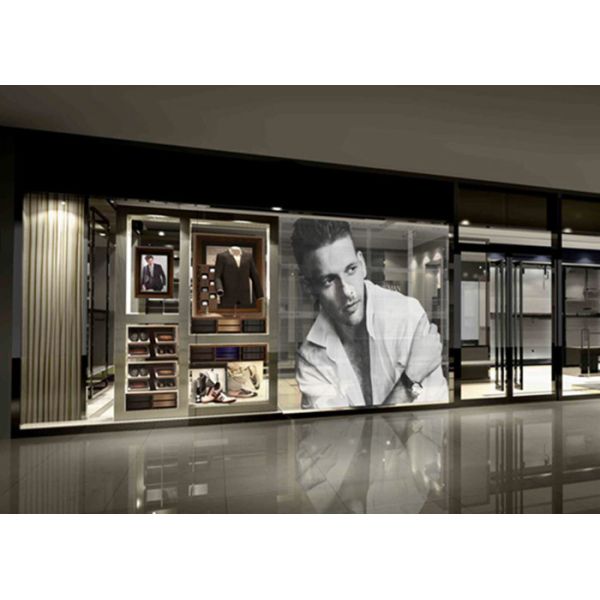

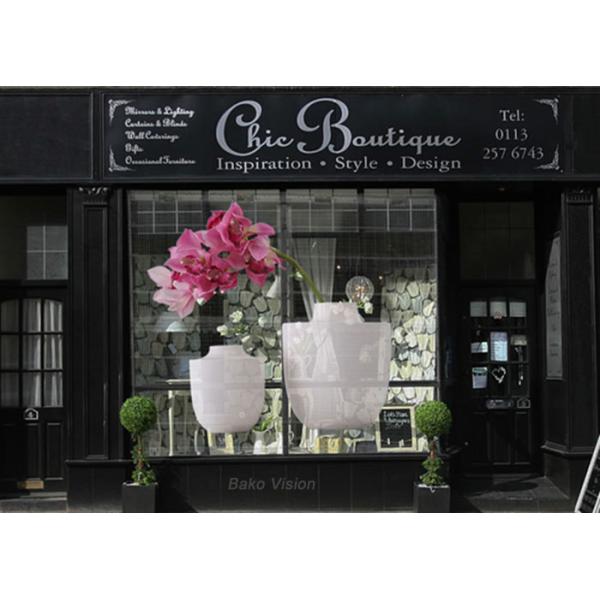

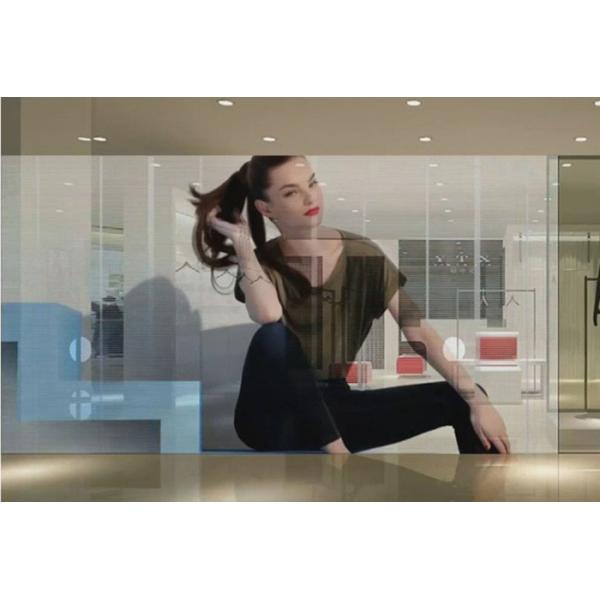

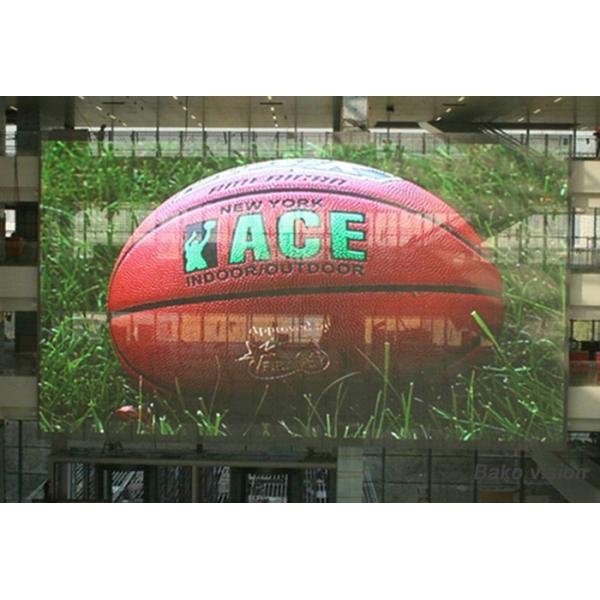

Cases:


Customerized P10 Transparent led screens with Nationstar SMD1921

Customerized P10 Transparent led screens with Nationstar SMD1921

Customerized P10 Transparent led screens with Nationstar SMD1921

Customerized P10 Transparent led screens with Nationstar SMD1921

Customerized P10 Transparent led screens with Nationstar SMD1921

Customerized P10 Transparent led screens with Nationstar SMD1921
