Specifications
Physical Pitch :
31.25mm
Pannel Material :
Aluminum
IP Rating(Front/Rear) :
IP67
Refresh Rate :
>3840Hz
Brightness :
>6500nits
Average Power Consumption :
107W/㎡
Brand Name :
Bakovision
Model Number :
BOC Series
Certification :
CE ETL FCC CCC
Place of Origin :
China
MOQ :
1 sqm
Price :
$560 per sqm
Payment Terms :
L/C, T/T, Western Union, D/P
Supply Ability :
10,000 sqm/month
Delivery Time :
15 days
Packaging Details :
Wooden case or flight case
Description

High Transparency Lower Consumption Outdoor Curtain LED Screens 6500 Nits

Transparent LED Screen Quick Details:

1, Pixel Pitch: 31.25 mm.
2, SMD LEDs, Wide viewing angle: 160°/ 140°
3, RGB full color: 281trillions.
4, Digital process: 16bits.
5, Recommended minimum viewing distance: 40m.

Transparent LED Screen Features

  • High refresh rate ≥3840Hz.
  • Long service time. Its life span is more than 100000hrs.
  • Ultra lightweight and slim, only 8.5-15kg/square meter gross weight.
  • Steel frame is canceled during installation to ensure elegant appearance. In addition, both front and rear accessible for maintenance, so it is convenient for maintenance.
  • Wide viewing angle. 160° for horizontal, 140° for vertical.
  • High IP rating,IP67 can avoid most water and suitable in most status and area.complete waterproof for various weather conditions.
  • High Transparency that 20-80% transparency rate, see through. Suitable for glass wall mounting.
  • High Brightness, >6500 nits brightness
  • Slim Light Weight Transparent LED Screens Glass Curtain Lower Power Consumption

Transparent LED Screen Specification:

Physical Pitch 31.25mm
Pixel Configuration 1R1G1B
Pixel Density 1,024 pixels/m²
Unit Size(W×H) >1500×250mm
Physical Resolution of Unit(H×V) 48×8dots
Panel Material Aluminum
Single Cabinet Weight 15kg/m²
Grayscale 16bit
Colors 281trillion
Contrast Ratio 2000:1
Average Power Consumption 107W/㎡
Max Power Consumption 329W/㎡
Refresh Rate >3840Hz
Brightness >6500nits
Expected Lifetime 100,000Hrs
Servicing Front/Rear
IP Rating(Front/Rear) IP67

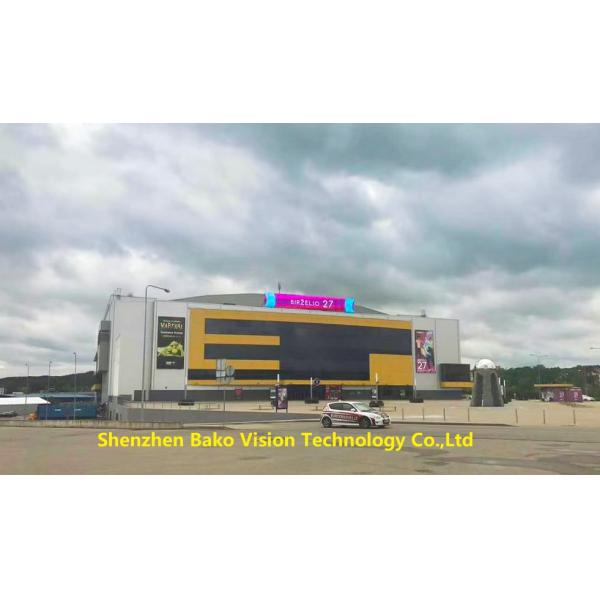

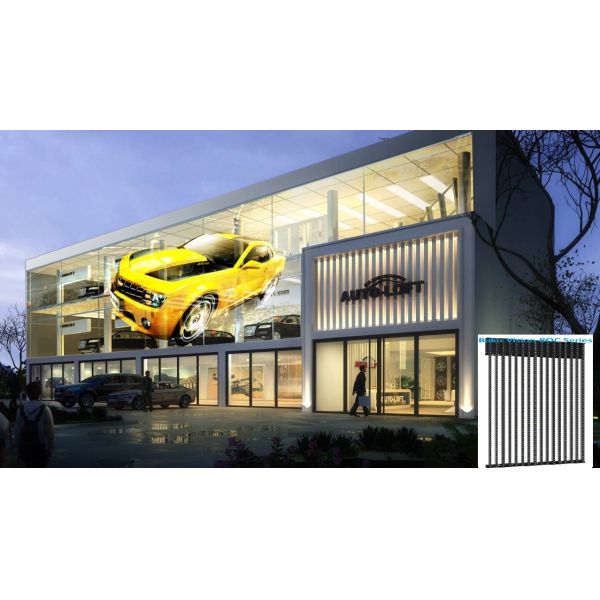

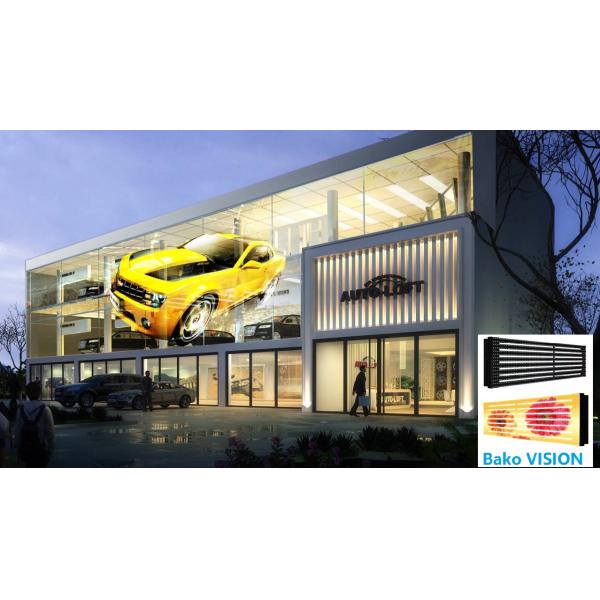

Transparent LED Screen Case
Slim Light Weight Transparent LED Screens Glass Curtain Lower Power Consumption

Slim Light Weight Transparent LED Screens Glass Curtain Lower Power Consumption

Why choose us?
1. Superior quality
We are the professional manufacturer of led display. All of our products are guaranteed quality. All our products are made of branded wicks and have undergone strict quality testing. We hope we can establish long-term business relations with our customers.

2. Attractive design
Our company are equipped with professional R&D department. We can provide customized design for our customers. We will also offer a most reasonable and scientific solution for our customers.

3. Professional consulting services
Our company has technical personnel who are specially responsible for customer service, who will provide product maintenance, product use and technical consultation for you at any time.

4. Perfect after-sales services

  • 2 years free maintenance.
  • 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers.
  • Can arrange our engineer to go to your place to support the installation and free training.
