Specifications
Brand Name :
Bakovision
Model Number :
BOC Series
Certification :
CE ETL FCC CCC
Place of Origin :
China
MOQ :
1 sqm
Price :
$650 per sqm
Payment Terms :
L/C, T/T, Western Union, D/P
Supply Ability :
10,000 sqm/month
Delivery Time :
15-25 days
Packaging Details :
Wooden case or flight case
Physical Pitch :
31.25mm/15.625mm
Expected Lifetime :
100,000Hrs
Pannel Material :
Aluminum
Servicing :
Front/Rear
IP Rating(Front/Rear) :
IP67
Refresh Rate :
>3840Hz
Brightness :
>6500nits
Average Power Consumption :
107W/㎡
Weight :
15kg/per square meter
Size of Cabinet :
500 x 1000mm
Description

High Transparency Lower Consumption Outdoor Curtain LED Screens 6500 Nits

Features:

1. Good visualization: Glass based design allows the light to pass through the glass without any influence to the building structure around..

2. Ultra-thin, and ultra-light. With only 8mm width and 15kg/m2 weight, the installed glass display takes very little space and without any increase in the glass wall loading weight.

3. Frameless structure Asram glass display can directly stick to the inside part of the glass wall by special designed glue, and after 10 seconds curing, it will connect with the glass wall firmly. Thus decrease the installation difficulty and cost greatly.

4. Easy and convenient maintenance. It can be maintained from inside, safer and more convenient.

5. Saving lighting costs of the whole building. Besides good advertising effect, Bako Vision LED glass display also helps lighting the glass wall, thus makes the glass wall more attractive and saving a lot lighting cost.

6. Wide use range. Wherever the glass wall is, Bako Vision glass LED display can be installed. Such as bank, supermarket, theater, business street, hotel, public civic buildings, and landmark buildings, etc.



Specification:

BOC 31/15
Model number BKV-31/15
Pixle Pitch 31.25 / 15.625mm
Size of Pixel DIP346
Pixel Configuration 1R1G1B
Size of Block Module 10mm x 1000mm
Resolution of Module 64 x 1
Module Power 12W
Pixel Density 2048 Dot/Sqm
Cabinet Material Alu Cabinet
Size of Cabinet (L*H/mm) 500 x 1000
Weight of Cabinet 7.5KG
Support Hanging or not Yes
Best Viewing Distance >15m
Average Power Consumption 200 W /Sqm
Max Power Consumption 600 W /Sqm
Brightness 10000 CD/Sqm
Transparency 70%
Scanning Method Static Scanning
Refresh Rate 3840 Hz
Best Viewing Angle ≤140 Degree
Colors >16.7M
Gray Scale 16bit
Color Temperature 6500K
Control Method Synchronization
Driving Device Constant current
Frame Frequency 60HZ
Brightness Control 256 grade
IP Rating (Front/Rear) IP 65
Expected Lifetime 100,000 Hrs
Refresh Rate ≥3,840 Hz
Horizontal Viewing Angle 120°
Vertical Viewing Angle 60°
Expected Lifetime 100,000 Hrs

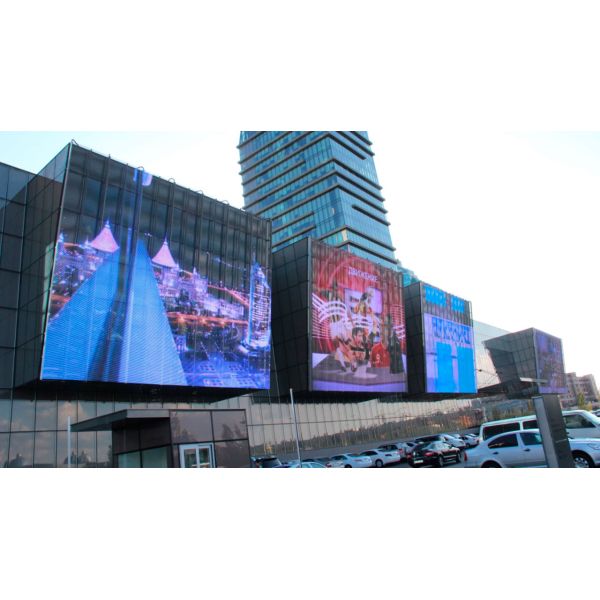

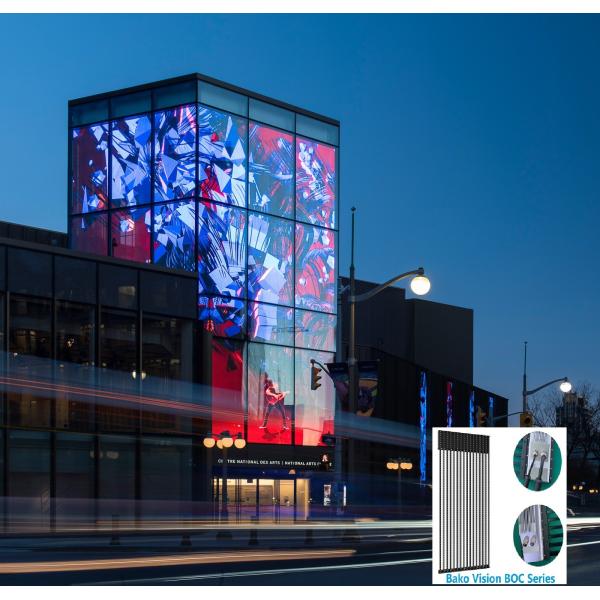

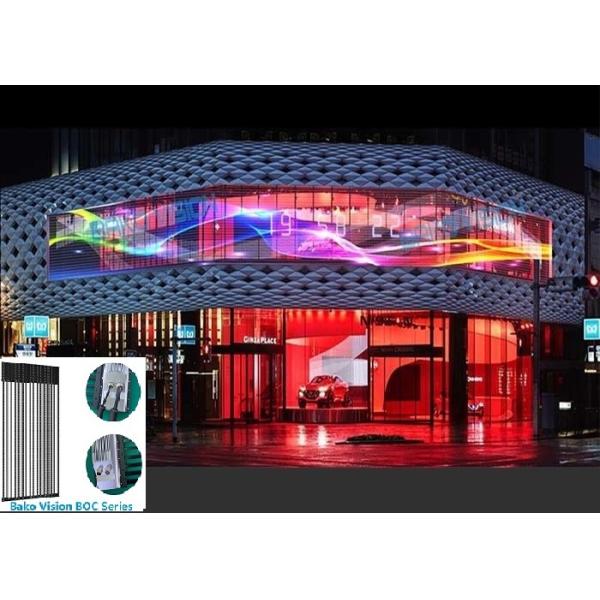

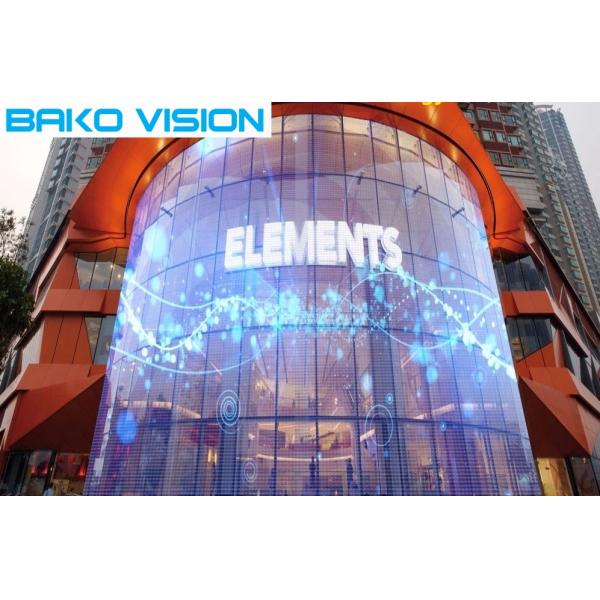

Case:

IP67 Waterproof Glass Wall Led Display , Aluminum See Through Led Screens 6500 Nits

IP67 Waterproof Glass Wall Led Display , Aluminum See Through Led Screens 6500 Nits

IP67 Waterproof Glass Wall Led Display , Aluminum See Through Led Screens 6500 Nits

IP67 Waterproof Glass Wall Led Display , Aluminum See Through Led Screens 6500 Nits

IP67 Waterproof Glass Wall Led Display , Aluminum See Through Led Screens 6500 Nits

IP67 Waterproof Glass Wall Led Display , Aluminum See Through Led Screens 6500 Nits

IP67 Waterproof Glass Wall Led Display , Aluminum See Through Led Screens 6500 Nits

IP67 Waterproof Glass Wall Led Display , Aluminum See Through Led Screens 6500 Nits

IP67 Waterproof Glass Wall Led Display , Aluminum See Through Led Screens 6500 Nits

IP67 Waterproof Glass Wall Led Display , Aluminum See Through Led Screens 6500 Nits

Why choose us?


1. Superior quality
We are the professional manufacturer of led display. All of our products are guaranteed quality. All our products are made of branded wicks and have undergone strict quality testing. We hope we can establish long-term business relations with our customers.

2. Attractive design
Our company are equipped with professional R&D department. We can provide customized design for our customers. We will also offer a most reasonable and scientific solution for our customers.

3. Professional consulting services
Our company has technical personnel who are specially responsible for customer service, who will provide product maintenance, product use and technical consultation for you at any time.

4. Perfect after-sales services

  • 2 years free maintenance.
  • 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers.
  • Can arrange our engineer to go to your place to support the installation and free training.
