Specifications
Brand Name :
Bako Vision
Model Number :
BG
Certification :
CCC,CE,ETL,FCC
Place of Origin :
China
MOQ :
1 sqm
Price :
700~1500 US$/sqm
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000sqm/ Month
Delivery Time :
15~20 wds
Packaging Details :
Plywood case / Flight Case
Module Size :
480mm x 320mm
Panel Size :
960mm x 640mm
Weight :
10kg/ sqm
Refresh Rate :
1920 Hz
Brightness :
5500 nits
Control System :
Linsn
Description

Ulta-thin Indoor Transparent LED Screens Flexible Advertising Video Wall

Features:

1. Good visualization

Transparency of the glass screen can up to 80%.It could be fixed behind the glass wall while does not affect inner viewing.

2. Ultra-thin, and ultra-light.

Thickness 35mm and 10 kg per sqm.Easy for transportation and installation.

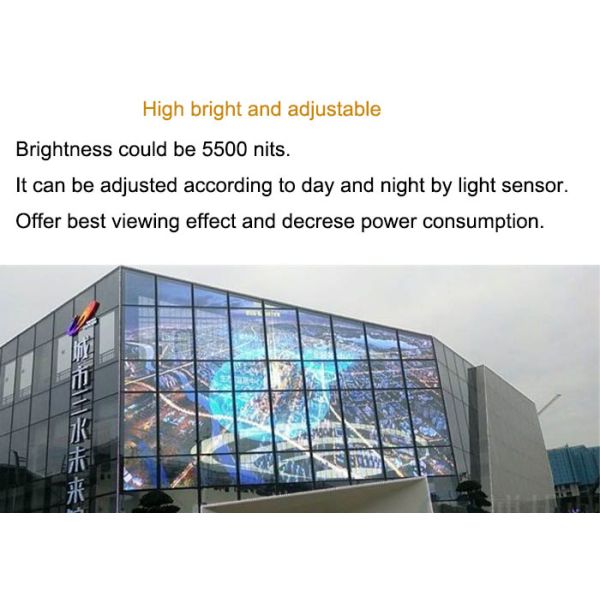

High definition and the brightness is over 5500 nits.Providing wonderful viewing feeling for audience.

3. Easy and convenient maintenance.

It can be maintained from inside, safer and more convenient,save labor cost.

4. Saving lighting costs of the whole building.

Besides good advertising effect, LED glass display also helps lighting the glass wall, thus makes the

glass wall more attractive and saving a lot lighting cost.

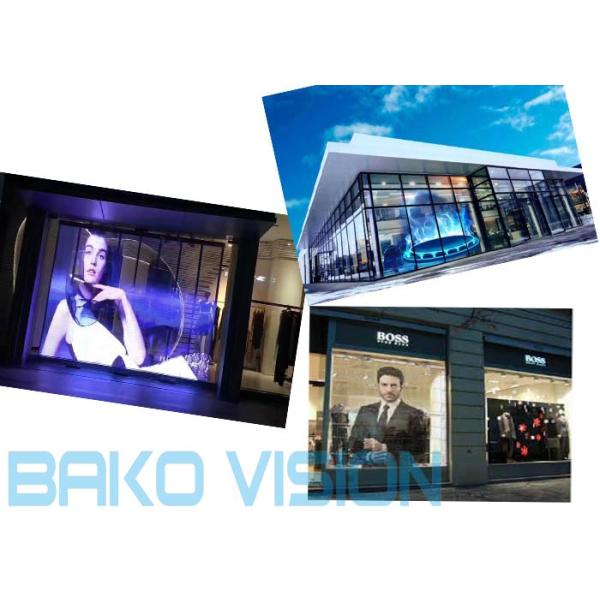

5. Wide use range.

Wherever the glass wall is, glass LED display can be installed. Such as bank, supermarket, theater,

business street, elevator, hotel and coffee house, etc.

Ulta-thin Indoor Transparent LED Screens Flexible Advertising Video Wall

Ulta-thin Indoor Transparent LED Screens Flexible Advertising Video Wall

Ulta-thin Indoor Transparent LED Screens Flexible Advertising Video Wall

Ulta-thin Indoor Transparent LED Screens Flexible Advertising Video Wall

Parameters:

Pixel Pitch 3.75x6.67mm 3.75x8mm 5x6.67mm 5x8mm
Pixel Configuration SMD 1921 SMD 1921 SMD 3528 SMD 3528
Pixel Density 39,900 pixls/m² 33,250 pixls/m² 30,000 pixls/m² 25,000 pixls/m²
Module Dimension 480 x 320 mm
Panel Dimention 960 x640 mm
Resolution of Module 128 x48 128 x 40 96 x 48 96 x 40
Panel Material Aluminum
Weight 11 kg/m² 10.2 kg/m² 10 kg/m² 9.5 kg/m²
Gray Scale 16 bits(281 trillion colors)
Conntrast Ratio 2000 : 1
Average ower Consumption 207 W/sqm 201 W/sqm 209 W/sqm 203 W/sqm
Max ower Consumption 690 W/sqm 670 W/sqm 696 W/sqm 670 W/sqm
Refresh Rate 1920 Hz
Brightness 5500 nits
Expected Lifetime 100,000 Hrs
IP Rating(front/rear) IP30
Servicing Rear

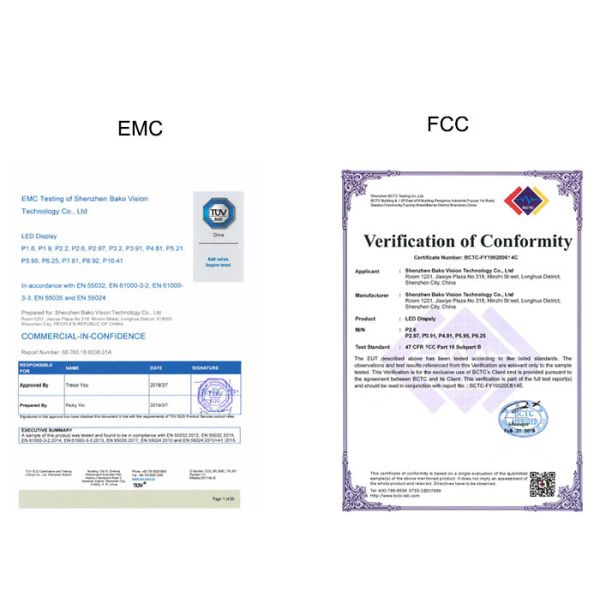

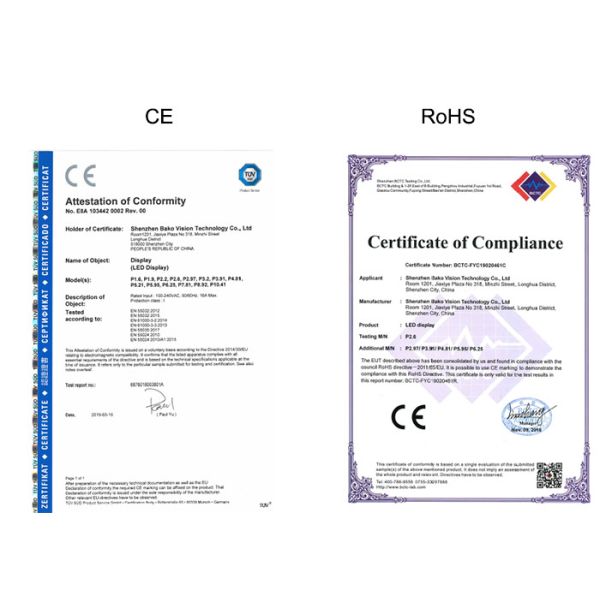

Certification

CCC,CE,ETL,FCC

Solutions:

Ulta-thin Indoor Transparent LED Screens Flexible Advertising Video Wall

About Our Company:

Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.

BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.

Ulta-thin Indoor Transparent LED Screens Flexible Advertising Video Wall

Ulta-thin Indoor Transparent LED Screens Flexible Advertising Video Wall
