Specifications
Brand Name :
Bako Vision
Model Number :
BT
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1 sqm
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000sqm/ Month
Delivery Time :
10~15 wds
Packaging Details :
Plywood case / Flight Case
Material :
Aluminum
Brightness :
5500nits
IP Rating :
IP65
Servicing :
Back
Operating Temp :
-40℃~75℃
Gray Scale :
16bit
Description

IP65 Outdoor Mobile LED Screen Taxi Top Advertising Signs 5500 nits Brightness

Features:

1. High Brightness

Taxi TOP LED display enable to reach 6500nit by using high intesity outdoor LEDs to make sure brighter and clear enough under the direct sunlight.

2.Easy Installation and Maintenance

Easy SD-Card installation

Easy replacement of module & power supply

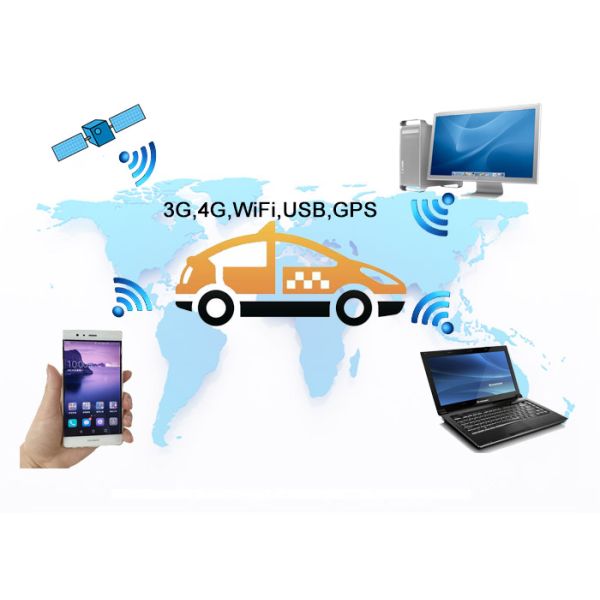

3. Smart Asynchornous Control

Location Precise Advertising

3G/4G/WIFI/USB control

GPS real-time monitoring

4. Intelligent Design on Power & Heat dissipation

Lower Power Consumption of whole sign, which enable to be running on any car embedded battery system.

5. IP65

Waterproof and dustproof ensure normal working of signs in outdoor envioronmrnt.

6. Build-in Delay Protector

Prevent the screen from over-temperature,over-current,over-voltage impacting when the car starts.

IP65 Outdoor Mobile LED Screen Taxi Top Advertising Signs 5500 nits Brightness

IP65 Outdoor Mobile LED Screen Taxi Top Advertising Signs 5500 nits Brightness

Parameters:

Pixel Pitch 2.5mm 3mm 5mm
Pixel Configuration SMD2121 SMD2121 SMD2727
Pixel Density 160,000pixels/m² 111,111pixels/m² 40,000pixels/m²
Moduel Demensions(mm) 160x160 192x196 160x160
Screen Size(mm) 960x320 768x288 960x320
Screen Resolution 384x128 256x96 192x64

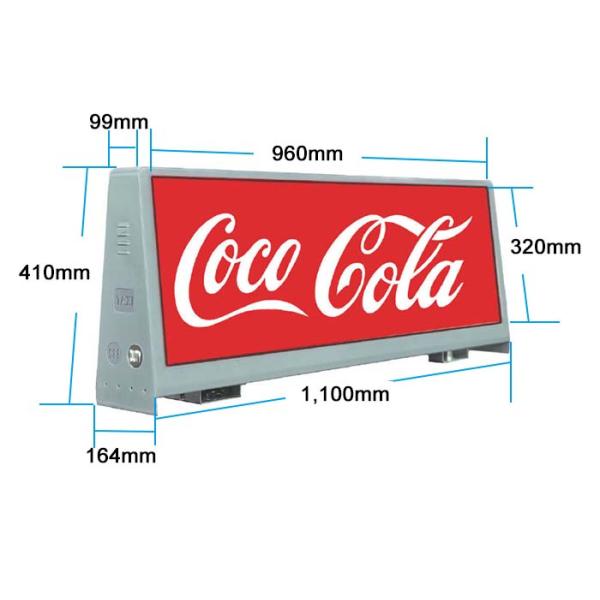

Frame Size(mm) 1,100(L)x410(H)164(bot)/99(top) 820(L)x390(H)170(bot)/99(top) 1,100(L)x410(H)164(bot)/99(top)
Material Aluminum
Grey Level 16bit
Screen Weight 26kg 15kg 23kg
Contrast Ratio 4000 : 1 4000 : 1 2000 : 1
Brightness 5000nits 3500nits 5500nits
Refresh Rate 1920Hz
Average Power Consumption 180W/set 80W/set 150W/set
Max Power Consumption 480W/set 250W/set 450W/set
Viewing angle(H/V) 160°/ 140°
Driving Method 1/16 1/16 1/8
Servicing Back
Expected Lifetime 100,000Hrs
IP Rating IP65
Operating Temp/Humidity -40℃~75℃/10%~90%
Storage Temp/Humidity -30℃~65℃/10%~60%
Certification CE,RoHS

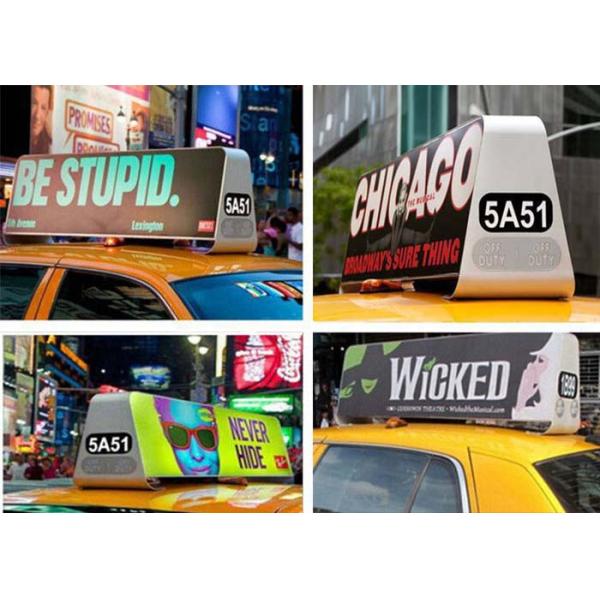

Cases:

IP65 Outdoor Mobile LED Screen Taxi Top Advertising Signs 5500 nits Brightness

Introduction of Bako Vision:

Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.

BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.

BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
