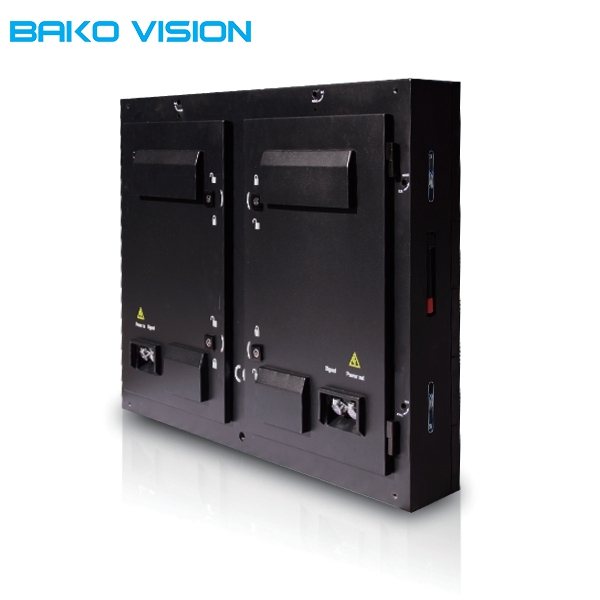

Outdoor LED Billboard SMD Advertising LED Screen P6 P8 P10 Full Color Display 5500 Nits Brightness
Outdoor LED Billboard SMD Advertising LED Screen P6 P8 P10 Full Color Display 5500 Nits Brightness
Outdoor LED Billboard SMD Advertising LED Screen P6 P8 P10 Full Color Display 5500 Nits Brightness
Outdoor LED Billboard SMD Advertising LED Screen P6 P8 P10 Full Color Display 5500 Nits Brightness
Outdoor LED Billboard SMD Advertising LED Screen P6 P8 P10 Full Color Display 5500 Nits Brightness
Outdoor LED Billboard SMD Advertising LED Screen P6 P8 P10 Full Color Display 5500 Nits Brightness
Specifications
Brand Name :
Bako Vision
Model Number :
BOF-B Series
Certification :
CE ROHS EMC ETL FCC CCC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, D/P
Supply Ability :
10,000 sqm/month
Delivery Time :
15-25 working days
Packaging Details :
Plywood case
Pixel Pitch :
P3, P4, P5, P6.67, P8, P10, P16
Cabinet Size :
Customized
Pannel Material :
Steel/Magnesium alloy/Aluminum
Servicing :
Front/Rear
IP Rating(Front/Rear) :
IP65/IP54
Brightness :
＞5500nits
Refresh Rate :
＞1920Hz
Contrast Ratio :
2000:1
Description

Bako Vision High Brightness P6 P8 P10 SMD Full Color Display Outdoor Advertising LED Screen ​

BOF-B Series (BOF-B.pdf)

Outdoor LED Billboard

Specifications
Pixel Pitch(mm): 3 / 4 / 5 / 6.67 / 8 / 10 / 16
Brightness(nits): Up to 7000
Refresh Rate(Hz): >1920
Key Point: Most common outdoor LED billboard

Key Features

  • Customized Cabinet Size and Design.
  • Steel/ Aluminum/Magnesium alloy Cabinet.
  • Back Service.
  • SMD 3in1 Technology.
  • Waterproof with IP65.
  • Wide View Angle.​

Outdoor LED Billboard SMD Advertising LED Screen P6 P8 P10 Full Color Display 5500 Nits Brightness

Full Color Display Parameters

BOF-4 BOF-5 BOF-6 BOF-8 BOF-10
Physical Pitch 4mm 5mm 6.67mm 8mm 10mm
Pixel Configuration SMD1921 SMD2727 SMD2727 SMD3535 SMD3535
Module Dimensions 320×160mm
Panel Dimensions(W × H) Customized
Physical Resolution of Module (WxH) 80x40 64x32 48×24 40x20 32×16
Panel Material Steel/Aluminum/Magnesium alloy
Grayscale 16bit
Colors 281trillion
Average Power Consumption 360 W/m2
Max. Power Consumption 900 W/m2
Refresh Rate ＞1920Hz
Brightness > 5000 nits > 5500 nits > 6000 nits > 6200 nits > 6500 nits
Expected Lifetime 100,000 Hrs
Maintenance Way Rear
IP Rating(Front/Rear) IP65/IP54

6 Main points to choose the right Outdoor LED Billboard

​Outdoor LED Billboard SMD Advertising LED Screen P6 P8 P10 Full Color Display 5500 Nits Brightness​

1. Cabinet - the most important parts, it must be designed as strictly waterproof, leakproof, drainage measures design.

2. Lightning protection device - this device should be installed on the building with the outdoor billboard led display, ensure the cabinets are grounded well, and the grounding resistance is less than 3 ohms. So, the power source can be discharged in time by large current.

3. Cooling system equipment - If the temperature and weather in your country is always very hot or could, then the air conditional cooling equipment must be installed for the outdoor billboard led display, you need to ensure the internal temperature is between -10 degrees ~ 40 degrees.

4. Brightness - The brightness of the outdoor billboard LED display is always very important to suit with your local environment, you need to make sure the height of installation place, view distance from the people, natural sun brightness, installation environment when you are discussing the solutions with your supplier.

5. Maintenance way - Front access/Rear access, it's according to that do you have the space to repair the outdoor billboard from the rear or front the installation.

6. Control system - Synchronous/Asynchronous.

Advertising LED Screen Cases

​Outdoor LED Billboard SMD Advertising LED Screen P6 P8 P10 Full Color Display 5500 Nits Brightness

About Bako Vision

Outdoor LED Billboard SMD Advertising LED Screen P6 P8 P10 Full Color Display 5500 Nits Brightness

  • Over 10 Years Experience on LED Display Screen Manufacturing in China.
  • 3 Years High Quality Warranty Provided.
  • Global Quality Standard with CE, EMC, ROHS, ETL, UL, FCC, ISO9001 Certificated.
  • Overseas Customer in 120+ Countries in The World.
  • Full Capable to Provide the Tailor Work of OEM, ODM.

FAQ:


Q1. What is DIP?
A1: DIP is the abbreviation of DOUBLE IN-LINE PACKAGE, which is assembled in a double in-line.

Outdoor LED Billboard SMD Advertising LED Screen P6 P8 P10 Full Color Display 5500 Nits Brightness


Q2. What is SMT? What is SMD ?
A2: SMT is a surface assembly technology ( SURFACE MOUNTED TECHNOLOGY ) and is currently the most popular technology and process in the electronics assembly industry; SMD is a surface mount device ( SURFACE MOUNTED DEVICE ).


Q3. What is DIP LED module technology, what are the advantages and disadvantages?
A3: It means that the lamp of DIP package passes the lamp foot through the PCB board, and the tin is filled in the lamp hole by soldering. The module made by this process is the plug-in lamp group. The advantages are: high brightness, good heat dissipation, and the disadvantage is The pixel density is small.


Q4. What is surface mount SMD technology module? What are the advantages and disadvantages?
A4: The surface mount is also called SMT. The SMT packaged lamp is soldered to the surface of the PCB board through the soldering process. The lamp pins do not need to pass through the PCB board. The module made by this process is called the surface mount module. The advantage is that the display effect is good. Large pixel density, suitable for indoor viewing: the disadvantage is that the brightness is not high enough, the lamp itself is not good enough.

Outdoor LED Billboard SMD Advertising LED Screen P6 P8 P10 Full Color Display 5500 Nits Brightness
