Movable Aluminum 5500 Nits Taxi Roof LED Advertising Screen
Movable Aluminum 5500 Nits Taxi Roof LED Advertising Screen
Movable Aluminum 5500 Nits Taxi Roof LED Advertising Screen
Movable Aluminum 5500 Nits Taxi Roof LED Advertising Screen
Movable Aluminum 5500 Nits Taxi Roof LED Advertising Screen
Movable Aluminum 5500 Nits Taxi Roof LED Advertising Screen
Movable Aluminum 5500 Nits Taxi Roof LED Advertising Screen
Movable Aluminum 5500 Nits Taxi Roof LED Advertising Screen
Movable Aluminum 5500 Nits Taxi Roof LED Advertising Screen
Movable Aluminum 5500 Nits Taxi Roof LED Advertising Screen
Specifications
Brand Name :
BAKO VISION
Model Number :
BT Series
Certification :
CE, EMC, FCC, ETL, RoHS
Place of Origin :
China
MOQ :
1 set
Price :
$900 - 1,790 per set
Payment Terms :
L/C, T/T, Western Union, D/P
Supply Ability :
10,000 set/month
Delivery Time :
5~20 working days
Packaging Details :
Wooden case/ Flight Case
Pixel Pitch :
2.5mm, 3mm, 5mm
Panel Size :
960*320mm/768*288mm
Module Size :
160*160mm/192*96mm
Panel Material :
Aluminum
Maintenance Way :
Front Service
IP Rating :
IP65
Brightness :
3,500 - 5,500nits
Refresh Rate :
> 1920Hz
Contrast Ratio :
4000:1
Expected Lifetime :
100,000 Hrs
Description

Digital Taxi Roof LED Advertising Screen Movable Waterproof LED Billboard Surpport USB/3G/4G/WIFI

Taxi Top LED Sign, Delivery Your Message !

BT Series (BT.pdf)

Taxi Top Advertising Display

Specification
Pixel Pitch(mm): 2.5 / 3 / 5
Brightness(nits): 3,500 - 5,500
Refresh Rate(Hz): >1920
Key Point: Digital Moving Billboard

Mobile Taxi Signage Features

Movable Aluminum 5500 Nits Taxi Roof LED Advertising Screen

1. Car Battery Protection
With the special car power supply, once the car battery was closed, the screen will be closed too. If the car battery is going to run out, the power supply will shut down automatically until the power is enough to play again.

2. Overvoltage and Over Current Protection
As the car battery offers the power to the screen when the car engine started, the voltage may rise to the highest, and also when there has some traffic, the voltage will be unstable, the special power supply could protect the screen.


3. Low Power Consumption
High power consumption will bring more problems to the car, so it is important to use low power consumption as a protection for the car.

4. High Brightness
Above 5000nits, it is visible under sunlight.

5. Cooling System Design

6. 100% Vibration Testing

Why Choose Our Taxi Top Sign ?

1. High Brightness
Taxi TOP LED display enable to reach 6500nit by using high intesity outdoor LEDs to make sure brighter and clear enough under the direct sunlight.
Movable Aluminum 5500 Nits Taxi Roof LED Advertising Screen

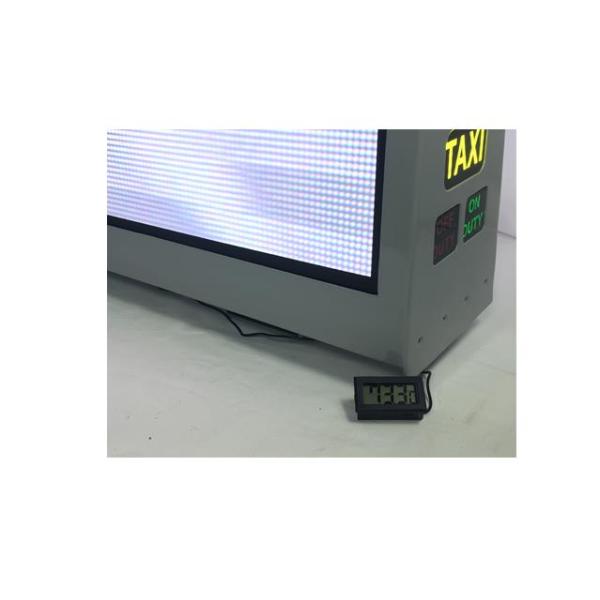

2. Safe, Reliable and Stable
- Taxi LED display panel tested under the temperature 70℃ and 80% humidity for 96 hours.
- Whole display tested at 70℃ for 24 hours.
- 100% vibration Testing.
Movable Aluminum 5500 Nits Taxi Roof LED Advertising Screen

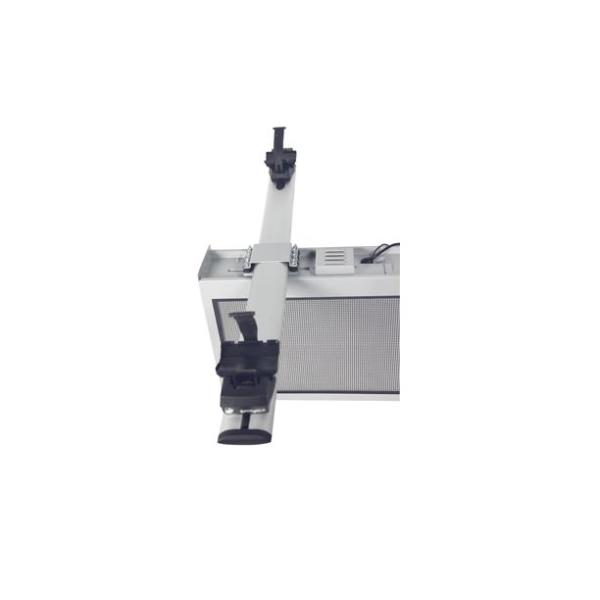

3. Taxi Roof LED Display Has Many Advantages
- Easy installation and maintenance
- Easy SD-Card installation
- Easy installation with Card Bracket
- Easy replacement of module& power supply
Movable Aluminum 5500 Nits Taxi Roof LED Advertising Screen
4. Smart Asynchornous Control
- Group Intelligent Control(GIC System)
- Location Precise Advertising
- Advertising Management System
- 3G/4G/WIFI/USB control
- GPS real-time monitoring
5. Taxi LED Display with Intelligent Design on Power & Heat dissipation
- Lower Power Consumption of whole sign, which enable to be running on any car embedded battery system.
- Intelligent Power Supply Management.
- Good Ventilation by using high speed & ball-bearing Fan.
Movable Aluminum 5500 Nits Taxi Roof LED Advertising Screen

Taxi LED Sign Electricity Parameters

BT-2 BT-3(Hot sale) BT-5
Physical Pitch 2.5mm 3mm 5mm
Pixel Configuration SMD 2121 SMD 2121 SMD 2727
Pixel Density 160,000 pixels/m² 111,111 pixels/m² 40,000 pixels/m²
Module Dimensions(W*H)(mm) 160*160 192*196 160*160
Screen Size(mm) 960*320 768*288 960*320
Screen Resolution 384*128 256*96 192*64
Panel Material Aluminum
Screen Weight 26kg 15kg 23kg
Gray Scale 16 bit
Refresh Rate >1920 Hz
IP Rating IP65
Operating Temp/Humidity -40ºC-70ºC/
10%-90%		 -40ºC-70ºC/
10%-90%		 -40ºC-70ºC/
10%-90%
Storage Temp/Humidity -30ºC-60ºC/
10%-60%		 -30ºC-60ºC/
10%-60%		 -30ºC-60ºC/
10%-60%
Avg./ Max. Power Consumption 180/480W/ set 80/2500W/ set 150/450W/ set
Servicing Back

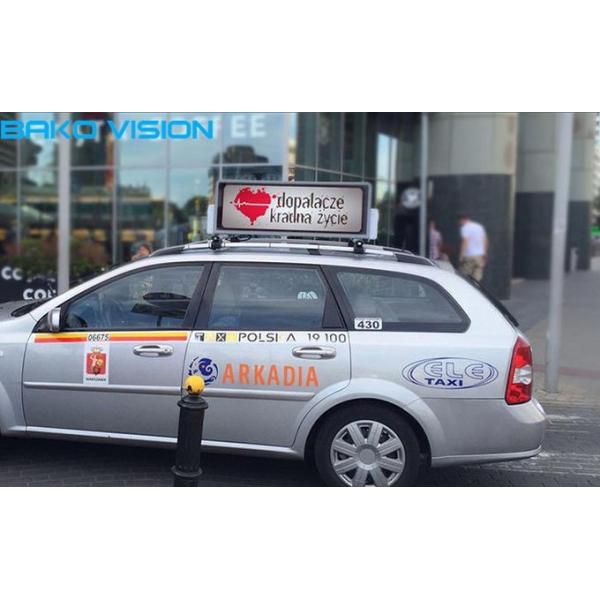

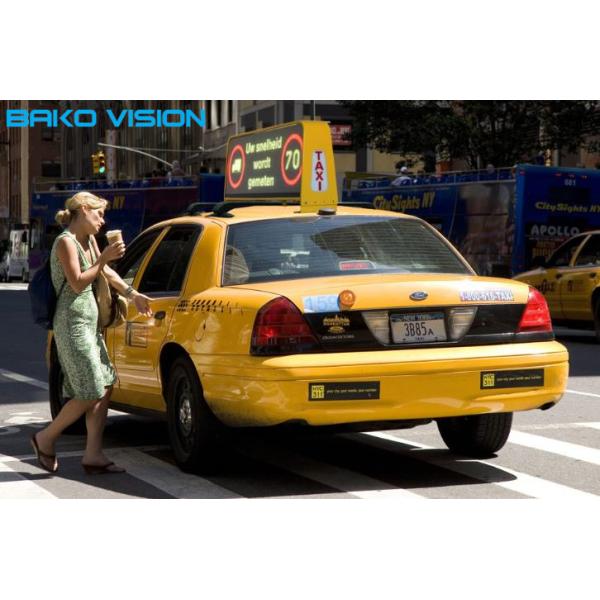

Taxi Top Billboard Case Study
Movable Aluminum 5500 Nits Taxi Roof LED Advertising Screen

Movable Aluminum 5500 Nits Taxi Roof LED Advertising Screen


About Bako Vision

Movable Aluminum 5500 Nits Taxi Roof LED Advertising Screen

  • Over 10 Years Experience on LED Display Screen Manufacturing in China.
  • 3 Years High Quality Warranty Provided.
  • Global Quality Standard with CE, EMC, ROHS, ETL, UL, FCC, ISO9001 Certificated.
  • Overseas Customer in 120+ Countries in The World.
  • Full Capable to Provide the Tailor Work of OEM, ODM.

FAQ:

Q1: WIFI or 4G controller card, which one is best?
A: For less quantity, you could choose the wifi controller card, the cost will more economic.
The disadvantage of the wifi controller is that you have to be close to the screen when you need to update the advertisements.

Q2: How to install the screen on the top of car?
A: Yes, we can provide you API, then your engineer can design your own platform.
Q3: May I use my own platform to control the screen?
A: We will provide a video guide for you, with a bracket to fix the screen on the car roof.
Q4: May I know what's advertising display on the screen?
A: You can see the log on the platform. There will show you a list.
Q5: The screen can adjust the brightness automatical?
A: With a brightness sensor, the screen can adjust brightness automatical.
Q6: Before delivery, what test will do for the screen?
A: We will do 72 hours aging test and waterproof test.
