Curved P7.8 Transparent Led Screens for Media Facade with 5500 Nits Brightness
Curved P7.8 Transparent Led Screens for Media Facade with 5500 Nits Brightness
Curved P7.8 Transparent Led Screens for Media Facade with 5500 Nits Brightness
Curved P7.8 Transparent Led Screens for Media Facade with 5500 Nits Brightness
Curved P7.8 Transparent Led Screens for Media Facade with 5500 Nits Brightness
Curved P7.8 Transparent Led Screens for Media Facade with 5500 Nits Brightness
Curved P7.8 Transparent Led Screens for Media Facade with 5500 Nits Brightness
Curved P7.8 Transparent Led Screens for Media Facade with 5500 Nits Brightness
Specifications
Brand Name :
BAKO VISION
Model Number :
P7.8
Certification :
CE， Rohs
Place of Origin :
Chian
MOQ :
1sqm
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000sqm
Delivery Time :
20days
Packaging Details :
wooden box
Pitch :
7.8mm
Cabinet size :
1000*500mm
Driver IC :
MBI5124
Brightness :
5500nits
Cabinet mateiral :
Aluminum
Power supply :
Meanwell
Description

Curved P7.8 Transparent Led Screens for Media Facade with 5500 Nits Brightness

P7.8 Transparent Led Screens Features:

1. Light weight: about 9kg/sqm;

2. Tailored curved cabinet available;

3. Easy installation;

4. Transparency rate: 75%

P7.8 Transparent Led Screens Specs

　 BG-3.9-7.8
Physical Pitch 3.9x7.8mm
Pixel Configuration SMD1921
Pixel Density 32256pixels/m²
Module Dimensions (WxH)(mm) 500x125
Panel Dimensions (WxH)(mm) 1000x500
NO. of Modules Per Panel(WxH) 2x4
Physical Resolution of Module(WxH) 128x16
Physical Resolution of Panel(WxH) 256x64
Panel Material Aluminum
Single Cabinet Weight <14kg/m²
Gray Scale 16bit
Colours 281 trillion
Contrast Ratio 2000:01:00
Average Power Consumption 180W/m²
Max. Power Consumption 560W/m²
Operating Temp/Humidity -10ºC-60ºC/ 10%-60%
Storage Temp/Humidity -30ºC-60ºC/ 10%-60%
Refresh Rate >1920Hz
Brightness 1000~4200 nits
Horizontal Viewing Angle 160°
Vertical Viewing Angle 140°
Expected Lifetime 100,000Hrs
IP Rating(Front/Rear) IP30
Servicing Rear
Scan Method 1/7 Scan

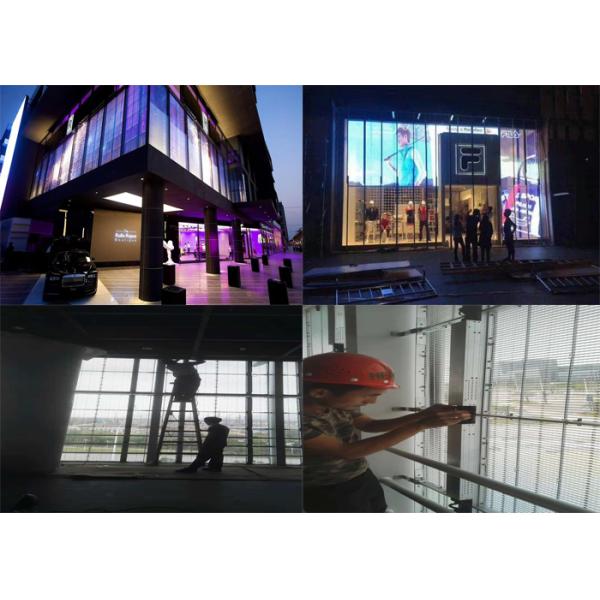

Cases


Curved P7.8 Transparent Led Screens for Media Facade with 5500 Nits Brightness
