Energy Efficient DIP 346 P16 Led Screen , Flexible Led Wall Display 14 Bit Gray Scale
Energy Efficient DIP 346 P16 Led Screen , Flexible Led Wall Display 14 Bit Gray Scale
Energy Efficient DIP 346 P16 Led Screen , Flexible Led Wall Display 14 Bit Gray Scale
Energy Efficient DIP 346 P16 Led Screen , Flexible Led Wall Display 14 Bit Gray Scale
Energy Efficient DIP 346 P16 Led Screen , Flexible Led Wall Display 14 Bit Gray Scale
Energy Efficient DIP 346 P16 Led Screen , Flexible Led Wall Display 14 Bit Gray Scale
Specifications
Brand Name :
BAKOVISION
Model Number :
P(16/16)
Certification :
CE/LCC/RoHS
Place of Origin :
CHINA
MOQ :
1 square meter
Price :
Negotiable Price
Payment Terms :
L/C, T/T, Western Union,Visa, MoneyGram, D/P, D/A,e-checking
Supply Ability :
6500㎡/Month
Delivery Time :
20-25days
Packaging Details :
Wooden Case or Flight Case
Pixel Pitch :
16.67/16.67mm
Pixel Density :
3,600 pixels/m²
Net.weight/Cabinet :
8.3kg
Brightness :
6500cd/m²
Avg.Power consumption :
155W/m²
Serviceability :
Front&Rear service
Gray scale :
14 bit
Description

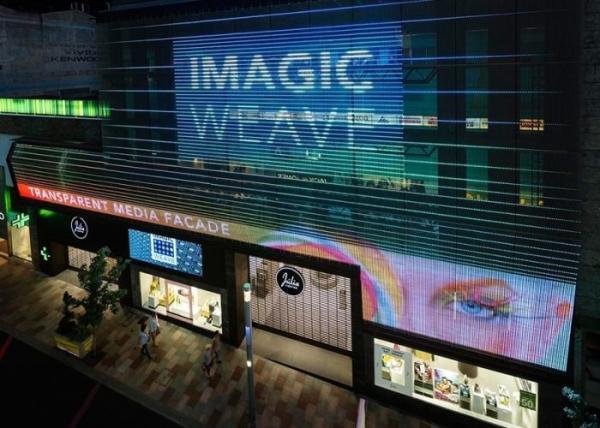

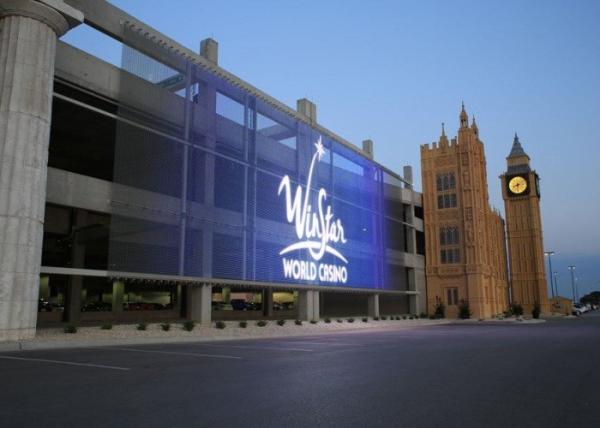

P16 BAKOVISION LED Curtain Display,DIP 346 Low Power Consumption,Lightweight LED Screen

1. Extremely light weight----------8.3kgs/sqm, can be install onto building glass wall.

2. Fast installation ---------Average 5-10 seconds to install an individual cabinet.

3. Stability long life time-------Low consumption of electricity to increase the lifetime of LEDs.

4. Energy efficient--------average 155W per sqm

5. Simple structure-------Reduce the cost of steel structure (Average 5 USD per sqm)

6. Labor efficient--------Reduce the labor time and cost by 60%

Energy Efficient DIP 346 P16 Led Screen , Flexible Led Wall Display 14 Bit Gray Scale

Energy Efficient DIP 346 P16 Led Screen , Flexible Led Wall Display 14 Bit Gray Scale

Energy Efficient DIP 346 P16 Led Screen , Flexible Led Wall Display 14 Bit Gray Scale

Energy Efficient DIP 346 P16 Led Screen , Flexible Led Wall Display 14 Bit Gray Scale

MODEL 16/16mm
LED Type DIP346
Pixel configuration 1R1G1B
Pixel pitch(H×W) mm 16.67/16.67
Module size(H×W×L) mm 1000×10×18
Resolution 60×30(H×W)
Cabinet size(H×W×L)mm 1000×500×60
Net.weight/Cabinet 8.3kg
Ingress Protection (Front/Rear) IP65
Power AC 240 or 110±10%,50~60Hz
Serviceability Front&Rear service
Max.Power consumption ≤450W/m²
Avg.Power consumption 155W/m²
Brightness 6500cd/m²
Pixel density(pixel/m²) 3,600
Viewing Angle(H/V) 120°/60°
Contrast ratio 3,000:1
Transparency 40%
Operation temperature/humidity -30°C to +50°C/10% to 95%
Lifetime(50%brightness) 80,000hours
Gray scale 14 bit
Refresh rate ≥1920Hz
Frame rate 30/50/60fps
