2R2G2B 33mm Soft Led Video Curtain , 70% Transparency DIP LED Strip Screen
2R2G2B 33mm Soft Led Video Curtain , 70% Transparency DIP LED Strip Screen
2R2G2B 33mm Soft Led Video Curtain , 70% Transparency DIP LED Strip Screen
2R2G2B 33mm Soft Led Video Curtain , 70% Transparency DIP LED Strip Screen
2R2G2B 33mm Soft Led Video Curtain , 70% Transparency DIP LED Strip Screen
2R2G2B 33mm Soft Led Video Curtain , 70% Transparency DIP LED Strip Screen
Specifications
Brand Name :
BAKOVISION
Model Number :
P(33/33)
Certification :
CE/LCC/RoHS
Place of Origin :
CHINA
MOQ :
1 square meter
Price :
Negotiable Price
Payment Terms :
L/C, T/T, Western Union,Visa, MoneyGram, D/P, D/A,e-checking
Supply Ability :
6500㎡/Month
Delivery Time :
20-25days
Packaging Details :
Wooden Case or Flight Case
Pixel Pitch :
33/33mm
Net.weight/Cabinet :
5.8kg
Max.Power consumption :
≤450W/m²
Avg.Power consumption :
155W/m²
Brightness :
6000cd/m²
Pixel density(pixel/m²） :
900
Transparency :
70%
Operation temperature/humidity :
-30°C to +50°C/10% to 95%
Description

2R2G2B Pixel Pitch 33mm LED Curtain Display,70% Transparency DIP LED Strip Screen

Description

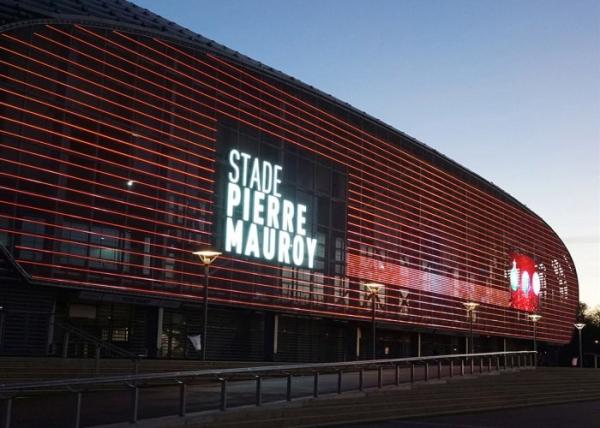

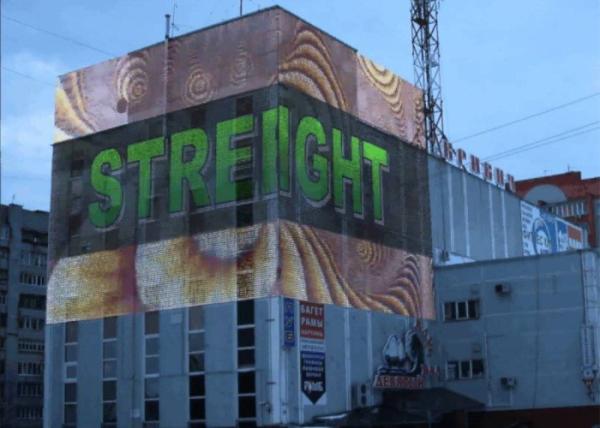

For several types of LED display installations, the ideal solution is now represented by a transparent model, ie. Those of the shape of LED bars (vertical or horizontal). In particular, there are two main applications, “media facades” (on the walls of buildings and skyscrapers) and “stages” (for TV studios or theaters).

In both cases, the biggest advantage is the lightweight LED panel that can be easily mounted on a simpler, less expensive structure than traditional LED screens. These LED panels can also be mounted in a special shape that is also curved, unlike standard TV aspect ratios.

When it comes to media facades, you get the biggest advantage of "seeing", which allows light to enter between bar charts and from inside to outside.

Advantage

Convenient

Remove the silicone plug of each light bar and go straight to the lower bracket for a while.
Save time, beautify the appearance, and reduce light strip leakage

Easy installation
Place the cabinet on the frame for one second

Great power supply
Passed CE certification, RoHS compliant, UL efficiency over 90%, very stable and reliable, working well at -40~60°C, excellent performance in cold weather in Russia

Single LED strip maintenance

If one bulb fails, replace the LED strip without replacing the entire cabinet

2R2G2B 33mm Soft Led Video Curtain , 70% Transparency DIP LED Strip Screen

2R2G2B 33mm Soft Led Video Curtain , 70% Transparency DIP LED Strip Screen

2R2G2B 33mm Soft Led Video Curtain , 70% Transparency DIP LED Strip Screen

2R2G2B 33mm Soft Led Video Curtain , 70% Transparency DIP LED Strip Screen

2R2G2B 33mm Soft Led Video Curtain , 70% Transparency DIP LED Strip Screen

MODEL 33/33mm
LED Type DIP346
Pixel configuration 2R2G2B
Pixel pitch(H×W) mm 33.33/33.33
Module size(H×W×L) mm 1000×10×18
Resolution 30×15(H×W)
Cabinet size(H×W×L)mm 1000×500×60
Net.weight/Cabinet 5.8kg
Ingress Protection (Front/Rear) IP65
Power AC 240 or 110±10%,50~60Hz
Serviceability Front&Rear service
Max.Power consumption ≤450W/m²
Avg.Power consumption 155W/m²
Brightness 6000cd/m²
Pixel density(pixel/m²) 900
Viewing Angle(H/V) 120°/60°
Contrast ratio 3,000:1
Transparency 70%
Operation temperature/humidity -30°C to +50°C/10% to 95%
Lifetime(50%brightness) 80,000hours
Gray scale 14 bit
Refresh rate ≥1920Hz
Frame rate 30/50/60fps
