Trailer Vehicle LED Display , Led Mobile Billboard Low Consumption Power
Trailer Vehicle LED Display , Led Mobile Billboard Low Consumption Power
Trailer Vehicle LED Display , Led Mobile Billboard Low Consumption Power
Trailer Vehicle LED Display , Led Mobile Billboard Low Consumption Power
Trailer Vehicle LED Display , Led Mobile Billboard Low Consumption Power
Trailer Vehicle LED Display , Led Mobile Billboard Low Consumption Power
Specifications
Brand Name :
Bakovison
Model Number :
P10
Certification :
CE RoHS UL
Place of Origin :
China
MOQ :
1sam
Price :
Negociation
Payment Terms :
L/C, D/P, T/T, Western Union
Delivery Time :
8200 sqm per month
Packaging Details :
wooden box or flight case
Usage :
Outdoor
Application :
Advertising/Shows/Live broadcast/Party/Sports match/Park/Square/Stage
Brightness :
>5500nits
Viewing Angle(H/V) :
140°/140°
Power Consumption(avg.) :
250w/m2
Power Supply :
AC 110/220±10% 50~60Hz
Life Span :
≥100000 Hours
Pixel Failure :
<0.0003
Description

Outdoor Full Color Mobile LED Screen Trailer Vehicle LED Display Low Consumption For Advertising/Shows

Features

  • 1.High brightness of DIP and SMD LED are generally used for outdoor led display
  • 2. Funtion:Video function/Text /image/information publish
  • Anti-lightening/anti-high temperature/System protection
  • 3.Application:Advertising/Shows/Livebroadcast/Party/Sportsmatch/Park/Square
  • Stage surrounding/Shopping mall/park/exhibitions
  • 4.Response time :real time.
  • 5.Viewing angle :140° in horizontal and 140° in vertical.

Details

Pixel Pitch 10mm
Pixel Density 10000 px/m2
LED Type SMD3535/DIP346
LED Configuration 1R1G1B
Cabinet Dimension 1280*960mm
Cabinet Resolution 128*96px
Cabinet Weight 79kg
Cabinet Material cold steel
Ingress Protection
(front/rear)		 IP65/IP54
Brightness >5500nits/>6500nits
Viewing Angle(H/V) 140°/140° / 120°/70°
Driving Method 1/2 Scan / 1/4 Scan
Power Consumption(avg.) 250w/m2
Frame Refresh ≥ 60Hz
Data Refresh Rate ≥ 1500Hz
Gray Scale 16bit
Power Supply AC 110/220±10%
50~60Hz
Temperature
(operating/storage)		 AC 110/220±10%
50~60Hz
Humidity(operating/storage) 10%~90%RH
10%~85%RH
MTBF ≥1000 Hours
Life Span ≥100000 Hours
Pixel Failure <0.0003

Images

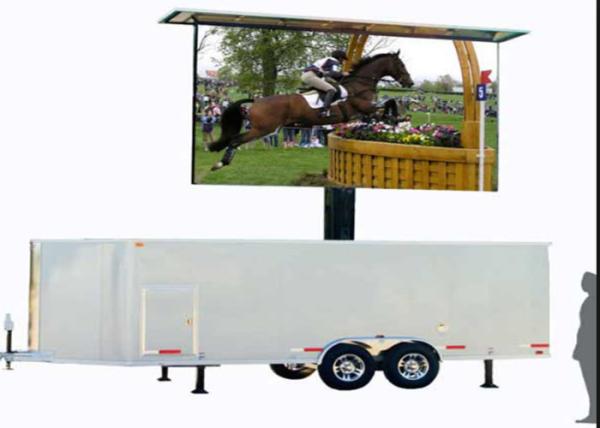

Trailer Vehicle LED Display , Led Mobile Billboard Low Consumption Power

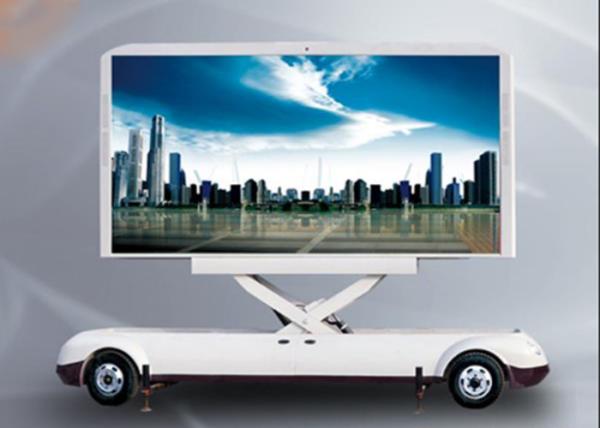

Trailer Vehicle LED Display , Led Mobile Billboard Low Consumption PowerTrailer Vehicle LED Display , Led Mobile Billboard Low Consumption Power

Advantages

  • With strict quality control process, from raw materials to finished products, all steps of indoor LED screen are supervised with guarantee of best quality.
  • IP65 protection level to ensure that the LED screen to work all day in outdoor environments and avoid being affected by the weather.
  • All sides could playadvertising to guarantee people on the street could see it clearly at different angles.
  • It can be shown at any time, communication, publicity coverage extensively,and interact with the audience at any time. At the same time get the best effect of advertising.

FAQ

How to Select a Led Display

  • Location-indoor,outdoor or semi-outdoor

Location is the most important factors for selecting the correct LED display.Different type of location such as rooftop,large billboards and stage backdrops or requires front access for servicing will require different led cabinets and modules.

  • Size,Shape and Pitch

Size:Once you have measured the height, width and depth of the space and availability, then you want to make sure the selected LED size (and number of cabinets, height, width & depth) can be accommodated.

Shape:determines if curve or column or flat screens are required.

Pitch:determines the contents of the display and the range of viewing.You need to predict how far away your viewers are from the display screen.

  • LED Facing Direction

Outdoor LEDs facing east or direct west sunlight will require higher lamination than those facing north or south. The larger outdoor billboards and configurations must be equipped with

automatic light sensors to automatically adjust brightness in reaction to sunlight and cloud

covers.
