Fixed High Brightness Truck Mounted Led Screen , SMD3535 Mobile Led Signs
Fixed High Brightness Truck Mounted Led Screen , SMD3535 Mobile Led Signs
Fixed High Brightness Truck Mounted Led Screen , SMD3535 Mobile Led Signs
Fixed High Brightness Truck Mounted Led Screen , SMD3535 Mobile Led Signs
Fixed High Brightness Truck Mounted Led Screen , SMD3535 Mobile Led Signs
Fixed High Brightness Truck Mounted Led Screen , SMD3535 Mobile Led Signs
Specifications
Brand Name :
Bakovison
Model Number :
P10
Certification :
CE RoHS UL
Place of Origin :
China
MOQ :
1sam
Price :
Negociation
Payment Terms :
L/C, D/P, T/T, Western Union
Delivery Time :
8200 sqm per month
Packaging Details :
wooden box or flight case
Pixel Pitch :
10mm
Pixel Density :
10000 px/m2
LED Type :
SMD3535
LED Configuration :
1R1G1B
Power Consumption(avg.) :
360w/m2
Power Supply :
AC 110/220±10% 50~60Hz
Life Span :
≥100000 Hours
Pixel Failure :
<0.0003
Description

Outdoor Fixed High Brightness Mobile LED Screen Advertising Truck Trailer P10 SMD3535

Specification

1. Applications
1) Mobile Advertising: Brand promotion, Product promotion and propaganda and Product shows, Shop activity,ect.

2) Outdoor Events: Wedding, Anniversary celebration, Opening ceremony, Outdoor movie, Party, Charity activity, Roadshow,Carnival etc.

3) Media Information Release: Fixed point media release, Display and demonstration, New product release, Sports information release and so on.

4) Live Broadcast: Sports competition, Concerts, Press Conference Or Awards Ceremony etc.

2. The whole screen is high uniformity and contrast ratio with conformity white balance, and the picture definition is high.

3. We take Pixel-To-Pixel Calibration System to make the shows image effectively stable.

4. A module mask had mounted, anti-Oxidation module frame with protection from deformation.

5. It is highly waterproof(IP65) of the cabinets, and a rubber cover is placed around the power and signal lines to ensure the display work normally.

6. Aircraft-grade connectors of the power, signal to ensure stable connection and high reliability.

7. Sometimes, when the sunshine is too stron or the sky is become gray, people will find it harder to see things clearly,well, the led display features a brightness of 6500nits, which keeps the color uniformity under any conditions.

Details

Pixel Pitch 10mm
Pixel Density 10000 px/m2
LED Type SMD3535
LED Configuration 1R1G1B
Module Dimension 320*320mm
Cabinet Dimension 1280*960mm
Cabinet Resolution 128*96px
Cabinet Weight 80kg
Cabinet Material steel/aluminum
Ingress Protection(front/rear) IP65/IP54
Brightness >6500nits
Viewing Angle(H/V) 140°/140°
Power Consumption(avg.) 360w/m2
Power Consumption(max.) 900w/m2
Frame Refresh ≥ 60Hz
Data Refresh Rate ≥ 1500Hz
Gray Scale 16bit
Colours 281 trillion
Contrast Ratio 2000:1
Power Supply AC 110/220±10%
50~60Hz
Temperature
(operating/storage)		 AC 110/220±10%
50~60Hz
Humidity(operating/storage) 10%~90%RH
10%~85%RH
MTBF ≥1000 Hours
Life Span ≥100,000 Hours
Pixel Failure <0.0003

Images

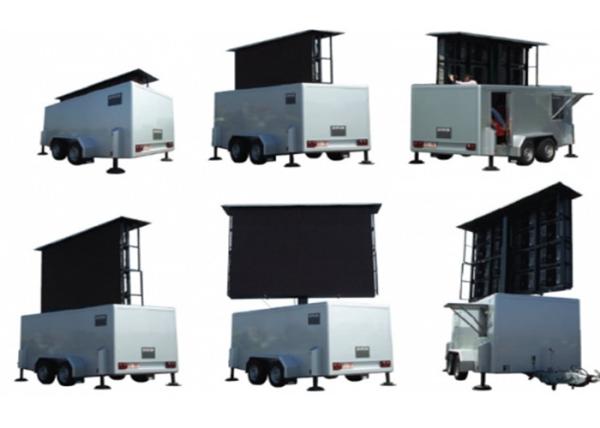

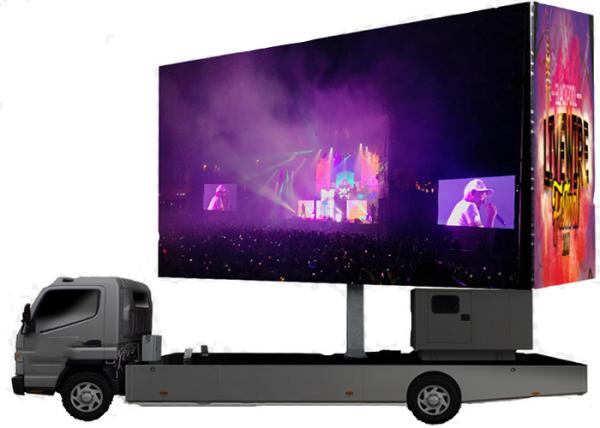

Fixed High Brightness Truck Mounted Led Screen , SMD3535 Mobile Led Signs

Fixed High Brightness Truck Mounted Led Screen , SMD3535 Mobile Led SignsFixed High Brightness Truck Mounted Led Screen , SMD3535 Mobile Led Signs

Services

1. Warranty

1) We provide warranty of all components for 2 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.

2) We will provide maintenance for a lifetime and charge for the raw materials only.

2. Technology Training

1) We provide the technology training for free, which contains the installation of software and hardware, as well as the daily operation and troubleshooting of the LED display.

2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.

3. Certification

We provide the operation manual and all kinds of certification such as CE, RoHS EMC UL and so on.
