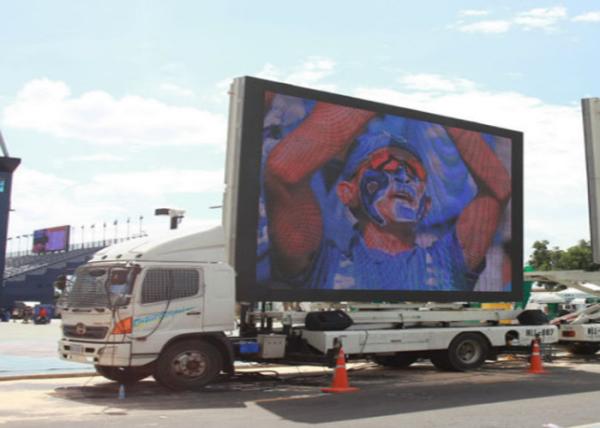

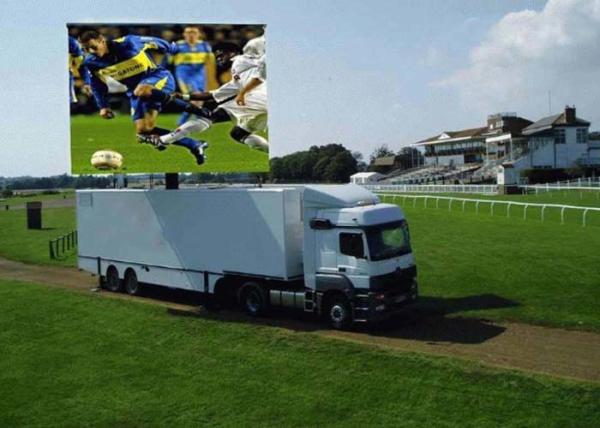

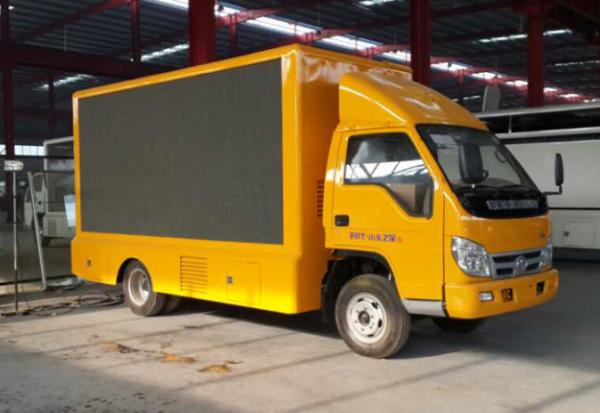

Outdoor SMD35351R1G1B Mobile LED Screen Truck Mounted LED Display Dust-proof IP65/IP54

Features

* Colorful:Full color LED screen consists of a number of red, green and blue LED lights composed, which form a variety of colors, can achieve high resolution effect.

* Modular design:Standardized design of the module display unit, can be arbitrarily combined, according to the needs of customers.

* Control:You can set up the content and format you want to play, and then control the screen to play around, which requires an asynchronous system.

* Multiple options:The mobile LED screen could play various multimedia files, such as picture,images,video ,animation and so on.It can also be translated into local languages according to their request with the same quality.

* Anti-shake:During the movement of the truck, it is inevitable to meet the poor road conditions. Therefore, this display adopts a shockproof material to protect the display,extended the life span of led display.

* Low Consumption, long life time:The average power consumption of 300w / m²,The life time of the led display can reach 10000 hours.

* Effective:Advertising is not subject to time and place restrictions,it owns a wide range of audiences and it is convenient and flexible.Actually,it spend a lower cost but obtains a better effect.

Details&Images

Pixel Pitch	8mm
Pixel Density	15625px/m2
LED Type	SMD3535
LED Configuration	1R1G1B
Cabinet Dimension	1024mm*768mm
Cabinet Resolution	128*96pixels
Cabinet Weight	51kg
Cabinet Material	Cold steel
Brightness	>6500nits
Viewing Angle(H/V)	140°/140°
Ingress Protection (front/rear)	IP65/IP54
Driving Method	1/8Scan
Power Consumption(avg.)	300w/m2
Frame Refresh	≥ 60Hz
Data Refresh Rate	≥ 1500Hz
Gray Scale	16bit
Power Supply	AC 110/220±10% 50~60Hz
Temperature (operating/storage)	-20~50°C -40~60°C
Humidity(operating/storage)	10%~90%RH 10%~85%RH
MTBF	≥1000 Hours
Life Span	≥50000 Hours
Pixel Failure	<0.0003

Advantages

1. Application:promotional activities, public relations activities, product promotion, brand promotion, draft activities, sales site display,product promotion parade activities, building opening parade activities,sports events, concerts, concerts and more.

2. Cabinet structure is with standardization: Adopting high strength metal process, achieving high precision.

3 With a high refresh frequency and and gray scale level ,it possess uniform image picture and realize the vivid effect.

4. Through the good structure design, ensure the stable performance and excellent thermal management.

5. Certificate: UL, CE&RoHS EMC

Trade Terms

1. Package: Wooden package, Flight case.

2. Payment: T/T, 30% deposits, 70% balance before delivery

3. Shipping port: Shenzhen

4. Warranty time: 2years

5. Delivery time:20-25 working days
