Indoor Transparent LED Screen P3.9/7.8mm Curtain Glass LED Display Wall
Indoor Transparent LED Screen P3.9/7.8mm Curtain Glass LED Display Wall
Indoor Transparent LED Screen P3.9/7.8mm Curtain Glass LED Display Wall
Indoor Transparent LED Screen P3.9/7.8mm Curtain Glass LED Display Wall
Indoor Transparent LED Screen P3.9/7.8mm Curtain Glass LED Display Wall
Indoor Transparent LED Screen P3.9/7.8mm Curtain Glass LED Display Wall
Indoor Transparent LED Screen P3.9/7.8mm Curtain Glass LED Display Wall
Indoor Transparent LED Screen P3.9/7.8mm Curtain Glass LED Display Wall
Indoor Transparent LED Screen P3.9/7.8mm Curtain Glass LED Display Wall
Indoor Transparent LED Screen P3.9/7.8mm Curtain Glass LED Display Wall
Specifications
Brand Name :
Bako Vision
Model Number :
BG Series
Certification :
CE RoHS FCC ETL CCC ISO
Place of Origin :
China
MOQ :
1 sqm
Price :
$550~1,050 per square meter
Payment Terms :
T/T, L/C, Western Union,Visa,O/A, Paypal
Supply Ability :
80,000 sqm/m2
Delivery Time :
15-25 working days
Packaging Details :
Wooden case / Flight case
Cabinet Dimensions :
1000x500mm / 960x640mm
Cabinet Material :
Aluminum
Cabinet Thickness :
33~45mm
IP Rating :
IP30
Brightness :
1,000~5,500 nits
Transparency :
70%~80%
Warranty :
Two years
Application :
Building Construction, Car Show, Window Display, Jewelry Shop, 4S Store
Description

Indoor Outdoor Transparent LED Screen P3.9/7.8mm Curtain Glass Led Display Wall

BG Series (BG.pdf)

Transparent LED Screen

Specification
Pixel Pitch(mm): 2.5x7.8 / 3.9x7.8 / 10.4x10.4
Brightness(nits): Up to 6000
Refresh Rate(Hz): >1920
Installation evironment Indoor ONLY, Not waterproof

Key Features

  • Light weight & Ultra thin.
  • Customized size.
  • Indoor installation for outdoor viewing.
  • Embedded-In SMD technology, to increase the stability and anti-dead lamp.
  • Energy saving & Fast cooling.

Indoor Transparent LED Screen P3.9/7.8mm Curtain Glass LED Display Wall

Large Media Screen Parameters

Pixel Pitch 2.5x7.8mm 3.9x7.8mm 10.4x10.4mm
Pixel Configuration SMD 1921 SMD 1921 SMD 2020
Pixel Density 50,688 pixls/m² 32,768 pixls/m² 10,000 pixls/m²
Module Dimension 500 x 125 mm 500 x 250 mm
Panel Dimention 1000 x 500 mm
Resolution of Module 200 x 16 128 x 16 48 x 12
Panel Material Aluminum
Weight 14 kg/m²
Gray Scale 16 bits(281 trillion colors)
Conntrast Ratio 2,000 : 1
Average ower Consumption 240 W/sqm 180 W/sqm 218 W/sqm
Max ower Consumption 700 W/sqm 560 W/sqm 650 W/sqm
Refresh Rate > 1920 Hz
Brightness Up to 6,000 nits
Expected Lifetime 100,000 Hrs
IP Rating(front/rear) IP30
Maintenance Way Rear

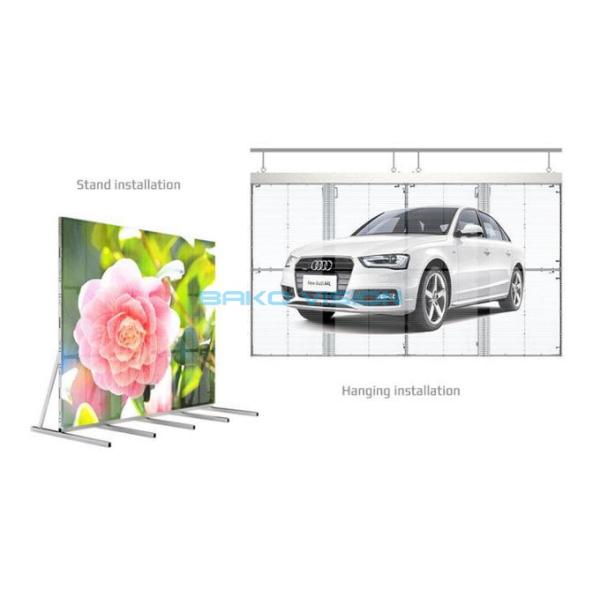

Advertising Signage Installation Ways

Indoor Transparent LED Screen P3.9/7.8mm Curtain Glass LED Display Wall

  • Available to attach onto glass wall directly.
  • Truss hanging and ground support both available.
  • Steel frame is canceled during the installation.

Permanent LED Display Cases

Indoor Transparent LED Screen P3.9/7.8mm Curtain Glass LED Display Wall

About Bako Vision

Indoor Transparent LED Screen P3.9/7.8mm Curtain Glass LED Display Wall

  • Over 10 Years Experience on LED Display Screen Manufacturing in China.
  • 3 Years High Quality Warranty Provided.
  • Global Quality Standard with CE, EMC, ROHS, ETL, UL, FCC, ISO9001 Certificated.
  • Overseas Customer in 120+ Countries in The World.
  • Full Capable to Provide the Tailor Work of OEM, ODM.
