Specifications
Brand Name :
Bakovision
Model Number :
P1.25
Certification :
CE RoHS EMC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
8000 sqm
Delivery Time :
20-25days
Packaging Details :
wooden case/flight case
Pixel Pitch :
1.25mm
Cabinet Weight :
4.6kg
Viewing Angle(H/V) :
140°/140°
Brightness :
>800nits
Gray Scale :
16bit
Refresh Rate :
≥ 1500Hz
Cabinet Material :
Die casting
Cabinet Wight :
4.6kg
Description

P1.25 FULL Color Indoor Fixed HD LED Display Video Wall Screen Panel for Events

Features&Advantages

1. The Ultra High Resolution P1.25mm indoor screen,which have a fine pixel pitch for clear image.

2. The modular design offers size scalability and complete color blended images at a very short range. These panels can be flexible combination and turned into larger screens as per your needs.

3. The refresh rate is higher than 1500Hz, guarantee that the audience will not have a flickering picture during the viewing period.

4. Appropriate brightness to help the audience comfortably view the visuals.

5. The flatness of led panel surface is greatly improved by its CNC+Die Casting molding process (precision up to 0.05mm), thus it ensures the full screen’s seamless and precise installation.

6. The weight of full panel is only 6.5KG, can be easily hanging up by one person

7. Adopting quick locking mechanism. You can install one cabinet with high accuracy quickly,include cabinet splicing and wiring connection.

8. It has a excellent heat dissipation performance due to it is low noise and none fans.

9. Those cabinets also features lightweight and low power consumption.Effective cost savings.

10. It can maintain one pixel and single panel.

11. We have rigorously test every raw material and every production steps to ensure our product quality.

Product Details

Model IU-1.2
Pixel Pitch 1.25mm
Pixel Density 640000 px/m2
LED Type SMD0909
LED Configuration 1R1G1B
Cabinet Dimension 400*300mm
Cabinet Resolution 320*240px
Cabinet Weight 4.6kg
Cabinet Material die-casting
Ingress Protection
(front/rear)
IP40/IP21
Brightness >800nits
Viewing Angle(H/V) 140°/140°
Driving Method 1/30 Scan
Power Consumption(avg.) 220w/m2
Frame Refresh ≥ 60Hz
Data Refresh Rate ≥ 1500Hz
Gray Scale 16bit
Power Supply

AC

110/220±10%
50~60Hz

Temperature
(operating/storage)

-20~50°C
-40~60°C

Humidity(operating/storage) 10%~90%RH
10%~85%RH
MTBF ≥1000 Hours
Life Span ≥50000 Hours
Pixel Failure <0.0003

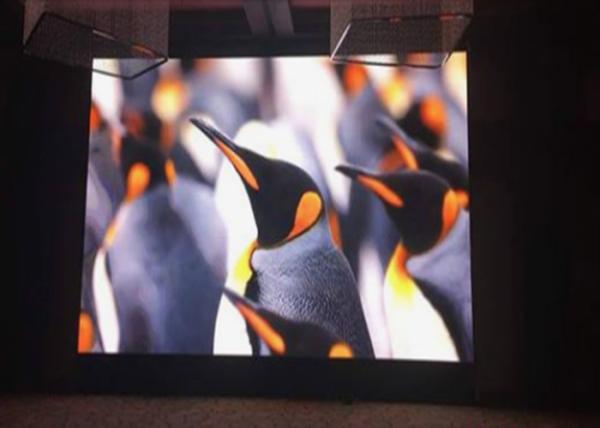

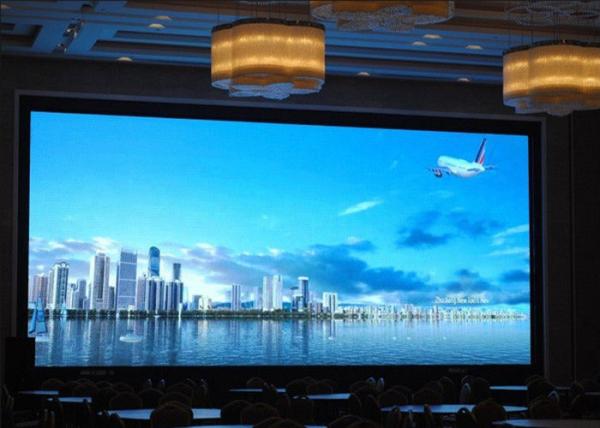

Product images

P1.25 Large Event Led Wall , Indoor Led Video Walls 140° Viewing Angle IP40/IP21P1.25 Large Event Led Wall , Indoor Led Video Walls 140° Viewing Angle IP40/IP21

FAQ

Q1: May I know the pixel pitch of this display?

A1: Yes,it is indoor led display for pixel pitch of 5mm

Q2: How's the applications?

A2: Indoor & fixed use. Widely used for meeting room, monitoring center, indoor activities, etc.

Q3: Can it play HD video?

A3: Yes, it can realize HD video function with Novastar controlling system.

Q4: How about the size of project?

A4: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size.
