Specifications
Brand Name :
Bakovision
Model Number :
P1.92
Certification :
CE EMC RoHS UL
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
8000sqm/month
Delivery Time :
020-25 working days
Packaging Details :
wooden box/flight case
Type :
Indoor
Pixel Pitch :
1.92mm
Refresh Rate :
≥ 1500Hz
Gray Scale :
16bit
Cabinet Material :
die-casting
Cabinet Weight :
4.6kg
Life Span :
≥50000 Hours
Pixel Failure :
<0.0003
Description

Front service P1.9 HD Indoor Led Display with nationstar leds for Traffic center

P1.9 HD Indoor Led Display Description:

1) Application: Indoor Fixed

2) Optional of Front service and rear service

3) Silent operation

4) Lightweight and seamless

5) High gray and low brightness

6) High color Fidelity

7) Wide viewing angle

8) Excellent thermal management

9) Low consumption

10) Quick lock system allowing fast rigging

11) Long life span time

12) Shorter Mean time bettwen failure

P1.9 HD Indoor Led Display Specs

Model IU-1.9
Pixel Pitch 1.92mm
Pixel Density 271232 px/m2
LED Type SMD1010
LED Configuration 1R1G1B
Cabinet Dimension 400*300mm
Cabinet Resolution 208*156px
Cabinet Weight 4.6kg
Cabinet Material die-casting
Ingress Protection
(front/rear)
IP40/IP21
Brightness >800nits
Viewing Angle(H/V) 140°/140°
Driving Method 1/26 Scan
Power Consumption(avg.) 220w/m2
Frame Refresh ≥ 60Hz
Data Refresh Rate ≥ 1500Hz
Gray Scale 16bit
Power Supply AC 110/220±10%
50~60Hz
Temperature
(operating/storage)
-20~50°C
-40~60°C
Humidity(operating/storage) 10%~90%RH
10%~85%RH
MTBF ≥1000 Hours
Life Span ≥50000 Hours
Pixel Failure <0.0003

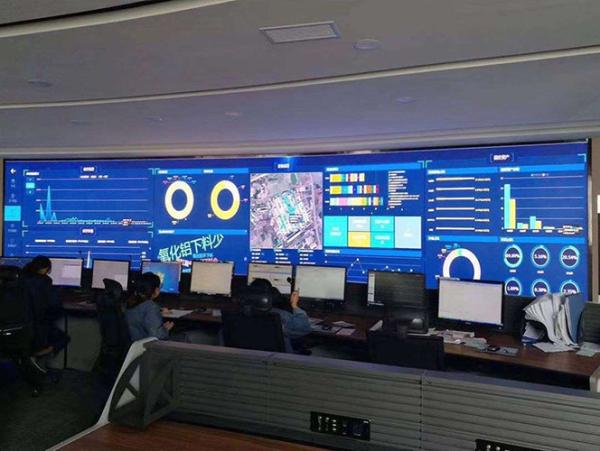

Cases

Front service P1.9 HD Indoor Led Display with nationstar leds for Traffic center

About us

1) Bakovision has a complete product line which include indoor and outdoor full color screen, LED background curtain wall, LED curved display, LED strip information screen.

2) Bakovision owns its diversified business philosophy, group management mode protect each display item excellent quality, high-quality service for customers to worry about lifting .

3) We own more than 10000 square meters.Our production capacity reaches 8,000 square meters per month.It ensure that we could to meet customer needs.

4) The indoor full color LED Display mounted adopts aluminum alloy mask, which has excellent thermal management. As for Outdoor full color screen,We design and produce it strictly according to the standard of IP65.

5) Reliable quality, advanced technology, stable technology, automated production equipment, and reasonable price.

6) During the installation of the display screen,We will do a simple training about system and the working principle of LED display.It including the installation of display system and daily maintenance, as well as simple software and hardware troubleshooting.

FAQ:

Q1: When is the delivery time?

A1: we will accomplish manufacturing within 10 days after receiving the deposit.

Q2: What is the payment method?

A2: We support a variety of payment methods, the most common is the TT.

Q3: What's the pixel pitch for Outdoor LED Display Screen?

A3: Outdoor (P3mm/P3.91mm/P4mm/P5mm/P6mm/P6.25mm/P6.67mm/P8mm/P10mm/P16mm)

Q4: Where is it used for?

A4: Outdoor & Fixed use. Widely used for physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment, ect.

Q5: Can it play HD video?

A5: Yes, it can realize HD video function with Linsn controlling system.

Q6: What's the controlling system?

A6: Our standard controlling system for this model is Linsn, Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.
