Specifications
Brand Name :
Bakovision
Model Number :
P1.87
Certification :
CE UL EMC RoHS
Place of Origin :
China
MOQ :
Negotiation
Price :
Negociation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8200sqm/mon
Delivery Time :
20-25 days
Packaging Details :
wooden box/flight case
Pixel Pitch :
1.87mm
Pixel Density :
284866 px/m2
LED Type :
SMD1010
Cabinet Weight :
6kg
Viewing Angle(H/V) :
140°/140°
Refresh Rate :
≥ 2880Hz
Power Supply :
AC 110/220±10% 50~60Hz
Life Span :
≥50000 Hours
Description

SMD P1.87 HD LED Display Indoor Full Color Video Wall Screen Die Casting Aluminum LED Panel

Product Features
* The LED type of SMD1010 are used for indoor LED display.

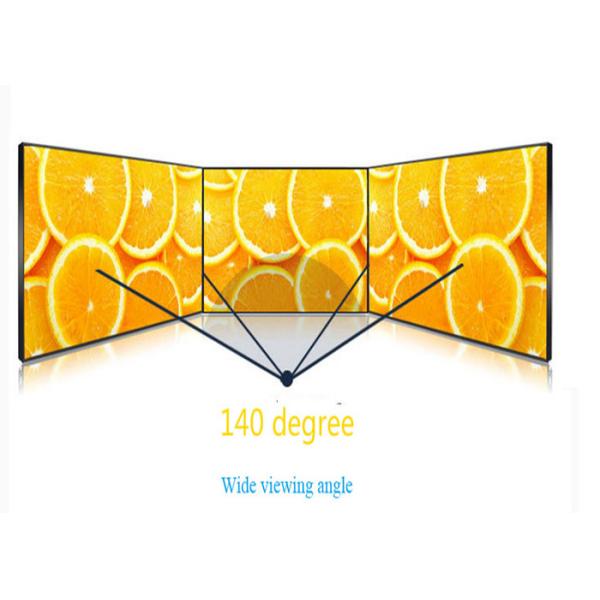

* A wide view angle of Horizontal /Vertical both reach 140 degree.
* High gray scale ensure that no there is no scan line when taking photos.
* Seamless and lightweight design,easy to operation and install.
* Modular, flexible assembly, convenient maintenance.
* High color uniformity and clear image can bring you a vivid audio visual effect.
* Stable and safe power system, with lower consumption.

Product Details

Pixel Pitch 1.87mm
Pixel Density 284866 px/m2
LED Type SMD1010
LED Configuration 1R1G1B
Cabinet Weight 6kg
Cabinet Material die-casting
Ingress Protection
(front/rear)
IP43
Brightness >800nits
Viewing Angle(H/V) 140°/140°
Driving Method 1/30 Scan
Power Consumption(avg.) 300w/m2
Frame Refresh ≥ 60Hz
Data Refresh Rate ≥ 2880Hz
Gray Scale 14-16bit
Power Supply AC 110/220±10%
50~60Hz

Temperature
(operating/storage)

-20~50°C
-40~60°C

Humidity(operating/storage) 10%~90%RH
10%~85%RH
MTBF ≥1000 Hours
Life Span ≥50000 Hours
Pixel Failure <0.0003

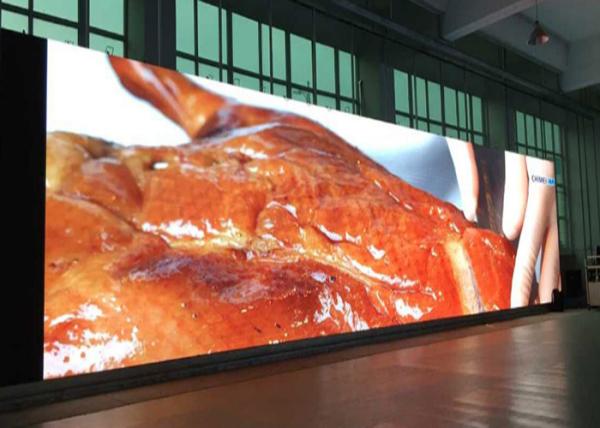

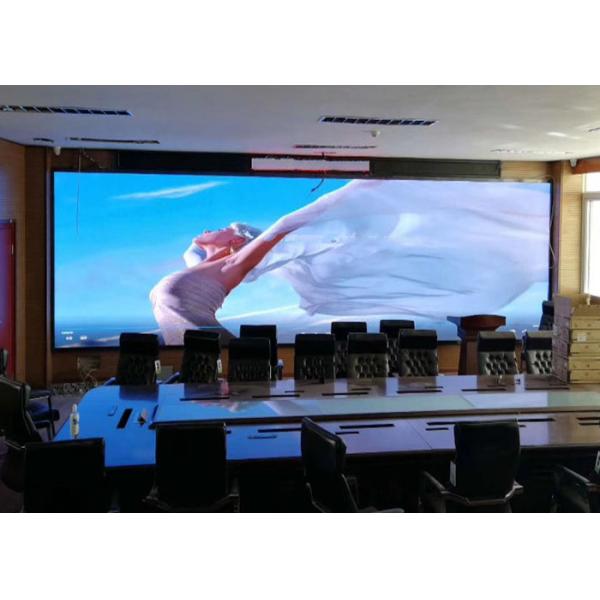

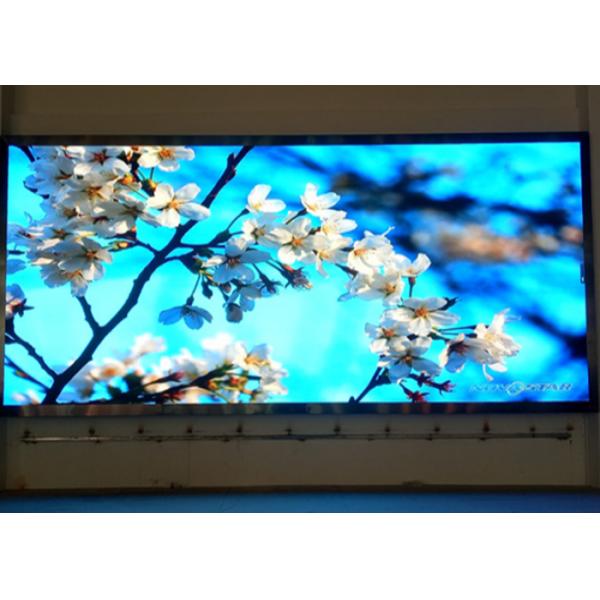

Product Image
SMD P1.87 Full HD LED Screen Indoor , Full Color Led Video Wall ScreenSMD P1.87 Full HD LED Screen Indoor , Full Color Led Video Wall ScreenSMD P1.87 Full HD LED Screen Indoor , Full Color Led Video Wall Screen
Advantages
* Equipped with adjustable equipment to adapt the environment so that it can avoid the adverse effect by surrounding environment
* No matter in any size, any shape,we can shows the presenting perfect seamless visual effect
* Indoor LED video screen with die-casting aluminum frame design,so it is lightweight which saving space and costs,
* It is fashionable and beautiful;cabinet material improves the heat dispersion, prolonging the lifetime of the led display.

Service

* Bakovision has a complete product line which include indoor and outdoor full color screen, LED background curtain wall, LED curved display.

* We own more than 10000 square meters.Our production capacity reaches 8,000 square meters per month.It ensure that we could to meet customer needs.

* Reliable quality, advanced technology, stable technology, automated production equipment, and reasonable price.

* During the installation of the display screen,We will do a simple training about system and the working principle of LED display.It including the installation of display system and daily maintenance, as well as simple software and hardware troubleshooting.

Tips:
* Payment Terms: T/T 30% as deposit, balance 70% before delivery.
* Packing Details: Packing by wooden case or flight case.Production Lead time: 20-25 working days
* Guarantee 2 years warranty
* Free Training & Technical Support
