Light weight P10.4 Transparent led screens with 100x50cm Panel for media facade
Light weight P10.4 Transparent led screens with 100x50cm Panel for media facade
Light weight P10.4 Transparent led screens with 100x50cm Panel for media facade
Light weight P10.4 Transparent led screens with 100x50cm Panel for media facade
Light weight P10.4 Transparent led screens with 100x50cm Panel for media facade
Light weight P10.4 Transparent led screens with 100x50cm Panel for media facade
Light weight P10.4 Transparent led screens with 100x50cm Panel for media facade
Light weight P10.4 Transparent led screens with 100x50cm Panel for media facade
Specifications
Brand Name :
Bako Vision
Model Number :
BK-10.4
Certification :
CE, RoHs, CCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000sqm
Delivery Time :
25-30days
Packaging Details :
wooden box
Pitch :
10.4
Cabinet Size :
960*640mm
Driver IC :
ICN2038S
Power Supply :
Meanwell
Controller :
Linsn/Nova
Brightness :
5500Nits
Description

Light weight P10.4 Transparent led screens with 100x50cm Panel for media facade

P10.4 Transparent led screens Features:

1. Light weight: only 11kg/sqm;

2. Easy installation;

3. Any shape screen available;

4. High brightness: 5500nits

P10.4 Transparent led screens Specs

　 BG-10
Physical Pitch 10.4x10.4mm
Pixel Configuration SMD1921
Pixel Density 9216pixels/m²
Module Dimensions (WxH)(mm) 500x125
Panel Dimensions (WxH)(mm) 1000x500
NO. of Modules Per Panel(WxH) 2x4
Physical Resolution of Module(WxH) 48x12
Physical Resolution of Panel(WxH) 96x48
Panel Material Aluminum
Single Cabinet Weight <14kg/m²
Gray Scale 16bit
Colours 281 trillion
Contrast Ratio 2000:01:00
Average Power Consumption 140W/m²
Max. Power Consumption 400W/m²
Operating Temp/Humidity -10ºC-60ºC/ 10%-60%
Storage Temp/Humidity -30ºC-60ºC/ 10%-60%
Refresh Rate >1920Hz
Brightness 1000~4200 nits
Horizontal Viewing Angle 160°
Vertical Viewing Angle 140°
Expected Lifetime 100,000Hrs
IP Rating(Front/Rear) IP30
Servicing Rear
Scan Method 1/2 or 1/4 Scan

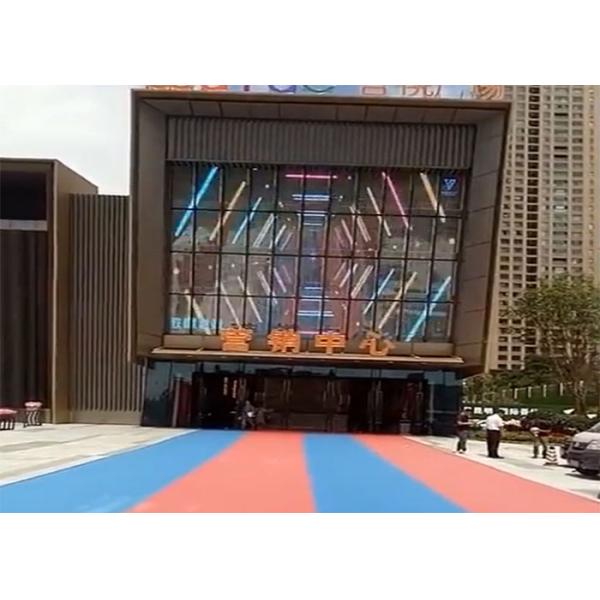

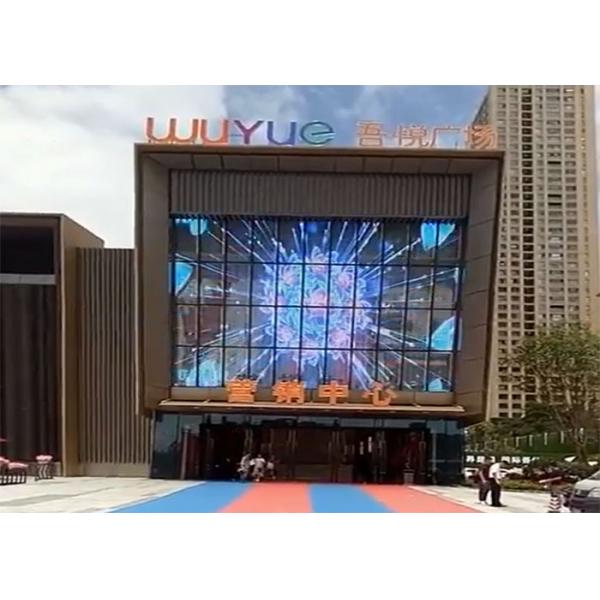

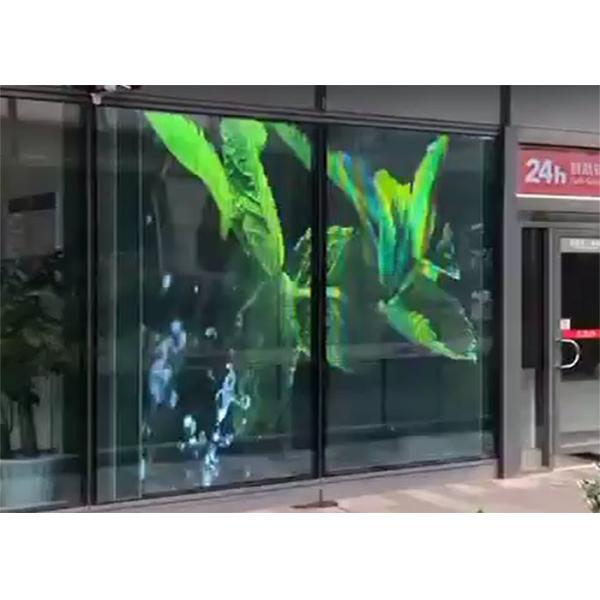

Cases:

Light weight P10.4 Transparent led screens with 100x50cm Panel for media facade

Light weight P10.4 Transparent led screens with 100x50cm Panel for media facade
