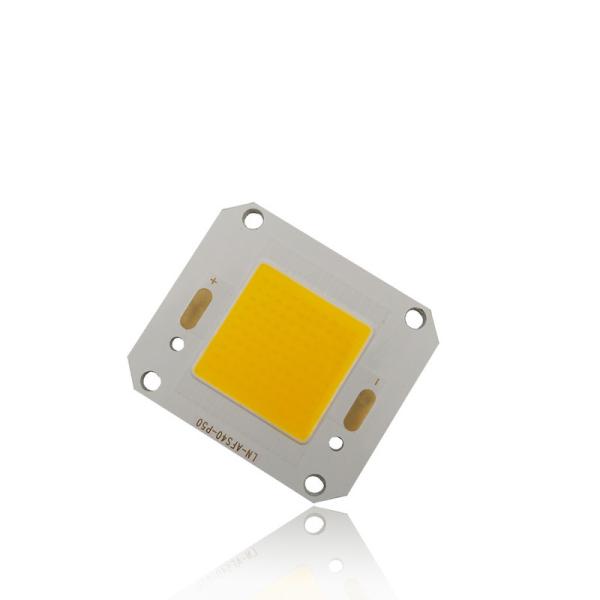

High Power 40W - 200W LED COB Chip 4046 Series For LED Streetlight
High Power 40W - 200W LED COB Chip 4046 Series For LED Streetlight
Specifications
Brand Name :
HOYOL
Model Number :
HY-CAS40CW
Certification :
CE/ROHS/FCC
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable price
Payment Terms :
T/T, Western Union
Supply Ability :
600kkpcs per month
Delivery Time :
3-5 working days after received your payment
Packaging Details :
Packed in carton
Name :
High Power 4046 Series 40W-200W Led Cob Chip For LED Streetlight
Size :
4.0X4.6mm
CCT Color :
20000-30000K
Power :
40-200W
LES :
25X25mm
SUBSTRATE :
Super Aluminum Substrate
Description

High Power 4046 Series 40W-200W Led Cob Chip For LED Streetlight

Design Advantage of High Power 4046 Series 40W-200W Led Cob Chip For LED Streetlight:

1,No glare light
2,Color consistance
3,Low life decay
4,Low thermal resistance
5,High CRI 80/90/95+
6,High standard raw materials proovide

Product Specifications

Power 40W-60W/80W-120W/150W-200W
CCT 2700-6500K
LM/W 120-140/110-130
IF 1250-1800mA/2500-4000mA/3500-4500mA
VF 30-33V/42-48V
Circuit 10S10P/10S21P/14S30P
Whole Size 40X46MM
Emit Size 25*25MM
View Angle 120°
CRI 70/80/90/95
Substrate Super-Aluminum
Design Advantage 1,High density
2,High power series
3,Low thermal resistance
4,SDCM<5
5,CRI available in 80/90/95+
6,Flip chip technology
7,Good stability
Appilication 1,LED floodlight
2,LED streetlight
3,LED high bay light
4,LED wall washer
5,LED landscape lamp
6,LED explosion-proof light

High Power 40W - 200W LED COB Chip 4046 Series For LED Streetlight

HOYOL 4046 series LED COB CHIP have 40W-60W/80W-120W/150W-200W, and CCT can according to our customized do 2700-6500K.

The whole size is 40X46MM, and the emit size is 25*25MM. The product view angle is 120°, and the CRI we can do 70/80/90/95. 4046 series product we use Super-Aluminum substrate, so it have good stability.

High Power 40W - 200W LED COB Chip 4046 Series For LED Streetlight

High Power 40W - 200W LED COB Chip 4046 Series For LED Streetlight
