Specifications
Brand Name :
HOYOL
Model Number :
HY-CAS23SR/G/B
Certification :
CE/ROHS/FCC
Place of Origin :
CHINA
MOQ :
100pcs
Price :
0.6usd/pcs~2usd/pcs
Payment Terms :
T/T, Western Union
Supply Ability :
600kkpcs per month
Delivery Time :
3-5 working days after received your payment
Packaging Details :
Packed in carton
Name :
2325 Series 40W Cob LED 460nm 520nm 620nm LED COB Chips
Size :
23x25mm
CCT Color :
RGB
Power :
40W
Les :
R20mm
IF :
1200mA
Description

2325 Series 40W Cob LED 460nm 520nm 620nm LED COB Chips

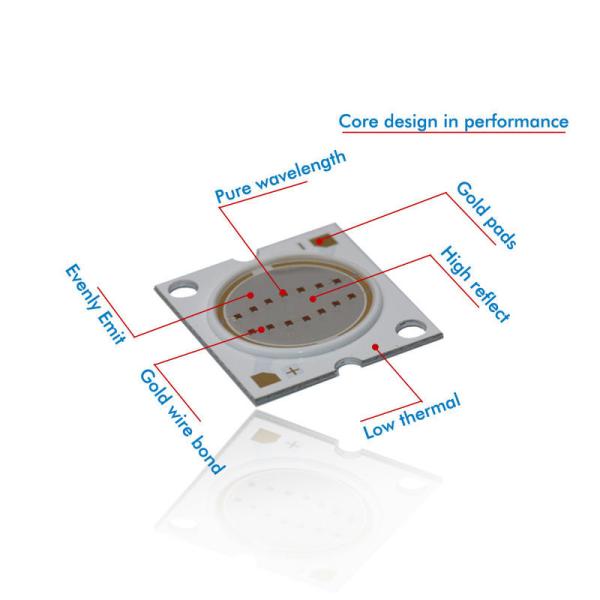

Design Advantage of 2325 Series 40W Cob LED 460nm 520nm 620nm LED COB Chips:

1,No glare light
2,Color consistance
3,Low life decay
4,Low thermal resistance
5,High CRI 80/90/95+
6,High standard raw materials proovide

Product Specifications

Models HY-CAS23SG-P50-20 HY-CAS23SG-P50-20 HY-CAS23SG-P50-20
POWER 40W 40W 40W
CCT RED=620-630nm GREEN=520-530nm BLUE=460-470nm
LUMINUOUS EFF 40-60lm/w 90-110lm/w 20-30lm/w
IF 1200mA 1200mA 1200mA
VF 20-24V 30-34V 30-34V
CIRCUIT 10S8P 10S8P 10S8P
WHOLE SIZE 23*25mm 23*25mm 23*25mm
LES R20mm R20mm R20mm
VIEW ANGLE 120° 120° 120°
SUBSTRATE MIRROR ALU MIRROR ALU MIRROR ALU
CHIPS EPISTAR OR EPILED EPISTAR OR EPILED EPISTAR OR EPILED

2325 Series 40W COB LED 1200mA RGB 460nm 520nm 620nm COB LED Chip

2325 Series 40W COB LED 1200mA RGB 460nm 520nm 620nm COB LED Chip

FAQ:

Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q5: Do you support drop shipping and how much is the shippping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.
Q6: How to place an order?
A6: If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online, we will reply you within 24hours(working day).
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples, the delivery could be as fast as same day.
We have professional laboratories and researchers, and carry out a large number of experiments and tests on the ratio of lamp beads to ensure the scientific and effective. We warmly welcome to send us the engineering drawing of your project to get the solutions for you.
