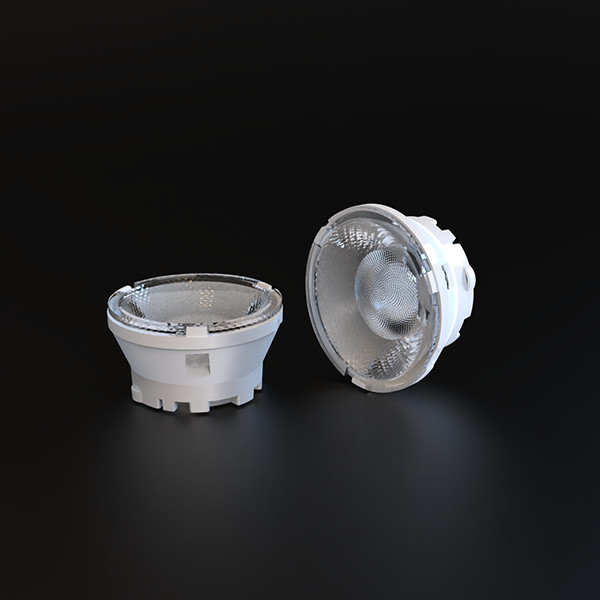

24 Degree Color Mixing PMMA TIR Lens with 88% Efficiency for Smart Control LED Lighting
24 Degree Color Mixing PMMA TIR Lens with 88% Efficiency for Smart Control LED Lighting
Specifications
Brand Name :
Wisertop
Model Number :
WT-25@12-24COBL4-C2
Certification :
Rohs
Place of Origin :
China
MOQ :
1pc
Price :
Shenzhen Wisertop Technology Co.,Ltd
Supply Ability :
100,000 day
Delivery Time :
1-2 weeks
Packaging Details :
Master carton
Material :
PC
Lens type :
TIR Lens
Efficiency :
88%
Certificates :
Rohs
Working temperature :
-40°C~+90°C
Light source :
Brand COB leds as Cree Osram Lumileds Bridgelux...
Description
Durable 24 Degree Color Mixing PMMA TIR Lens For Smart Control Lamp
Product Overview

High performance color mixing beam angle 24° Color mixing Lens PMMA material smart control lamp diameter 25mm

Applications

Spot light, Down light, Tracking light, Recessed lamp, Ceiling light

Lens Material

PMMA all available

Lens Features
  • Excellent color mixing characteristics compatible with various two-color chip arrangements and multi-color arrangement light sources
  • Minimal lamp color drift after lens application; single color light source color drift no more than 0.5SDCM
  • Clearly distinguishable light angles at different views
  • Soft and comfortable auxiliary lighting characteristics with no light exposure in spot center
  • No stray light after light cutoff, providing clean and comfortable illumination
  • Natural light interception for better lamp fit in space
Compatible COB Light Sources

Cree, Lumileds, Bridgelux, Citizen, and more

Specifications
Part No Light-emitting Surface FWHM Size (mm) Typ. Eff Material
WT-25@12-M15COBL4-C2 ¢3/¢4mm COB 15° φ24.8×12.5 93% PMMA
WT-25@12-M24-COBL4-C2 ¢4mm COB 24° 88% PC
WT-25@12-M36-COBL4-C2 ¢4mm COB 36° 88% PC
24 Degree Color Mixing PMMA TIR Lens with 88% Efficiency for Smart Control LED Lighting 24 Degree Color Mixing PMMA TIR Lens with 88% Efficiency for Smart Control LED Lighting
Frequently Asked Questions
1) Can I have a sample order?

Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

2) When can I get the quotation?

We usually provide offers within 12 hours after receiving your inquiry. For urgent requests, please call or email us.

3) What is the lead time?

Samples require about 3-5 days for preparation, while mass production typically takes 1-2 weeks.

4) What are your main products?

Our main products are indoor lenses.
