RGBCW Color Mixing LED Lens with PC Material and 36° Light Angle for Smart Control Lighting
RGBCW Color Mixing LED Lens with PC Material and 36° Light Angle for Smart Control Lighting
Specifications
Brand Name :
Wisertop
Model Number :
WT-29@14-M36COBL6-C2(PC)
Certification :
Rohs
Place of Origin :
China
MOQ :
1pc
Price :
Shenzhen Wisertop Technology Co.,Ltd
Supply Ability :
100,000 day
Delivery Time :
1-2 weeks
Packaging Details :
Master carton
Material :
PC
Lens type :
TIR Lens
Efficiency :
88%
Certificates :
Rohs
Working temperature :
-40°C~+90°C
Light source :
Brand COB leds as Cree Osram Lumileds Bridgelux...
Description
RGBCW Color Mixing LED TIR Lens PC Material For Smart Control Light VA 36°
Product Overview

RGBCW color mixing lens made from PC material for smart control lighting applications. Features a 29mm lens diameter with 36° viewing angle, designed for superior color mixing performance and optical efficiency.

Applications
  • Spot lights
  • Down lights
  • Tracking lights
  • Recessed lamps
  • Ceiling lights
Lens Features
  • Excellent color mixing characteristics compatible with various two-color chip arrangements and multi-color light sources
  • Minimal color drift after lens application (single color light source color drift ≤ 0.5SDCM)
  • Clearly distinguishable light angles at different viewing positions
  • Soft and comfortable auxiliary lighting with no center spot light exposure
  • Natural light interception for better lamp fit and space integration
  • No stray light after cutoff, providing clean and comfortable illumination
Compatible Light Sources

Designed to fit COB light sources from leading manufacturers including Cree, Lumileds, Bridgelux, Citizen, and others.

Technical Specifications
Part No. Light-emitting Surface FWHM Size (mm) Typical Efficiency Material
WT-29@14-M15ECOBL6-C2 ¢3/¢4mm COB 15° φ28.8×14.5 93% PMMA
WT-29@14-M15ECOBL6-C2(PC) ¢3/¢4mm COB 15° - 88% PC
WT-29@14-M24JCOBL6-C2 ¢4mm COB 36° - 88% PMMA
WT-29@14-M24JCOBL6-C2(PC) ¢4mm COB 24° - 93% PC
WT-29@14-M36COBL6-C2 ¢4mm COB 24° - 88% PMMA
WT-29@14-M36COBL6-C2(PC) ¢4mm COB 36° - 93% PC
WT-29@14-M50COBL6-C2 ¢4mm COB 36° - 88% PMMA
WT-29@14-M50COBL6-C3(PC) ¢4mm COB 50° - 93% PC

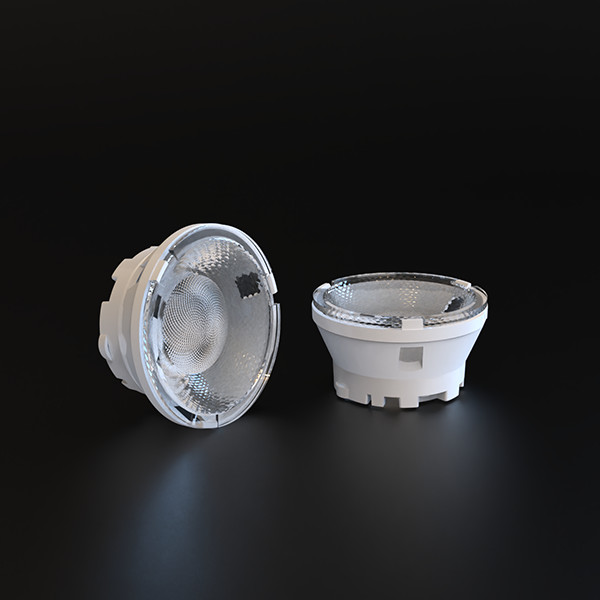

Product Images
RGBCW Color Mixing LED Lens with PC Material and 36° Light Angle for Smart Control Lighting RGBCW Color Mixing LED Lens with PC Material and 36° Light Angle for Smart Control Lighting
Frequently Asked Questions
Can I have a sample order?

Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

When can I get the quotation?

We usually provide quotations within 12 hours after receiving your inquiry. For urgent requests, please call or email us directly.

What is the lead time?

Samples require approximately 3-5 days for preparation. Mass production typically takes 1-2 weeks.

What are your main products?

Our main products are indoor LED lenses for various lighting applications.
