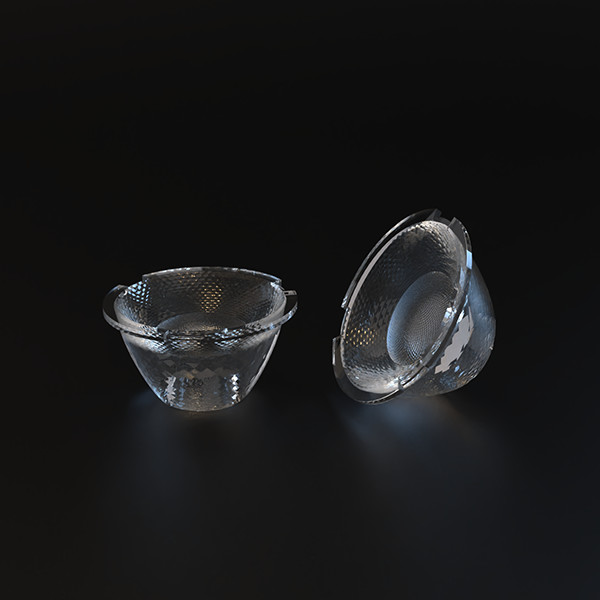

Dual Color Mixing LED Optics Lens with 15° Beam Angle and 93% Efficiency for Recessed Lights
Dual Color Mixing LED Optics Lens with 15° Beam Angle and 93% Efficiency for Recessed Lights
Specifications
Brand Name :
Wisertop
Model Number :
WT-32@16-M15COBL6-C2
Certification :
Rohs
Place of Origin :
China
MOQ :
1pc
Price :
Shenzhen Wisertop Technology Co.,Ltd
Supply Ability :
100,000 day
Delivery Time :
1-2 weeks
Packaging Details :
Master carton
Material :
PMMA
Lens type :
TIR Lens
Efficiency :
93%
Certificates :
Rohs
Working temperature :
-40°C~+70°C
Light source :
Brand COB leds as Cree Osram Lumileds Bridgelux...
Description
Dual Color Mixing LED Optics Lenses PMMA Material VA 15° For Recessed Light
Product Overview

Dual-color mixing lens made from PMMA material with smart control light VA 15° for recessed light applications. Designed for diameter 32mm fixtures.

Applications

Spot light, Down light, Tracking light, Recessed lamp, Ceiling light

Lens Material

PMMA (all variations available)

Lens Features
  • Excellent color mixing characteristics compatible with various two-color chip arrangements and some multi-color arrangement light sources
  • Minimal lamp color drift after lens application - single color light source color drift no more than 0.5SDCM
  • Clearly distinguishable light angles at different views
  • Soft and comfortable auxiliary lighting characteristics with no light exposure in the center of the spot
  • No stray light after light cutoff, providing clean and comfortable illumination
  • Natural light interception for better lamp fit within space
Compatible COB Light Sources

Cree, Lumileds, Bridgelux, Citizen, and others

Specifications
Part No Light-emitting Surface FWHM Size (mm) Typ. Eff Material
WT-32@16-M15COBL6-C2 ¢4mm COB 15° φ31.8×16 93% PMMA
WT-32@16-M24COBL6-C2 ¢4mm COB 24° φ31.8×16 93% PMMA
WT-32@16-M36COBL6-C2 ¢4mm COB 36° φ31.8×16 93% PMMA
Dual Color Mixing LED Optics Lens with 15° Beam Angle and 93% Efficiency for Recessed Lights Dual Color Mixing LED Optics Lens with 15° Beam Angle and 93% Efficiency for Recessed Lights
Frequently Asked Questions
1) Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
2) When can I get the quotation?
We usually provide quotations within 12 hours after receiving your inquiry. For urgent requests, please call or email us.
3) What is the lead time?
Samples require about 3-5 days for preparation. Mass production typically takes 1-2 weeks.
4) What are your main products?
Our main products are indoor LED lenses and optics.
