RGBCW Color Mixing LED Lens with 36° Spot Light and High Efficiency 93% for COB LEDs
RGBCW Color Mixing LED Lens with 36° Spot Light and High Efficiency 93% for COB LEDs
Specifications
Brand Name :
Wisertop
Model Number :
WT-35@17-M36COBL6-C2
Certification :
Rohs
Place of Origin :
China
MOQ :
1pc
Price :
Shenzhen Wisertop Technology Co.,Ltd
Supply Ability :
100,000 day
Delivery Time :
1-2 weeks
Packaging Details :
Master carton
Material :
PMMA OR PC
Lens type :
TIR Lens
Efficiency :
88%-93%
Certificates :
Rohs
Working temperature :
-40°C~+90°C
Light source :
Brand COB leds as Cree Osram Lumileds Bridgelux...
Description
RGBCW Color Mixing PC Plastic LED Lens VA 36° Spot Light Lens
Product Overview

RGBCW color-mixing lens made from PC material with smart control light capability. Features VA 36° spot light with 35mm diameter.

Applications

Spot light, Down light, Tracking light, Recessed lamp, Ceiling light

Lens Features
  • Excellent color mixing characteristics compatible with various two-color chip arrangements and multi-color arrangement light sources
  • Minimal lamp color drift after lens application (single color light source color drift ≤ 0.5SDCM)
  • Clearly distinguishable light angles at different views
  • Soft and comfortable auxiliary lighting characteristics with no light exposure in spot center
  • No stray light after light cutoff, providing clean and comfortable illumination
  • Natural light interception for better lamp fit in space
Compatible COB Light Sources

Cree, Lumileds, Bridgelux, Citizen, and more

Specifications
Part No. Light-emitting Surface FWHM Size (mm) Typ. Eff Material
WT-35@17-M15ECOBL6-C2 ¢4mm COB 15° φ34.8×17.55 93% PMMA
WT-35@17-M24JCOBL6-C2 ¢6mm COB 24° 93% PMMA
WT-35@17-M24JCOBL6-C2(PC) ¢6mm COB 24° 88% PC
WT-35@17-M36COBL6-C2 ¢6mm COB 36° 93% PMMA
WT-35@17-M36COBL6-C2(PC) ¢6mm COB 36° 88% PC
WT-35@17-M50COBL6-C2 ¢6mm COB 50° 93% PMMA
WT-35@17-M50COBL6-C2(PC) ¢6mm COB 50° 88% PC

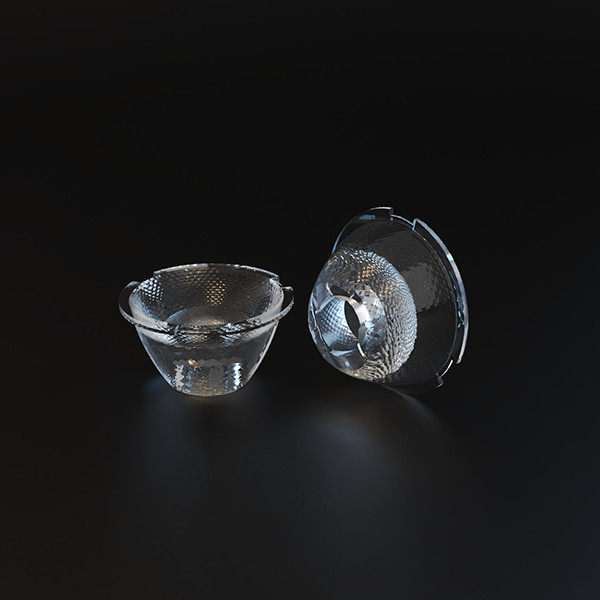

Product Images
RGBCW Color Mixing LED Lens with 36° Spot Light and High Efficiency 93% for COB LEDs RGBCW Color Mixing LED Lens with 36° Spot Light and High Efficiency 93% for COB LEDs
Frequently Asked Questions
Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
When can I get the quotation?
We usually provide offers within 12 hours after receiving your inquiry. For urgent requests, please call or email us.
What is the lead time?
Samples require about 3-5 days for preparation, while mass production typically takes 1-2 weeks.
What are your main products?
Our main products are indoor lenses.
