Bio Color Mixing Downlight Lens with 50° Beam Angle and PMMA Material for Smart Control Lighting
Bio Color Mixing Downlight Lens with 50° Beam Angle and PMMA Material for Smart Control Lighting
Specifications
Brand Name :
Wisertop
Model Number :
WT-35@17-M50COBL6-C2
Certification :
Rohs
Place of Origin :
China
MOQ :
1pc
Price :
Shenzhen Wisertop Technology Co.,Ltd
Supply Ability :
100,000 day
Delivery Time :
1-2 weeks
Packaging Details :
Master carton
Material :
PMMA OR PC
Lens type :
TIR Lens
Efficiency :
88%-93%
Certificates :
Rohs
Working temperature :
-40°C~+90°C
Light source :
Brand COB leds as Cree Osram Lumileds Bridgelux...
Description
Bio Color Mixing Downlight Lens For Smart Control Light VA 50° Diameter 35mm
Product Overview

Bio-color mixing lens made from PC material for smart control lighting applications. Features VA 50° beam angle and 35mm diameter, designed for optimal performance in downlight and recessed lighting systems.

Applications
  • Spot light
  • Down light
  • Tracking light
  • Recessed lamp
  • Ceiling light
Lens Features
  • Excellent color mixing characteristics compatible with various two-color chip arrangements and multi-color light sources
  • Minimal color drift - single color light source color drift no more than 0.5SDCM after lens
  • Clearly distinguishable light angles at different views
  • Soft and comfortable auxiliary lighting characteristics with no light exposure in spot center
  • No stray light after cutoff, providing clean and comfortable illumination
  • Natural light interception for better lamp fit in space
Compatible Light Sources

Fits COB light sources from major manufacturers including Cree, Lumileds, Bridgelux, Citizen, and others.

Specifications
Part No Light-emitting Surface FWHM Size (mm) Typ. Eff Material
WT-35@17-M15ECOBL6-C2 ¢4mm COB 15° φ34.8×17.55 93% PMMA
WT-35@17-M24JCOBL6-C2 ¢6mm COB 24° - 93% PMMA
WT-35@17-M24JCOBL6-C2(PC) ¢6mm COB 24° - 88% PC
WT-35@17-M36COBL6-C2 ¢6mm COB 36° - 93% PMMA
WT-35@17-M36COBL6-C2(PC) ¢6mm COB 36° - 88% PC
WT-35@17-M50COBL6-C2 ¢6mm COB 50° - 93% PMMA
WT-35@17-M50COBL6-C2(PC) ¢6mm COB 50° - 88% PC

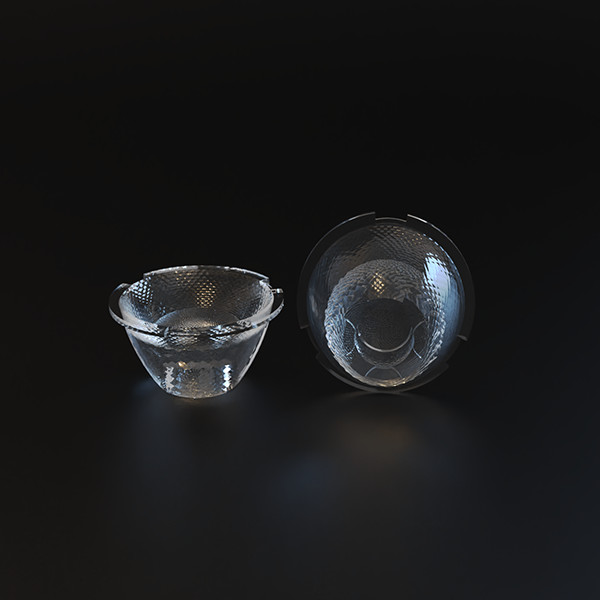

Product Images
Bio Color Mixing Downlight Lens with 50° Beam Angle and PMMA Material for Smart Control Lighting Bio Color Mixing Downlight Lens with 50° Beam Angle and PMMA Material for Smart Control Lighting
Frequently Asked Questions
Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
When can I get the quotation?
We usually provide quotations within 12 hours after receiving your inquiry. For urgent requests, please call or email us.
What is the lead time?
Samples require about 3-5 days for preparation. Mass production typically takes 1-2 weeks.
What are your main products?
Our main products are indoor lenses for various lighting applications.
