Outdoor 50mm Diameter 360 DMX RGB Pixel Light Tube with 120 LEDs
Outdoor 50mm Diameter 360 DMX RGB Pixel Light Tube with 120 LEDs
Outdoor 50mm Diameter 360 DMX RGB Pixel Light Tube with 120 LEDs
Outdoor 50mm Diameter 360 DMX RGB Pixel Light Tube with 120 LEDs
Outdoor 50mm Diameter 360 DMX RGB Pixel Light Tube with 120 LEDs
Outdoor 50mm Diameter 360 DMX RGB Pixel Light Tube with 120 LEDs
Outdoor 50mm Diameter 360 DMX RGB Pixel Light Tube with 120 LEDs
Outdoor 50mm Diameter 360 DMX RGB Pixel Light Tube with 120 LEDs
Outdoor 50mm Diameter 360 DMX RGB Pixel Light Tube with 120 LEDs
Outdoor 50mm Diameter 360 DMX RGB Pixel Light Tube with 120 LEDs
Outdoor 50mm Diameter 360 DMX RGB Pixel Light Tube with 120 LEDs
Outdoor 50mm Diameter 360 DMX RGB Pixel Light Tube with 120 LEDs
Specifications
Brand Name :
Ledcolourlight
Model Number :
LCL-RGB-3DVT50-1000-DMX-24V-12020
Certification :
CE, RoHs
Place Of Origin :
Shenzhen
MOQ :
5
Payment Terms :
T/T,PayPal,Western Union
Product Type :
DMX LED Tube Light
Diameter :
50mm
Length :
0.3m to 3m
Led Type :
SMD5050 RGB
LED Quantity :
120 LEDs/m
Pixel Quantity :
20 pixels/m
Control Protocol :
DMX512 /SPI
Voltage :
DC24V
Power :
24W/m
Waterproof :
IP65
Warranty :
2 year
Lifespan :
50000 hours
Description
Outdoor 50mm Diameter 360 DMX RGB Pixel Light Tube with 120 LEDs
Outdoor 50mm Diameter 360 DMX RGB Pixel Light Tube with 120 LEDs

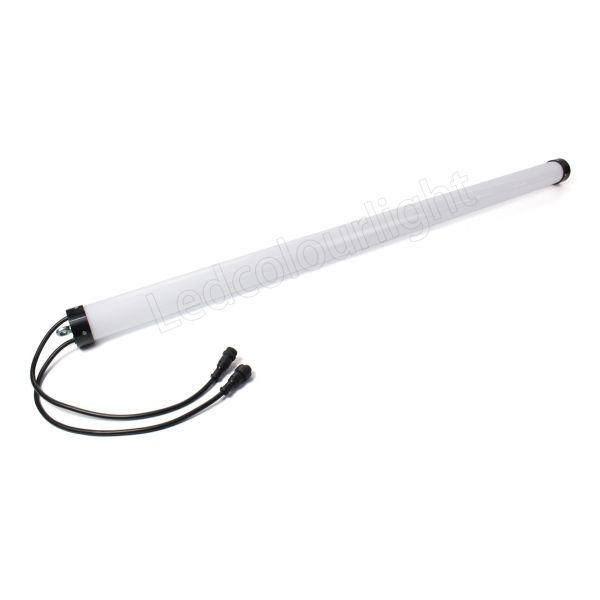

The RGB 3D LED Pixel Tube is a high-performance programmable lighting solution designed to create vivid and dynamic visual effects. With individually addressable RGB control, it offers outstanding brightness and rich color variation, making it a perfect choice for both indoor and outdoor projects that require striking and immersive lighting displays.

Key Features
  1. High-Density Pixel Control: 120 LEDs/m with 20 pixels/m, delivering smooth, dynamic DMX512 RGB effects
  2. 3D Diffused Lighting: Milky white housing ensures soft, uniform illumination with no visible hotspots

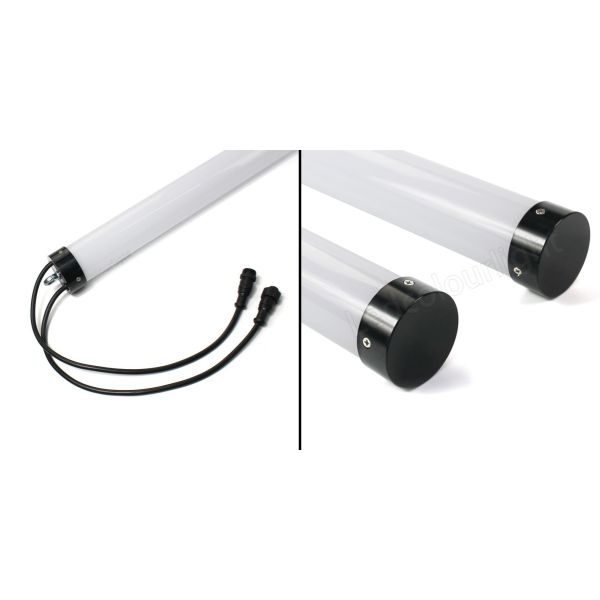

  3. Durable Design: Black end caps provide a clean finish and added protection
  4. Easy Signal Connection: Dual 4-pin input/output cables on one end allow direct connection for quick installation
  5. Custom Cable Length: Standard 1-meter cable, customizable to meet project requirements
  6. Flexible Length Options: Available from 0.3m to 3m to suit different installation designs
  7. Stable Power Supply: DC24V operation reduces voltage drop, ideal for longer runs
  8. Easy Installation: Compatible with mounting clips for wall, ceiling, or creative structural installations
  9. DMX512 Control: Fully addressable RGB lighting with precise control for complex lighting effects
Technical Parameters
Diameter 50mm
Length 500mm 1000mm 1500mm 2000mm
Light Source SMD5050 RGB
LED Quantity 60 LEDs 120 LEDs 180 LEDs 240 LEDs
Pixel Quantity 10 Pixels 20 Pixels 30 Pixels 40 Pixels
Voltage 24V DC
Power 12W 24W 36W 48W
Control Protocol SPI / DMX512
Material Milky white PC housing
Lifespan 50,000hrs
IP Rating IP65
Application Architectural Lighting, Event, Stage Decoration, Lighting Festival, Public Art Installation

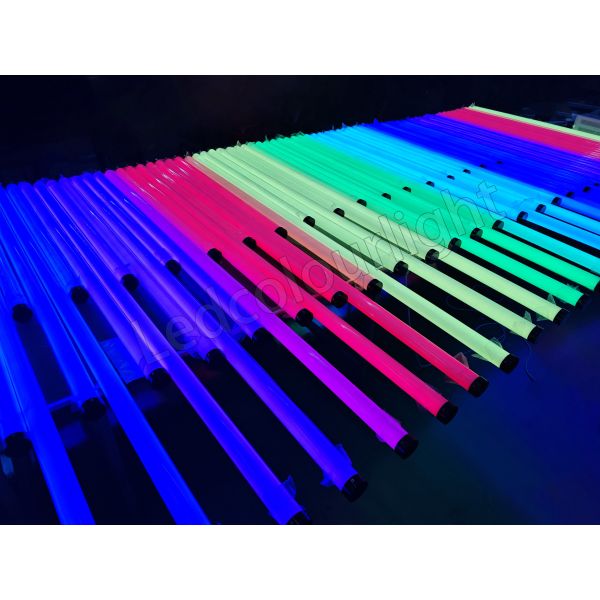

Product Display
Outdoor 50mm Diameter 360 DMX RGB Pixel Light Tube with 120 LEDs
Outdoor 50mm Diameter 360 DMX RGB Pixel Light Tube with 120 LEDs
Outdoor 50mm Diameter 360 DMX RGB Pixel Light Tube with 120 LEDs
Outdoor 50mm Diameter 360 DMX RGB Pixel Light Tube with 120 LEDs
Outdoor 50mm Diameter 360 DMX RGB Pixel Light Tube with 120 LEDs
Outdoor 50mm Diameter 360 DMX RGB Pixel Light Tube with 120 LEDs

Various Lengths Available
Outdoor 50mm Diameter 360 DMX RGB Pixel Light Tube with 120 LEDs

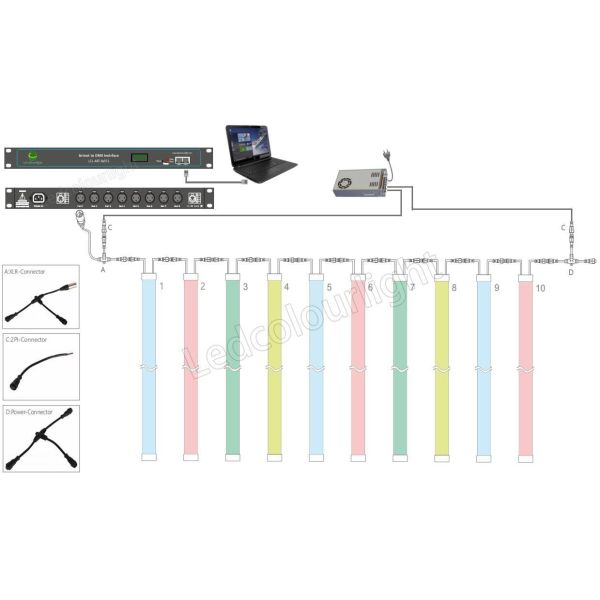

Wiring Diagram
Outdoor 50mm Diameter 360 DMX RGB Pixel Light Tube with 120 LEDs

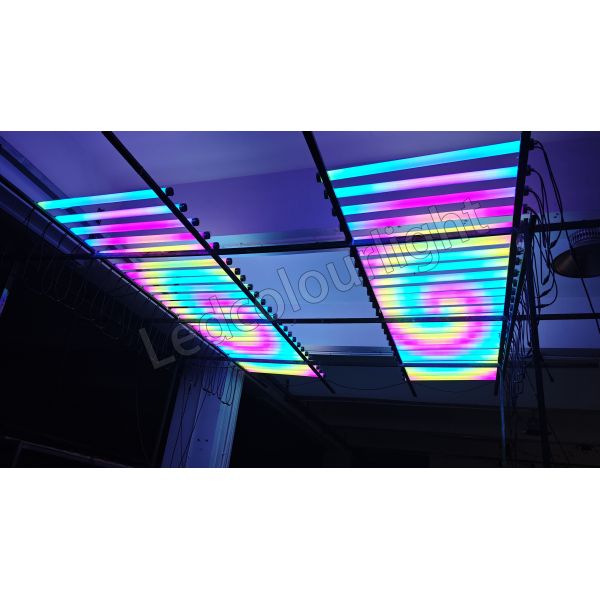

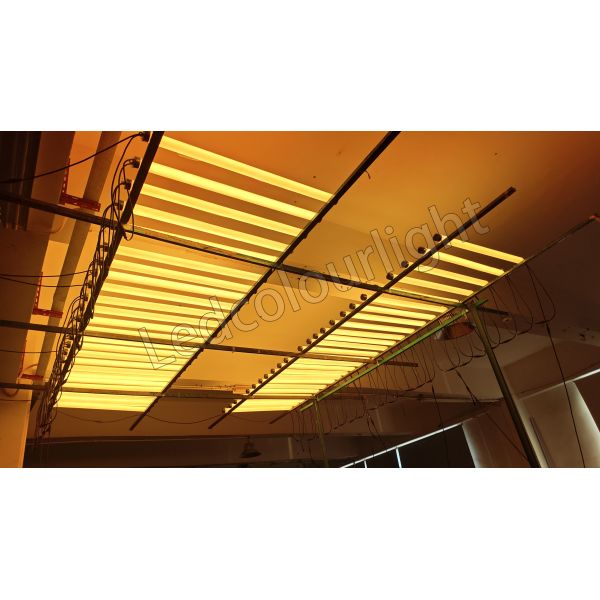

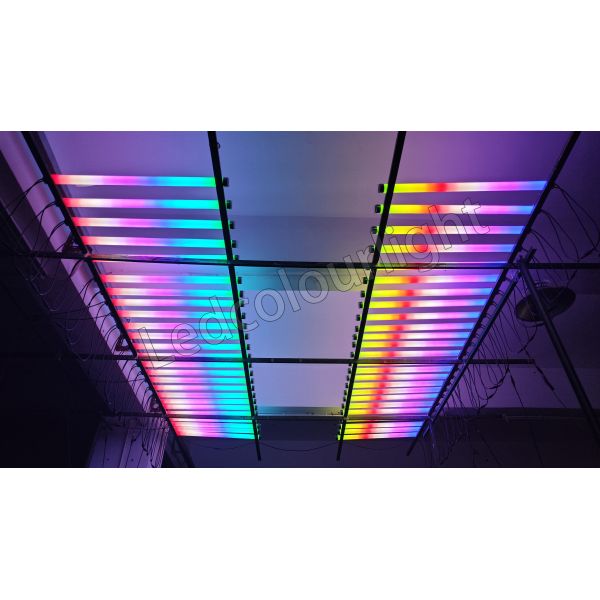

Applications

Ideal for stage lighting, architectural façades, light tunnels, event installations, and immersive visual environments

Outdoor 50mm Diameter 360 DMX RGB Pixel Light Tube with 120 LEDs

Support and Services

We offer professional customization services, including varying lengths, pixel densities, and color configurations. Our engineering team provides tailored solutions to meet specific project requirements with minimum order quantities starting at just 2 units.

Comprehensive technical support includes installation guidance, troubleshooting, firmware updates, and warranty coverage. We provide detailed manuals, wiring diagrams, and compatible control software for seamless integration into existing lighting systems.

Packing and Shipping

Product Packaging: Each LED Pixel Tube is carefully packed in a sturdy, custom-designed box to ensure maximum protection during transit.

Shipping: We offer worldwide shipping with reliable carriers to ensure your LED Pixel Tube arrives safely and on time. Orders are processed within 1-2 business days and shipped with tracking information provided. For bulk orders, please contact our sales team for customized shipping options and rates. We also provide insurance options to protect your purchase during shipment.

Outdoor 50mm Diameter 360 DMX RGB Pixel Light Tube with 120 LEDs

Frequently Asked Questions
Q1: What is the available length of the LED Pixel Tube?
A1: It has 500mm, 1000mm, 1500mm, 2000mm, and customized lengths.
Q2: Where is the LED Pixel Tube manufactured?
A2: The LED Pixel Tube is manufactured in Shenzhen.

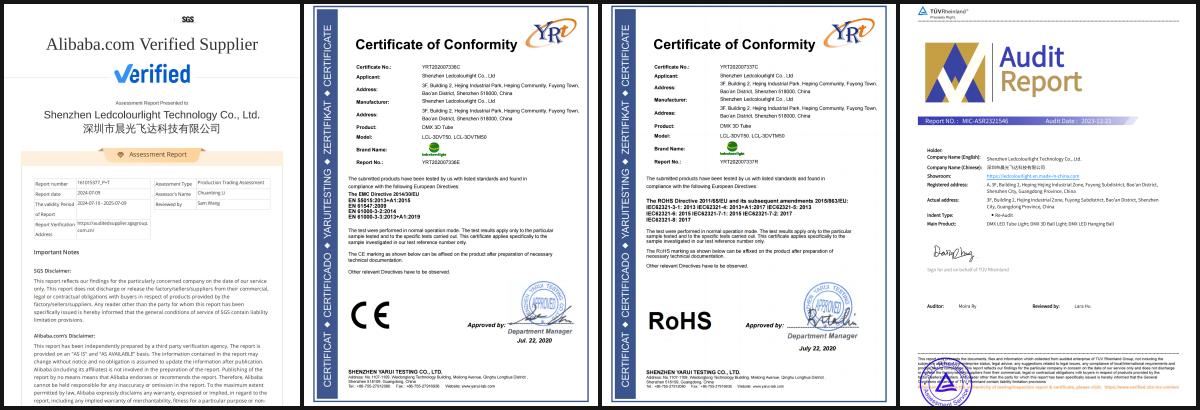

Q3: What certifications does the LED Pixel Tube have?
A3: The LED Pixel Tube is certified with CE and RoHS.
Q4: What is the minimum order quantity for the LED Pixel Tube?
A4: The minimum order quantity for the LED Pixel Tube is 2 pieces.
Q5: What are the packaging details and delivery time for the LED Pixel Tube?
A5: The LED Pixel Tubes are packaged 24 tubes per carton with carton dimensions of 115*38*27cm. Delivery time for orders less than 1000 pieces is approximately 12 to 15 days.
Q6: What payment methods are accepted for purchasing the LED Pixel Tube?
A6: Payment methods accepted include T/T, PayPal, and Western Union.
Q7: What is the monthly supply capacity of the LED Pixel Tube?
A7: The supply ability is 3000 pieces per month.
