Specifications
LED Qty :
120 PCS
Address Setting :
Manual/Auto
MOQ :
10
Pixels :
20 Pixels
Control :
DMX/SPI
Certification :
CE & RoHS
Delivery Time :
12~15 Working Days
Model Number :
LCL-RGB-3DVT50-1000-24V-12020
Model :
LCL-RGB-3DVT50-1000-24V-12020
Color :
RGB (RGBW is available)
Voltage :
DC24V
Payment Terms :
T/T,PayPal,Credit Card
Place of Origin :
Shenzhen, China
Light Source :
SMD5050 LED
IP Rate :
IP65
Material :
Milky White PC & POM End-caps
Packaging Details :
Normal Cartons
Size :
1000x50mm
Lifespan :
50000 Hours
Brand Name :
Ledcolourlight
Power :
24W
Supply Ability :
50000pcs/month
Product Name :
DMX LED Pixel 3D Tube
Description

DMX LED 3D Pixel Tube LED Tunnel Tube 3D Cube Design 1000x50mm

360-degree lighting | 3D shape design

IP65 LED Pixel Cube DMX 3D Tube LED Tunnel Tube Light RGB Stage Lighting

Product Specification

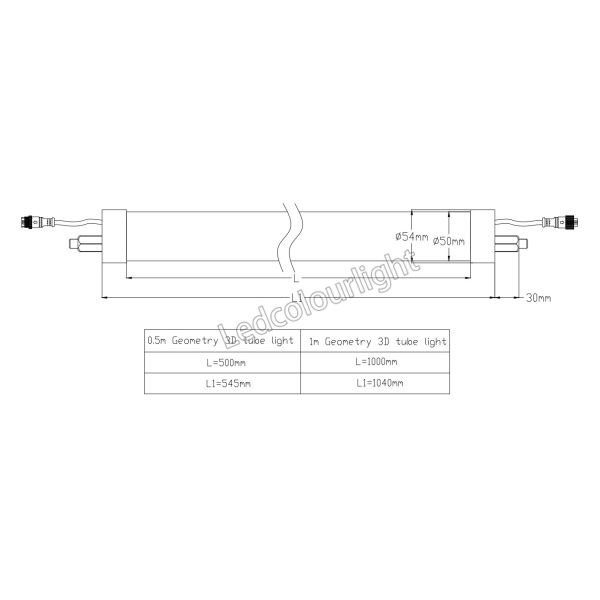

⬥ Tube diameter: 50mm.

⬥ Length options: 500mm, 1000mm, 1500mm, 2000mm.

⬥ Milky white PC housing, featuring a double tubing design - no dark areas when lighting, invisible LED dots.

⬥ High-precision constant-current driver IC - consistent light emission, uniform color, 360° emission angle.

⬥ Standard DMX protocol - fully compatible with Madrix and other Art-net software for programmable 3D effects.

⬥ Suitable for the park landscape lighting, bars and KTVs, stage lighting, nightclub entertainment, and other venues.

IP65 LED Pixel Cube DMX 3D Tube LED Tunnel Tube Light RGB Stage Lighting

Model
LCL-RGB-3DVT50-500-24V-6010
LCL-RGB-3DVT50-1000-24V-12020
LCL-RGB-3DVT50-1500-24V-18030
LCL-RGB-3DVT50-2000-24V-24040
Size
500×Ø50mm
1000×Ø50mm
1500×Ø50mm
2000×Ø50mm
LED Light Source
SMD RGB 5050
SMD RGB 5050
SMD RGB 5050
SMD RGB 5050
LED QTY
60PCS
120PCS
180PCS
240PCS
LED Pixels
10Pixels
20Pixels
30Pixels
40Pixels
Emitting Angle
360°
360°
360°
360°
Power
12W
24W
36W
48W
Input Voltage
DC24V
DC24V
DC24V
DC24V
Control
DMX/SPI
DMX/SPI
DMX/SPI
DMX/SPI
Address Setting
Manual/Auto
Manual/Auto
Manual/Auto
Manual/Auto
Operating Temperature
-40−50°c
-40−50°c
-40−50°c
-40−50°c
Storage Temperature
−40−80°c
−40−80°c
−40−80°c
−40−80°c
IP
IP65
IP65
IP65
IP65

3D Shaped Installation

IP65 LED Pixel Cube DMX 3D Tube LED Tunnel Tube Light RGB Stage Lighting

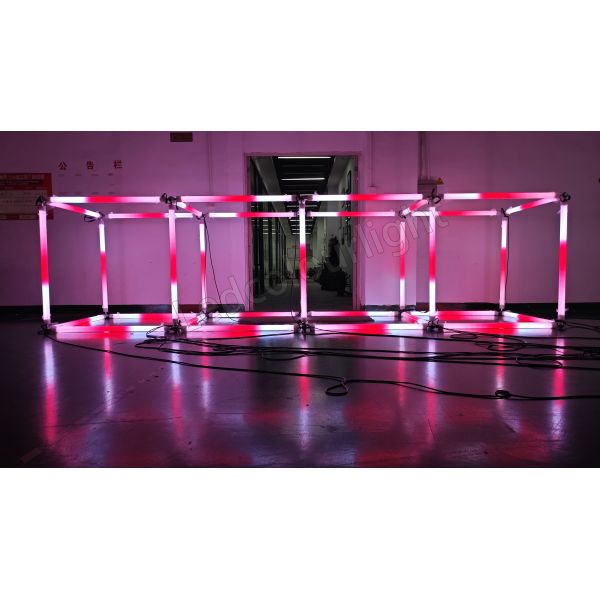

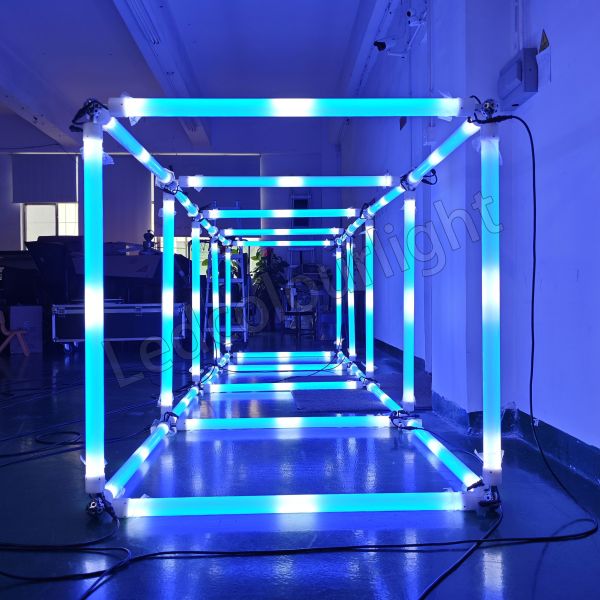

LED Cube Design

IP65 LED Pixel Cube DMX 3D Tube LED Tunnel Tube Light RGB Stage Lighting IP65 LED Pixel Cube DMX 3D Tube LED Tunnel Tube Light RGB Stage Lighting

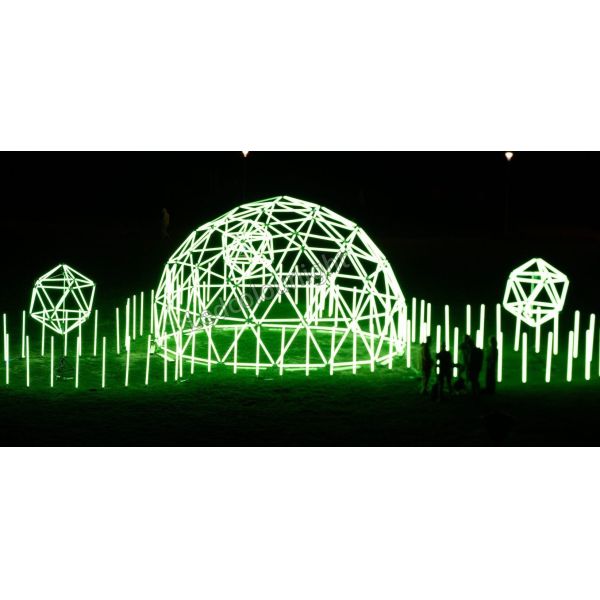

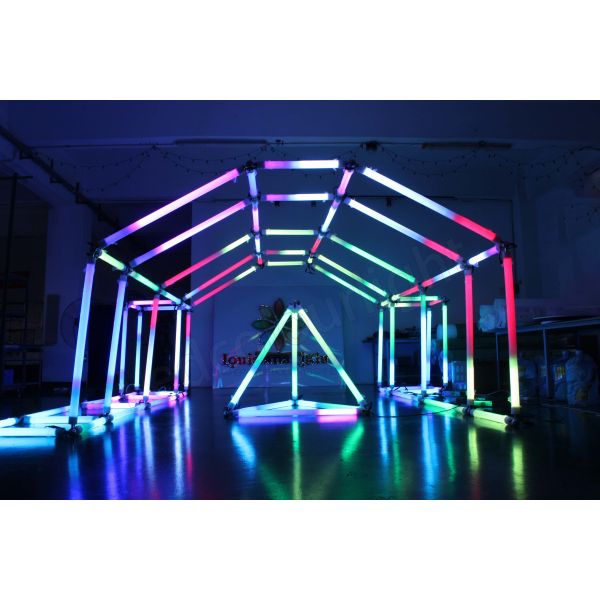

LED Tunnel Design

IP65 LED Pixel Cube DMX 3D Tube LED Tunnel Tube Light RGB Stage Lighting IP65 LED Pixel Cube DMX 3D Tube LED Tunnel Tube Light RGB Stage Lighting

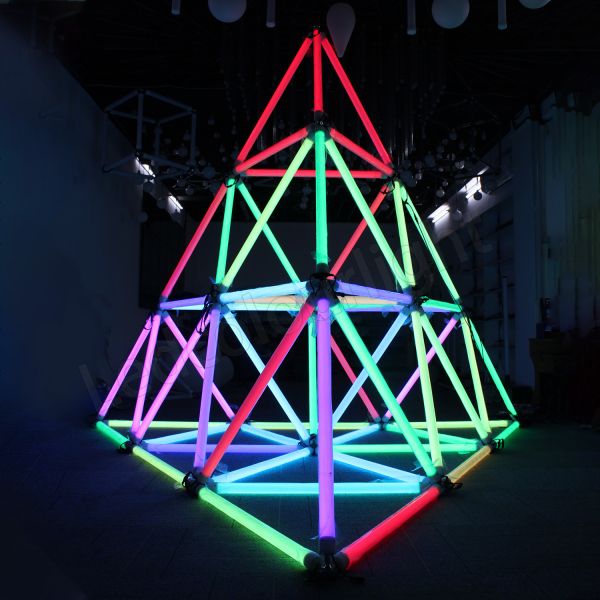

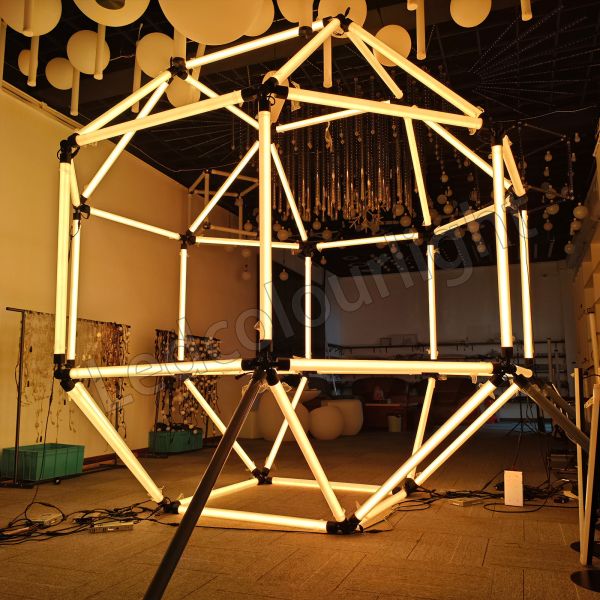

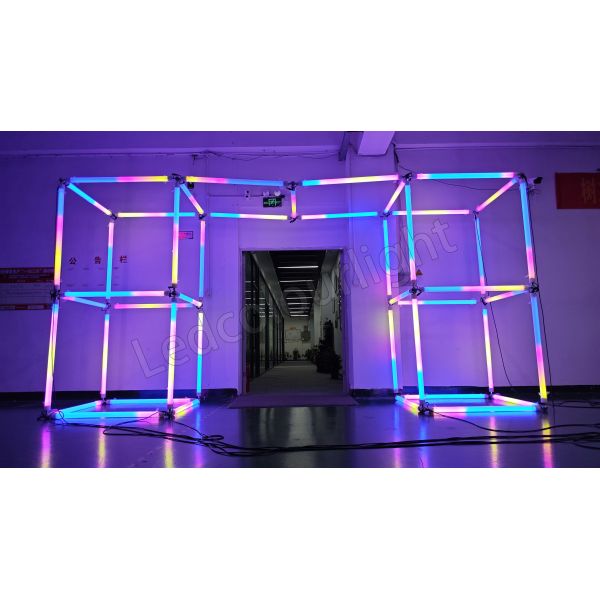

LED 3D Design

IP65 LED Pixel Cube DMX 3D Tube LED Tunnel Tube Light RGB Stage Lighting IP65 LED Pixel Cube DMX 3D Tube LED Tunnel Tube Light RGB Stage Lighting

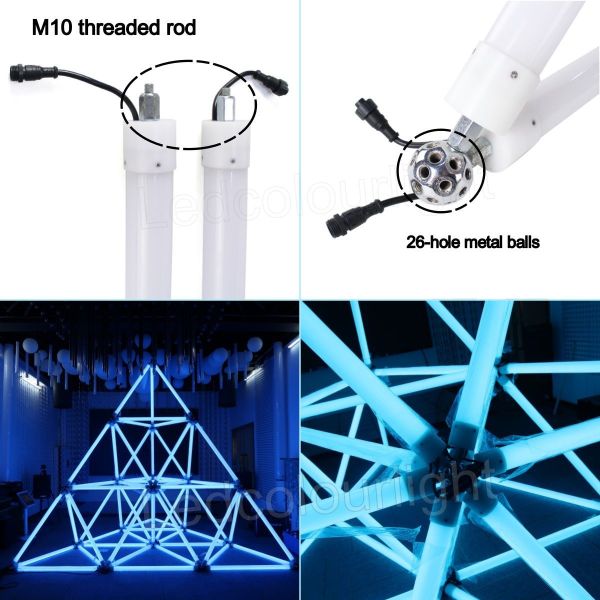

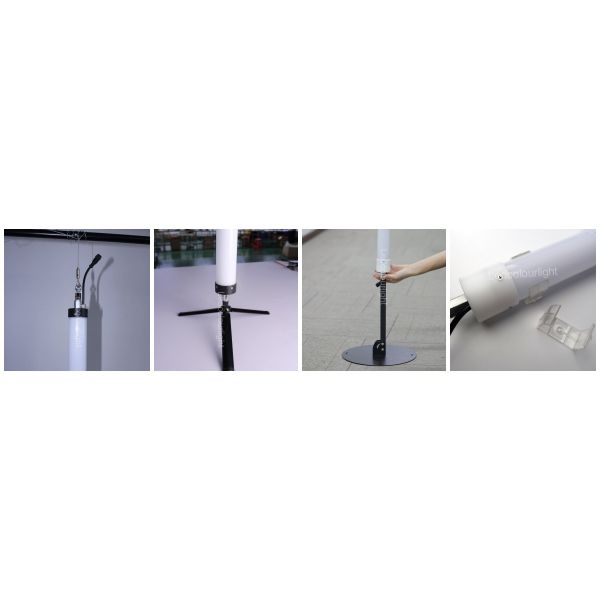

Geometry 3D Tube Light meets different installation requirements

• With an M10 ring for hanging installation

• With an adjusting nut that can be used with the tripods.

• The round standing base with adjustable angle, for standing installation.

• Offering the mounting brackets to install on the wall.

IP65 LED Pixel Cube DMX 3D Tube LED Tunnel Tube Light RGB Stage Lighting

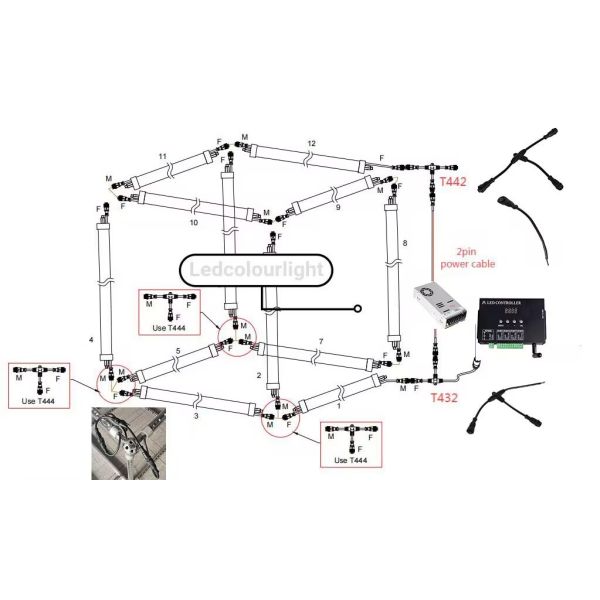

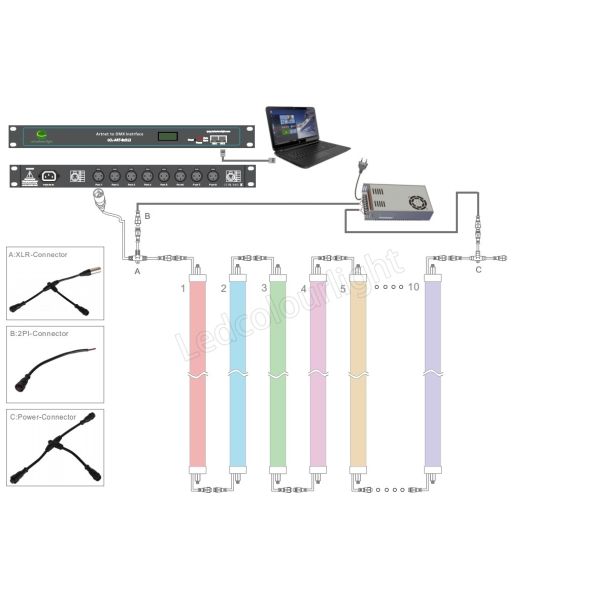

Connection Diagram

Accessories including multi-hole connecting balls, Art-net controller, Meanwell power supply, signal and power cables.

IP65 LED Pixel Cube DMX 3D Tube LED Tunnel Tube Light RGB Stage Lighting

IP65 LED Pixel Cube DMX 3D Tube LED Tunnel Tube Light RGB Stage Lighting

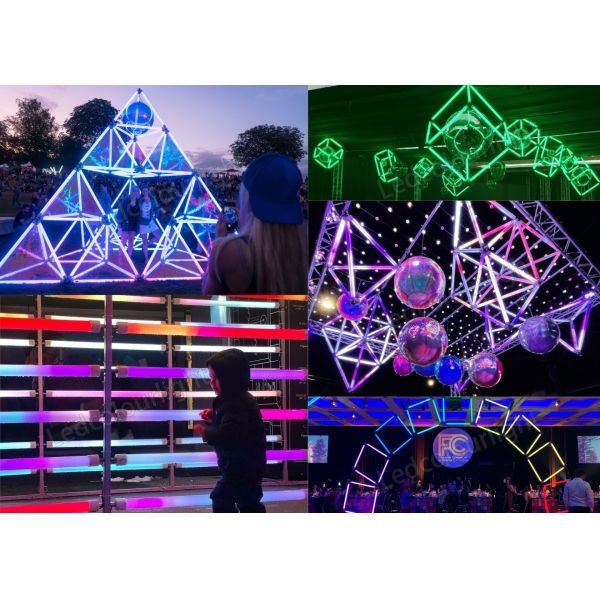

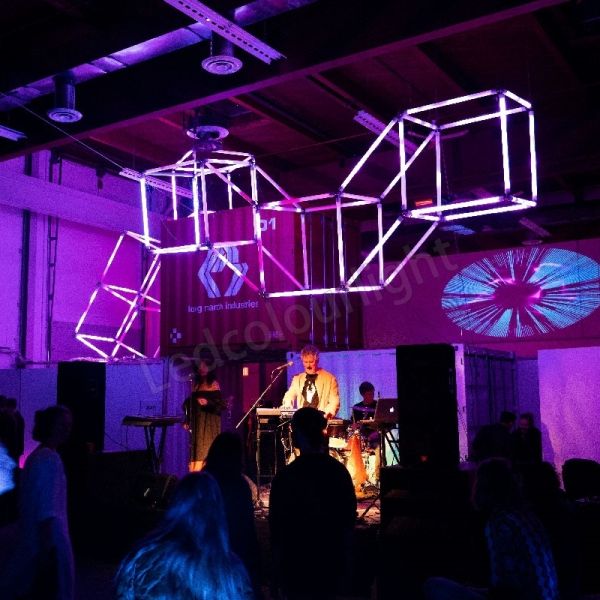

Applications

► Suitable for the park landscape lighting, bars and KTVs, stage lighting, nightclub entertainment, holiday & Festival lighting, outdoor events & parties, wedding decoration, lighting art, and other venues.

IP65 LED Pixel Cube DMX 3D Tube LED Tunnel Tube Light RGB Stage Lighting IP65 LED Pixel Cube DMX 3D Tube LED Tunnel Tube Light RGB Stage Lighting

IP65 LED Pixel Cube DMX 3D Tube LED Tunnel Tube Light RGB Stage Lighting

Certifications

Fully compliant with CE and RoHS standards, ensuring safety, environmental responsibility, and smooth market access for EU and global projects.

IP65 LED Pixel Cube DMX 3D Tube LED Tunnel Tube Light RGB Stage Lighting

FAQ

1. Q: Are you a factory or a trading company?
A: We are a factory as a manufacturer.

2. Q: What does your company produce mainly?
A: Ledcolourlight mainly specializes in DMX Lighting products and also provides a full DMX lighting solution for projects.

3. Q: How can I get some samples? Delivery time for samples?
A: If samples are in stock, they can be sent out right away. If no samples are in stock, take 1-3 business days for production.
4. Q: MOQ?
A: 2 pieces per model at least.

5. Q: OEM and ODM available?
A: Yes.

6. Q: Delivery time for a big order?
A: For small orders, 3-6 business days. For a big order, 10-12 business days.

7. Q: Payment Term?
A: PayPal (Less than 1000USD), T/T, Credit Card, Western Union, L/C.

8. Q: Warranty?
A. All products we sell are of good quality and have been tested before they are shipped out. We offer a 2-year Warranty.

9. Q: How about I have never bought any product from China?
A: We will guide you step by step, any potential costs will be listed, and we will provide all the information if needed.
