IP65 Rated DC24V DMX LED Tube Light For Outdoor Stage Event and Building Lighting
IP65 Rated DC24V DMX LED Tube Light For Outdoor Stage Event and Building Lighting
IP65 Rated DC24V DMX LED Tube Light For Outdoor Stage Event and Building Lighting
IP65 Rated DC24V DMX LED Tube Light For Outdoor Stage Event and Building Lighting
IP65 Rated DC24V DMX LED Tube Light For Outdoor Stage Event and Building Lighting
IP65 Rated DC24V DMX LED Tube Light For Outdoor Stage Event and Building Lighting
IP65 Rated DC24V DMX LED Tube Light For Outdoor Stage Event and Building Lighting
IP65 Rated DC24V DMX LED Tube Light For Outdoor Stage Event and Building Lighting
IP65 Rated DC24V DMX LED Tube Light For Outdoor Stage Event and Building Lighting
IP65 Rated DC24V DMX LED Tube Light For Outdoor Stage Event and Building Lighting
IP65 Rated DC24V DMX LED Tube Light For Outdoor Stage Event and Building Lighting
IP65 Rated DC24V DMX LED Tube Light For Outdoor Stage Event and Building Lighting
Specifications
Brand Name :
Ledcolourlight
Model Number :
LCL-DT3047-D6010A
Place Of Origin :
Shenzhen
MOQ :
50
Delivery Time :
8~12 Working Days
Payment Terms :
T/T,PayPal
Place of Origin :
Shenzhen, China
Product name :
DMX LED Tube
Control protocol :
DMX512
LED quantity :
60LEDs/m
Pixel quantity :
10pixels/m
Ip rating :
IP65
Color options :
RGB, RGBW
Lifespan :
50,000 Hours
Installation method :
metal clip, connecting rod, etc.
Operating temperature :
-20°C To 50°C
Power consumption :
15W/M
Description

IP65 Rated DC24V DMX LED Pixel Bar Tube Light

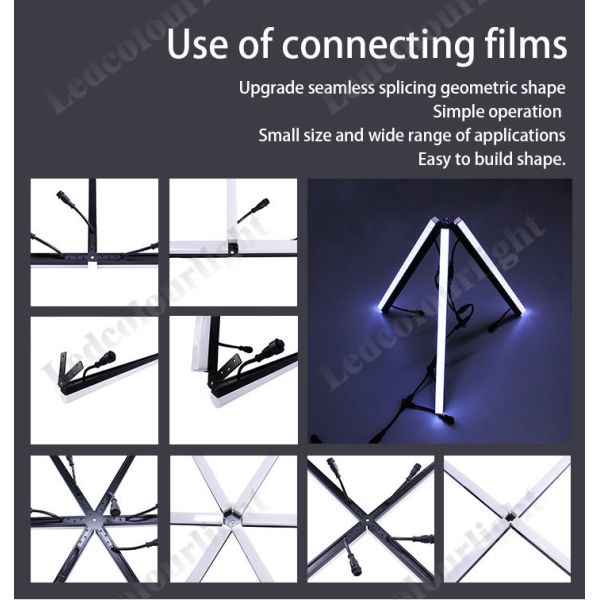

- Various shapes can be created by using different connecting pieces
IP65 Rated DC24V DMX LED Tube Light For Outdoor Stage Event and Building Lighting

Product Overview

The 30×47mm DMX512 RGB LED Tube is a dynamic linear lighting solution. With included connecting pieces, you can build cubes, triangles, and other geometric forms. Choose from 0.5m or 1m lengths, four interchangeable diffusers, and enjoy full DMX512 control. IP65 rated for indoor and outdoor use.

Key Features

  • Creative – Build cubes, triangles, and custom 3D shapes with connecting pieces
  • DMX512 Control – Full RGB control with smooth color mixing and dynamic effects
  • SMD5050 LEDs – 60 LEDs/m or 84LEDs/m for high brightness and rich color

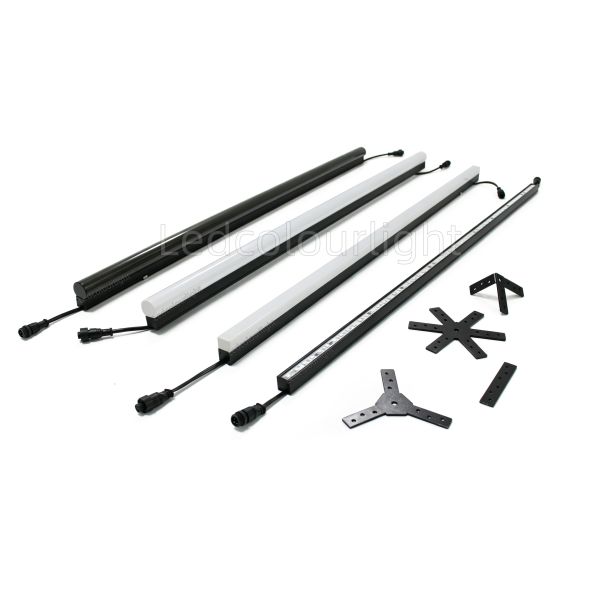

  • Various Diffuser Options – Milky white curved, black curved, square, or transparent/black flat
  • IP65 Rated – Weatherproof for outdoor installations
  • Lengths – Available in 0.5m and 1m
  • High-quality black aluminum base with excellent heat dissipation performance

Technical Specifications

ParameterSpecification
Product NameDMX LED Tube
Lifespan50,000 Hours
Control ProtocolDMX512
Installation Methodmetal clip installation, connector 3D installation, clamp installation, floor-standing installation
Input VoltageDC24V

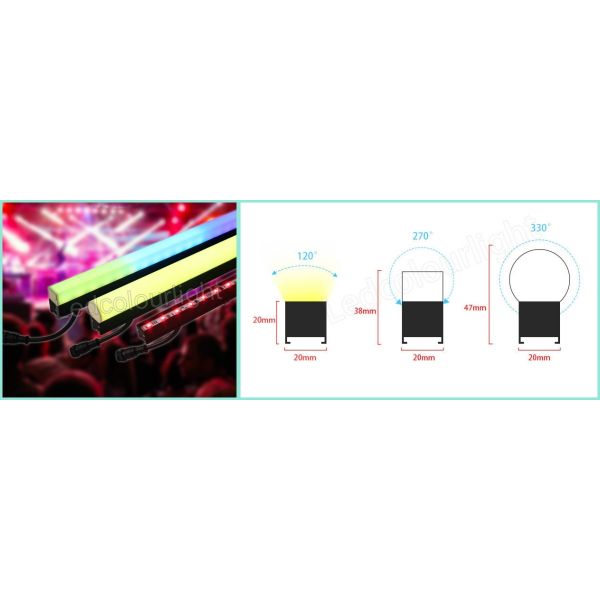

Beam Angle120 / 270 / 330 Degrees
Power Consumption15W/M
MaterialAluminum shell and PC diffuser
Light SourceSMD5050
LED Quantity60 LEDs/m
Pixel Quantity10 Pixels/m
Tube Length1 Meter

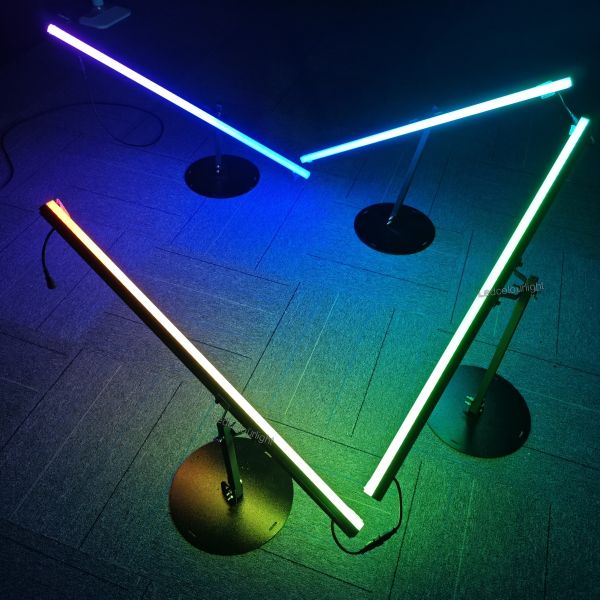

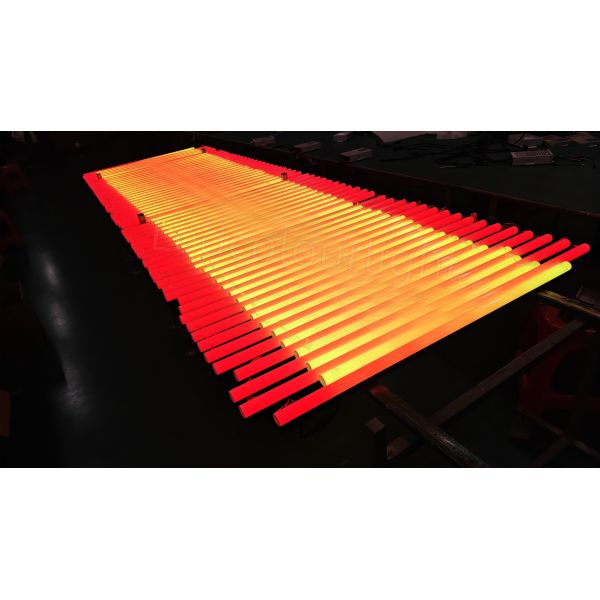

Product Photos

IP65 Rated DC24V DMX LED Tube Light For Outdoor Stage Event and Building Lighting

IP65 Rated DC24V DMX LED Tube Light For Outdoor Stage Event and Building Lighting

IP65 Rated DC24V DMX LED Tube Light For Outdoor Stage Event and Building Lighting

IP65 Rated DC24V DMX LED Tube Light For Outdoor Stage Event and Building Lighting IP65 Rated DC24V DMX LED Tube Light For Outdoor Stage Event and Building Lighting

IP65 Rated DC24V DMX LED Tube Light For Outdoor Stage Event and Building Lighting IP65 Rated DC24V DMX LED Tube Light For Outdoor Stage Event and Building Lighting

IP65 Rated DC24V DMX LED Tube Light For Outdoor Stage Event and Building Lighting

IP65 Rated DC24V DMX LED Tube Light For Outdoor Stage Event and Building Lighting

Applications

The Ledcolourlight DMX LED Tube is ideal for architectural lighting projects, entertainment venues, retail spaces, and hospitality environments. Its versatile design makes it perfect for building facades, stage productions, concerts, clubs, and decorative lighting installations.

IP65 Rated DC24V DMX LED Tube Light For Outdoor Stage Event and Building Lighting

Packing & Shipping

Each DMX LED Tube is carefully packaged in standard export boxes with a protective bag. Multiple shipping options are available with tracking information provided.

IP65 Rated DC24V DMX LED Tube Light For Outdoor Stage Event and Building Lighting

Frequently Asked Questions

Q1: What shapes can I create with this LED tube?
A1: With the included connecting pieces, you can build cubes, triangles, polygons, and other custom 2D or 3D structures.
Q2: What diffuser options are available?
A2: Six options – milky white curved (soft glow), black curved (anti-glare), milky white/black square (architectural edge), and transparent/black flat (maximum brightness with visible LED dots).
Q3: How is the tube controlled?
A3: Standard DMX512 protocol. Supports individual addressable control for smooth RGB mixing, chases, fades, and custom programming.
Q4: What lengths are available?
A4: 0.5m and 1m lengths. Multiple tubes can be connected using the included connecting pieces.
Q5: What payment methods are accepted for purchasing the DMX LED Tube?
A5: The accepted payment methods are T/T (Telegraphic Transfer) and PayPal.
