Specifications
Brand Name :
Ledcolourlight
Model Number :
LCL-DT5060-D6010A
Place Of Origin :
Shenzhen
MOQ :
50
Delivery Time :
8~12 Working Days
Payment Terms :
T/T,PayPal
LED quantity :
60LEDs/m
Pixel quantity :
10 pixels/m
Control protocol :
DMX512
Color options :
RGB, RGBW
Input voltage :
DC24V
Installation method :
Metal Clip Mounted
Material :
Aluminum Shell And PC Diffuser
Beam angle :
120 Degrees
Tube length :
1 Meter
IP rating :
IP65
Power consumption :
13W per meter
Operating temperature :
-20°C To 50°C
Description

Waterproof RGB DMX LED Tube - 50x60mm

Waterproof 50x60mm RGB DMX LED Linear Tube for Stage Facade Lighting

Key Features

  • Aluminum Base – Available in black or silver, durable and heat-dissipating
  • Milky White Curved Diffuser – Soft, even, anti-glare illumination
  • Length Options – 0.5m or 1m per tube
  • Control Protocol Support – DMX512 or SPI (selectable)
  • Remote Control Ready – Works with simple LED controllers for easy operation
  • Pixel Density – 60 LEDs/m, 10 pixels/m for addressable effects
  • IP65 Waterproof – Dust-tight and protected against low-pressure water jets
  • Applications – Architectural facades, outdoor signage, landscape paths, bridges, stage design


Technical Specifications

Parameter Specification
Product Name DMX LED Tube
Tube Length 0.5 Meter 1 Meter
Installation Method Metal Clip Mounted
Beam Angle 120 Degrees
Material Aluminum Shell and PC Diffuser
Control Protocol DMX512 / SPI, like UCS1903
Input Voltage DC12V DC24V DC12V DC24V
LED Quantity 30 30 60 60
Pixel Quantity 10 5 20 10
IP Rating IP65
Color Options RGB, RGBW
Operating Temperature -20°C to 50°C


Product Overview

50×60mm Pixel Tube Light – Aluminum Base, DMX/SPI, IP65

The 50×60mm LED Pixel Tube is a professional-grade linear lighting solution designed for both architectural and decorative applications. It features a sturdy black or silver aluminum base paired with a milky white curved diffuser, delivering a soft, uniform light output with excellent anti-glare performance.

Available in 0.5m and 1m lengths, the tube supports both DMX512 and SPI control protocols, giving you flexibility for complex lighting shows or simple remote-controlled setups. With 60 LEDs per meter and 10 pixels per meter, each tube offers precise addressable control for stunning chases, fades, and color effects.

Rated IP65, this pixel tube is fully weatherproof and suitable for outdoor use – from building facades and landscape lighting to signs, bridges, and stage sets.

Waterproof 50x60mm RGB DMX LED Linear Tube for Stage Facade Lighting

Waterproof 50x60mm RGB DMX LED Linear Tube for Stage Facade Lighting Waterproof 50x60mm RGB DMX LED Linear Tube for Stage Facade Lighting

Waterproof 50x60mm RGB DMX LED Linear Tube for Stage Facade Lighting

Waterproof 50x60mm RGB DMX LED Linear Tube for Stage Facade Lighting Waterproof 50x60mm RGB DMX LED Linear Tube for Stage Facade Lighting

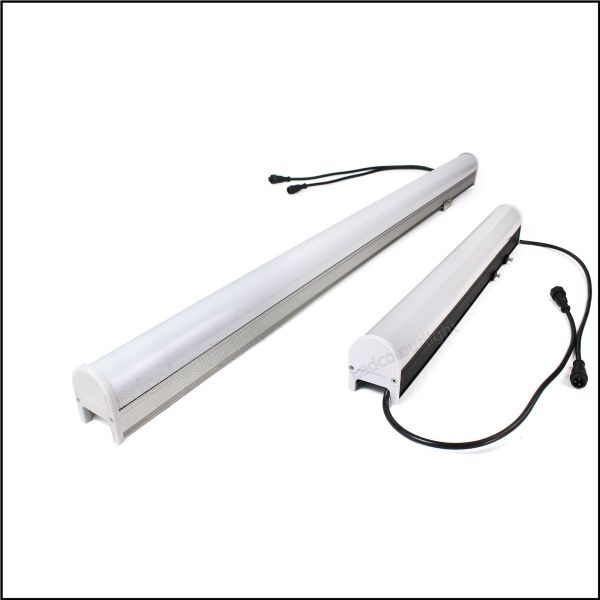

  • 0.5m and 1m in length
  • Black and silver aluminum shell

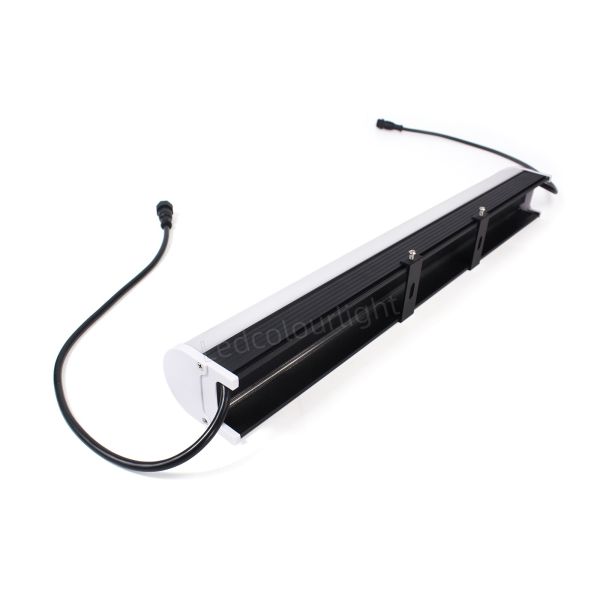

  • Mounting brackets for easy installation

Waterproof 50x60mm RGB DMX LED Linear Tube for Stage Facade Lighting Waterproof 50x60mm RGB DMX LED Linear Tube for Stage Facade Lighting

Product Dimension - 50x60mm pixel tube lights

Waterproof 50x60mm RGB DMX LED Linear Tube for Stage Facade Lighting

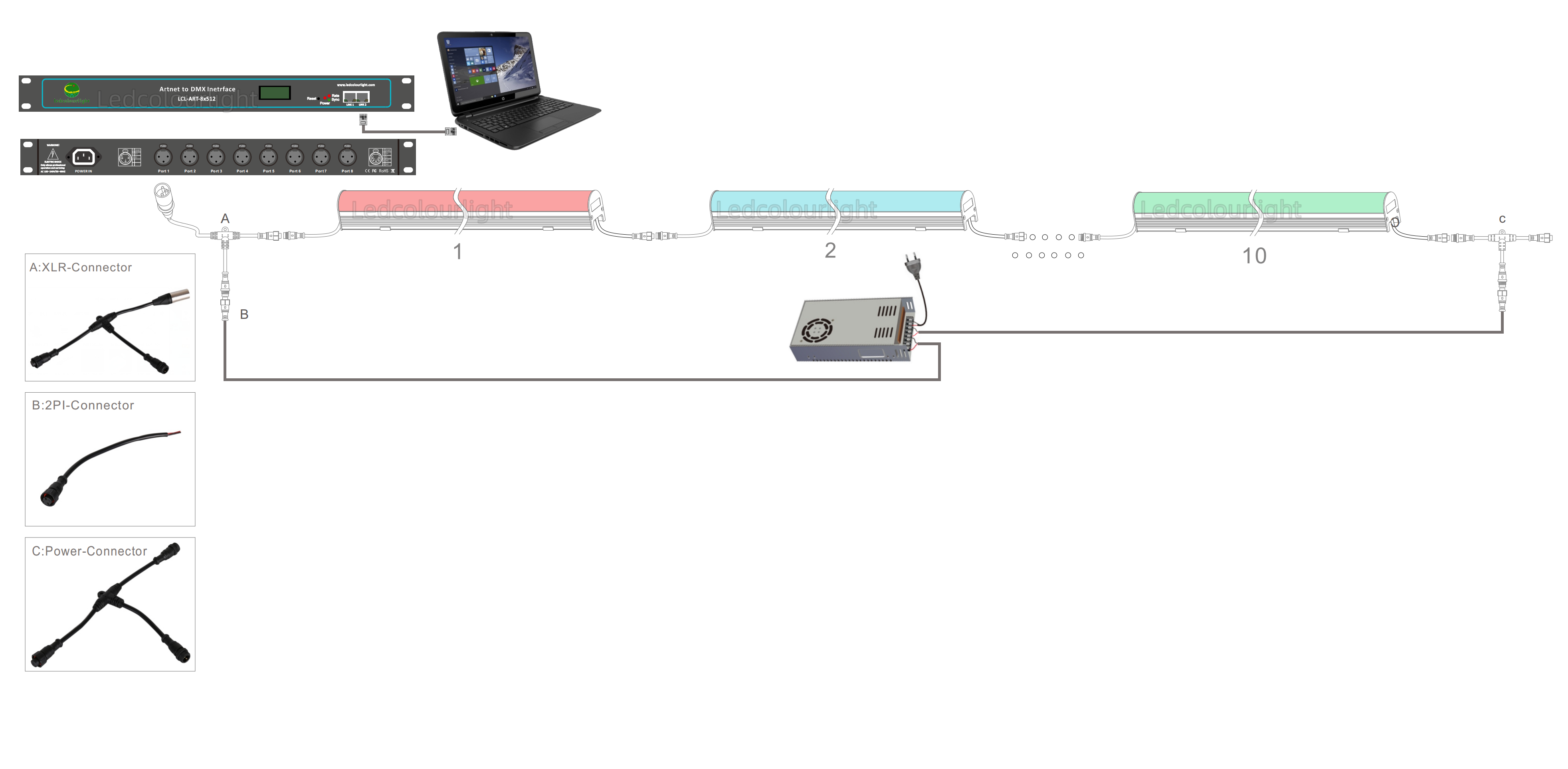

Wiring Diagram

- Standard DMX512 control protocol, works with Art-net controller, compatible with Madrix, Madmapper, Resolume, etc. software

Waterproof 50x60mm RGB DMX LED Linear Tube for Stage Facade Lighting

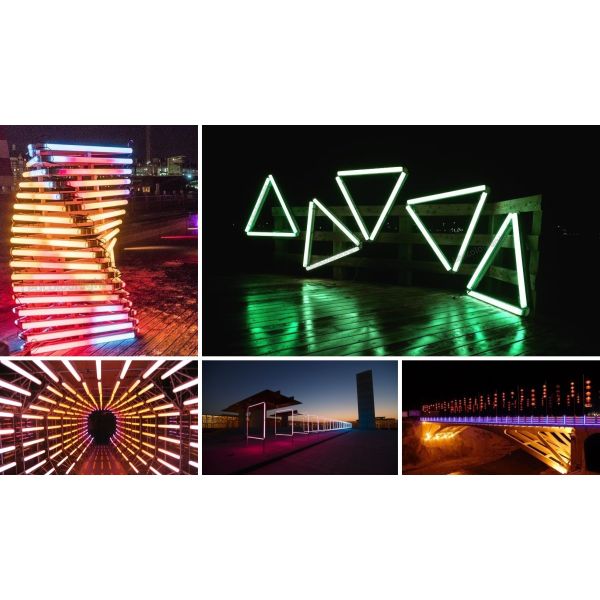

Applications

The DMX LED Tube excels in various lighting scenarios, including architectural lighting for building facades, stage and event lighting, urban lighting projects for bridges and public spaces, and commercial applications in hotels, shopping malls, and entertainment venues.

Waterproof 50x60mm RGB DMX LED Linear Tube for Stage Facade Lighting

Frequently Asked Questions

Q1: What is the pixel density?
A1: 60 LEDs per meter and 10 pixels per meter. Each pixel contains 6 LEDs, allowing smooth addressable effects without excessive complexity.
Q2: What color is the aluminum base?
A2: Available in black or silver to match different architectural styles.
Q3: What voltage does it run on?
A3: Please refer to the product datasheet – typical options include DC12V or DC24V. Confirm with our team for your specific length and pixel configuration.
Q4: Is it truly waterproof for outdoor use?
A4: Yes, IP65 rated – fully dust-tight and protected against low-pressure water jets. It is suitable for rain, sprinklers, and outdoor facades.
Q5: How long does it take to deliver the DMX LED Tube after placing an order?
A5: The delivery time is typically between 8 and 12 working days.
