LED Flexible Pixel Mesh Display Outdoor RGB Mesh Screen Lights for Advertising Screens
LED Flexible Pixel Mesh Display Outdoor RGB Mesh Screen Lights for Advertising Screens
LED Flexible Pixel Mesh Display Outdoor RGB Mesh Screen Lights for Advertising Screens
LED Flexible Pixel Mesh Display Outdoor RGB Mesh Screen Lights for Advertising Screens
LED Flexible Pixel Mesh Display Outdoor RGB Mesh Screen Lights for Advertising Screens
LED Flexible Pixel Mesh Display Outdoor RGB Mesh Screen Lights for Advertising Screens
LED Flexible Pixel Mesh Display Outdoor RGB Mesh Screen Lights for Advertising Screens
LED Flexible Pixel Mesh Display Outdoor RGB Mesh Screen Lights for Advertising Screens
LED Flexible Pixel Mesh Display Outdoor RGB Mesh Screen Lights for Advertising Screens
LED Flexible Pixel Mesh Display Outdoor RGB Mesh Screen Lights for Advertising Screens
LED Flexible Pixel Mesh Display Outdoor RGB Mesh Screen Lights for Advertising Screens
LED Flexible Pixel Mesh Display Outdoor RGB Mesh Screen Lights for Advertising Screens
Specifications
Brand Name :
Ledcolourlight
Model Number :
LCL-3DVT20-RGB-D0401(P50)
Place Of Origin :
Shenzhen, China
Certification :
CE & RoHS
MOQ :
2 ㎡
Packaging Details :
Normal Carton + Wooden Box
Delivery Time :
8-15 Working Days
Payment Terms :
XT / PayPal / Credit Card
Supply Ability :
5000 ㎡/month
Product Name :
Flexible Mesh LED Display
Product Model :
LCL-3DVT20-RGB-D0401(P50)
Cabinet Material :
Plastic Body And Silicon Cable
Color :
RGB Full Color
Control :
SPI/DMX
Pixel Pitch :
50mm
Dot Size :
20x20mm
Dot Power :
1.2W
Voltage :
DC24V
LED Qty(Inside the dot) :
4 LEDs
LED Type :
SMD3535 LED
Physical Pixel Density(Pixels/㎡） :
400 Pixels/㎡
Power/㎡ :
480W/㎡
IP Rating :
IP66
Description

Product Description:

LED Flexible Pixel Mesh Display Outdoor RGB Mesh Screen Lights for Advertising Screens

The flexible LED mesh display is mostly for outdoor use. Its unique soft structure allows the screen to bend, roll up, hang, and fold into a variety of unique shapes.

The products are widely used in the stage background design, bars, building facades, and a variety of scene layouts and decorative lighting.

Pixel Pitch: 31.5mm, 40mm, 50mm, 80mm, 100mm, 150mm, 200mm, and other designs.

LED Dot designs: Round shape & Square shape.

LED Quantities inside the dot: 1 LED, 2 LEDs, 3 LEDs, 4 LEDs, 6 LEDs.

LED Flexible Pixel Mesh Display Outdoor RGB Mesh Screen Lights for Advertising Screens

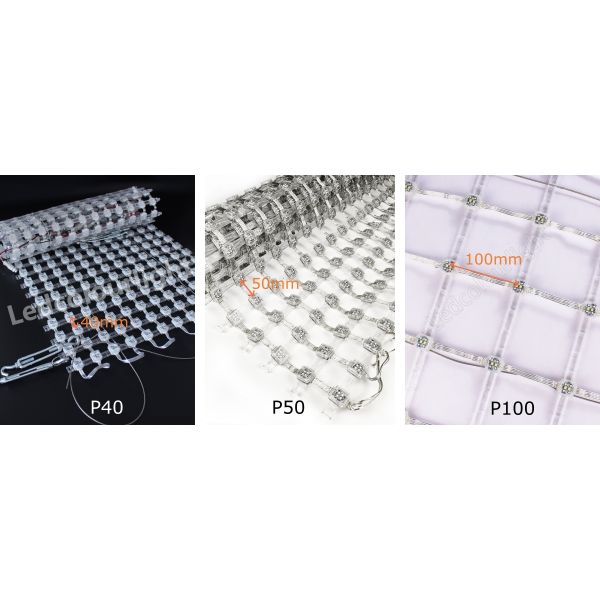

Product specifications
P40
P50
P100
Pixel Pitch
40mm
50mm
100mm
Dot size
20x20mm
20x20mm
20x20mm
Lamp quantity inside the dot
2 LEDs
2 LEDs
2 LEDs
Dot power
0.6W
0.6W
0.6W
Voltage
DC12V
DC12V
DC12V
Control
SPI/DMX
SPI/DMX
SPI/DMX
Lamps per square meter
625 pixels / m²
400 pixels / m²
100 pixels / m²
Power per square meter
375W/m²
240W/m²
60W/m²
Application environment
Indoor / Outdoor
Indoor / Outdoor
Indoor / Outdoor
Product installation
Steel support
Steel support
Steel support
Product bearing wire
2.0mm steel wire fixed (2 single modules)
2.0mm steel wire fixed (2 single modules)
2.0mm steel wire fixed (2 single modules)
Viewing distance
100 m or more
100 m or more
100 m or more
Viewing angle
Within 140 °
Within 140 °
Within 140 °
Flatness of lamps
<1mm
<1mm
<1mm
Signal transmission distance
Within 90 m of Super Category 5 cable
Within 90 m of Super Category 5 cable
Within 90 m of Super Category 5 cable
LED Flexible Pixel Mesh Display Outdoor RGB Mesh Screen Lights for Advertising Screens

Lighting Effects

Semi-Transparent LED Mesh: The transparent LED mesh is built to seamlessly allow for the penetration of visuals and light through it, making it perfect for applications like storefronts and some stage designs.


Lightweight LED Mesh: The mesh LED display features a lightweight structure that minimises load stress, making it easier and more cost-effective to install even on large-scale surfaces.


LED Data Line Bypass Function: Its LED Data Line Bypass function keeps LED PKGs working even when a module LED PKG is broken(or dead).

A single deal pixel can be fixed or replaced separately, which allows the LED to be operated with reduced costs and time for maintenance.


LED Flexible Pixel Mesh Display Outdoor RGB Mesh Screen Lights for Advertising Screens

Installations:

Flexible And Various Installation

Easy to bend, roll up, hang up, and fold.

LED Flexible Pixel Mesh Display Outdoor RGB Mesh Screen Lights for Advertising Screens

Applications:

Creative Solutions To Meet Any Kind of Application.

Real 3D, spherical shape, building advertising and lighting, stage background.

LED Flexible Pixel Mesh Display Outdoor RGB Mesh Screen Lights for Advertising Screens

FAQ:

Q1: Are you a factory or a trading company?
A1: We are a factory as a manufacturer.

Q2: What does your company produce mainly?
A2: Ledcolourlight specializes in DMX lighting products and provides full DMX lighting solutions for projects.

Q3: What certifications does it have?
A3: CE- and RoHS-certified for safety and environmental compliance.

Q4: What is the minimum order quantity?
A4: Minimum 2 pieces, samples are available.

Q5: What are the payment and delivery terms?
A5: PayPal, T/T, Credit Card, Western Union, L/C - 8-15 working days delivery.

Q6: Warranty?
A6: All products we sell are of good quality and have been tested before shipment. We offer a 2-year warranty.

Q7: OEM and ODM Available?
A7: Yes. This is the advantage of our factory: we focus on delivering an integrated customization service.

Q8: How about I have never bought or used any product like this?
A8: We will guide you step by step, list any potential costs, and provide an introductory manual or remote guidance.
