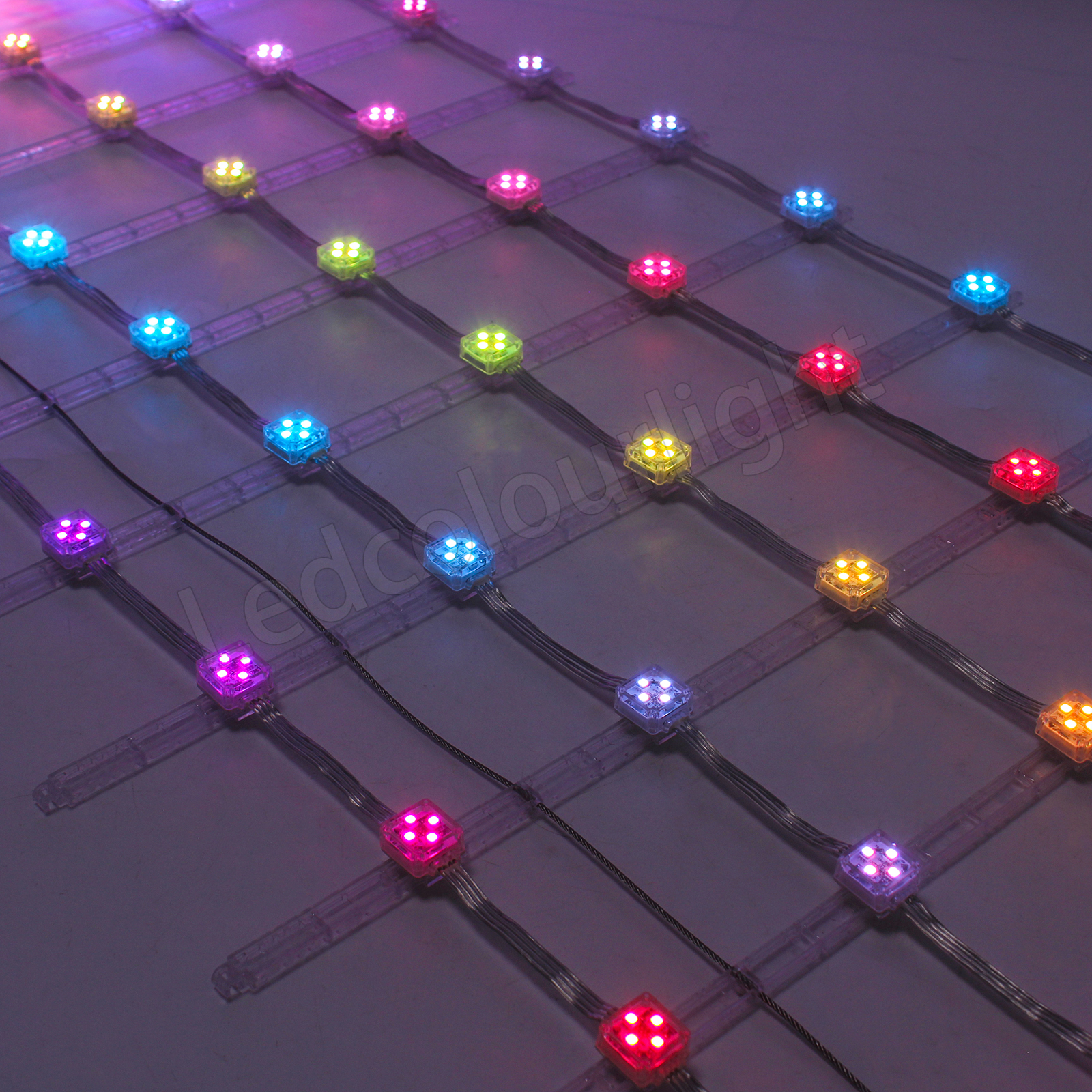

P100 Square Flexible LED Pixel Mesh Curtain Facade Video Wall Screen for Stage

Specifications

Delivery Time :

8-15 Working Days

Dot Power :

1.2W

LED Type :

SMD3535 LED

Model Number :

LCL-3DVT20-RGB-D0401(P100)

Product Model :

LCL-3DVT20-RGB-D0401(P100)

MOQ :

2 ㎡

Packaging Details :

Normal Carton + Wooden Box

Control :

SPI/DMX

Voltage :

DC24V

Supply Ability :

5000 ㎡/month

Dot Size :

20x20mm

Physical Pixel Density(Pixels/㎡） :

100 Pixels/㎡

Payment Terms :

XT / PayPal / Credit Card

Pixel Pitch :

100mm

Power/㎡ :

120W/㎡

IP Rating :

IP66

Certification :

CE & RoHS

Cabinet Material :

Plastic Body And Silicon Cable

LED Qty(Inside the dot) :

4 LEDs

Place Of Origin :

Shenzhen, China

Color :

RGB Full Color

Brand Name :

Ledcolourlight

Product Name :

Flexible Mesh LED Display

Description

Production Description

The flexible LED mesh display is mostly for outdoor use. Its unique soft structure allows the screen to bend, roll up, hang, and fold into a variety of unique shapes.

The products are widely used in stage background design, bars, building facades, and a variety of scene layouts and decorative lighting.

Pixel Pitch: 31.5mm, 40mm, 50mm, 80mm, 100mm, 150mm, 200mm, and other designs.

LED Dot designs: Round shape & Square shape.

LED Quantities inside the dot: 1 LED, 2 LEDs, 3 LEDs, 4 LEDs, 6 LEDs.

P100 Square Flexible LED Pixel Mesh Curtain Facade Video Wall Screen for Stage

Product specifications	P100

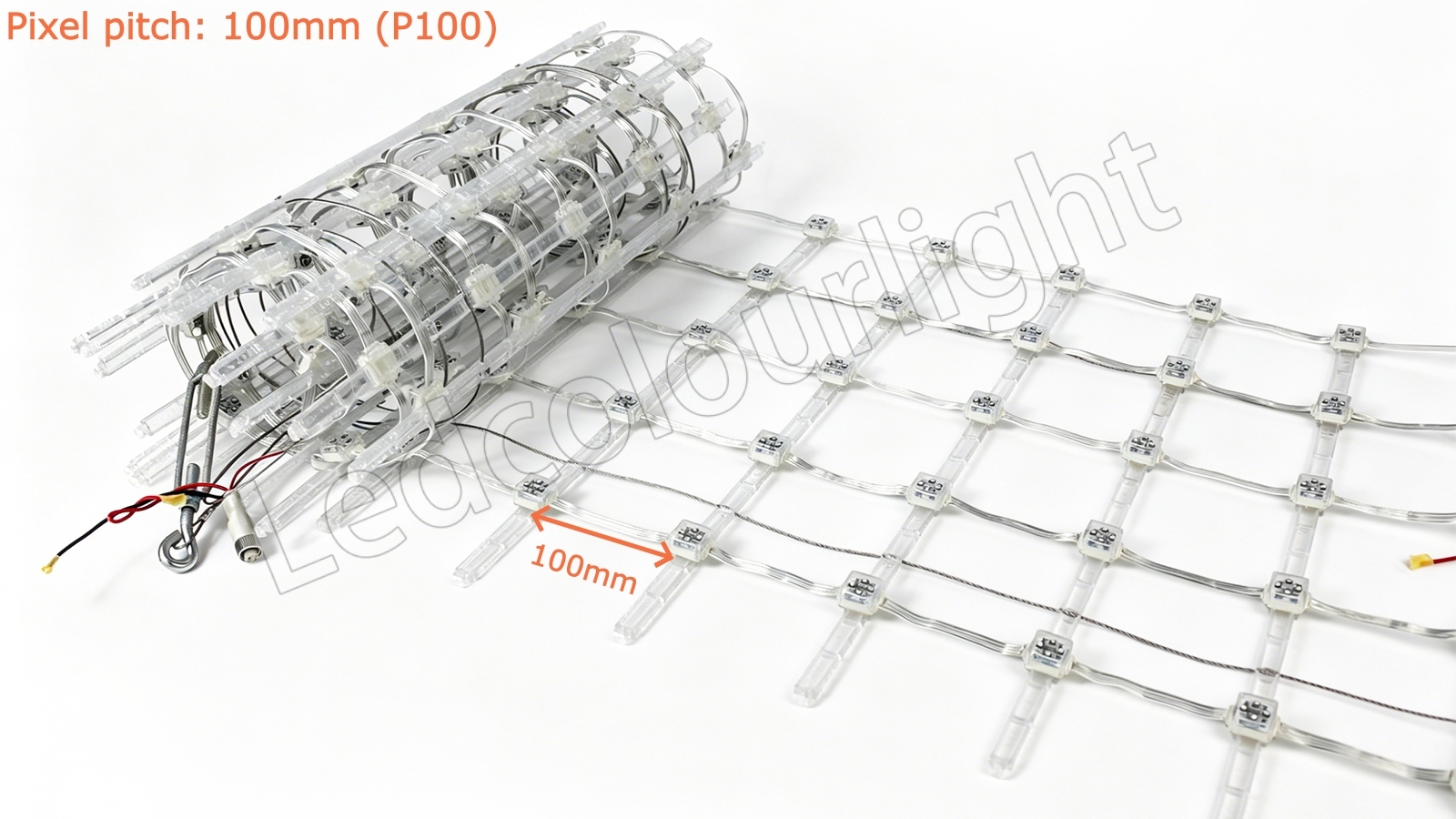

Pixel Pitch	100mm
Dot size	20x20mm
Lamp quantity inside the dot	4 LEDs
Dot power	1.2W
Voltage	DC24V
Control	SPI/DMX
Lamps per square meter	100 pixels / m²
Power per square meter	120W/m²
Application environment	Indoor / Outdoor
Product installation	Steel support
Product bearing wire	2.0mm steel wire fixed (2 single modules)
Viewing distance	100 m or more
Viewing angle	Within 140 °
Flatness of lamps	<1mm
Signal transmission distance	Within 90 m of Super Category 5 cable

Lighting Effects

Semi-Transparent LED Mesh: The transparent LED mesh is designed to allow visuals and light to pass through, making it perfect for applications like storefronts and certain stage designs.

Lightweight LED Mesh: The mesh LED display features a lightweight structure that minimises load stress, making it easier and more cost-effective to install even on large-scale surfaces.

LED Data Line Bypass Function: Its LED Data Line Bypass function keeps LED PKGs working even when a module LED PKG is broken(or dead).

A single dead pixel can be fixed or replaced separately, allowing the LED to be operated at reduced maintenance cost and time.

P100 Square Flexible LED Pixel Mesh Curtain Facade Video Wall Screen for Stage

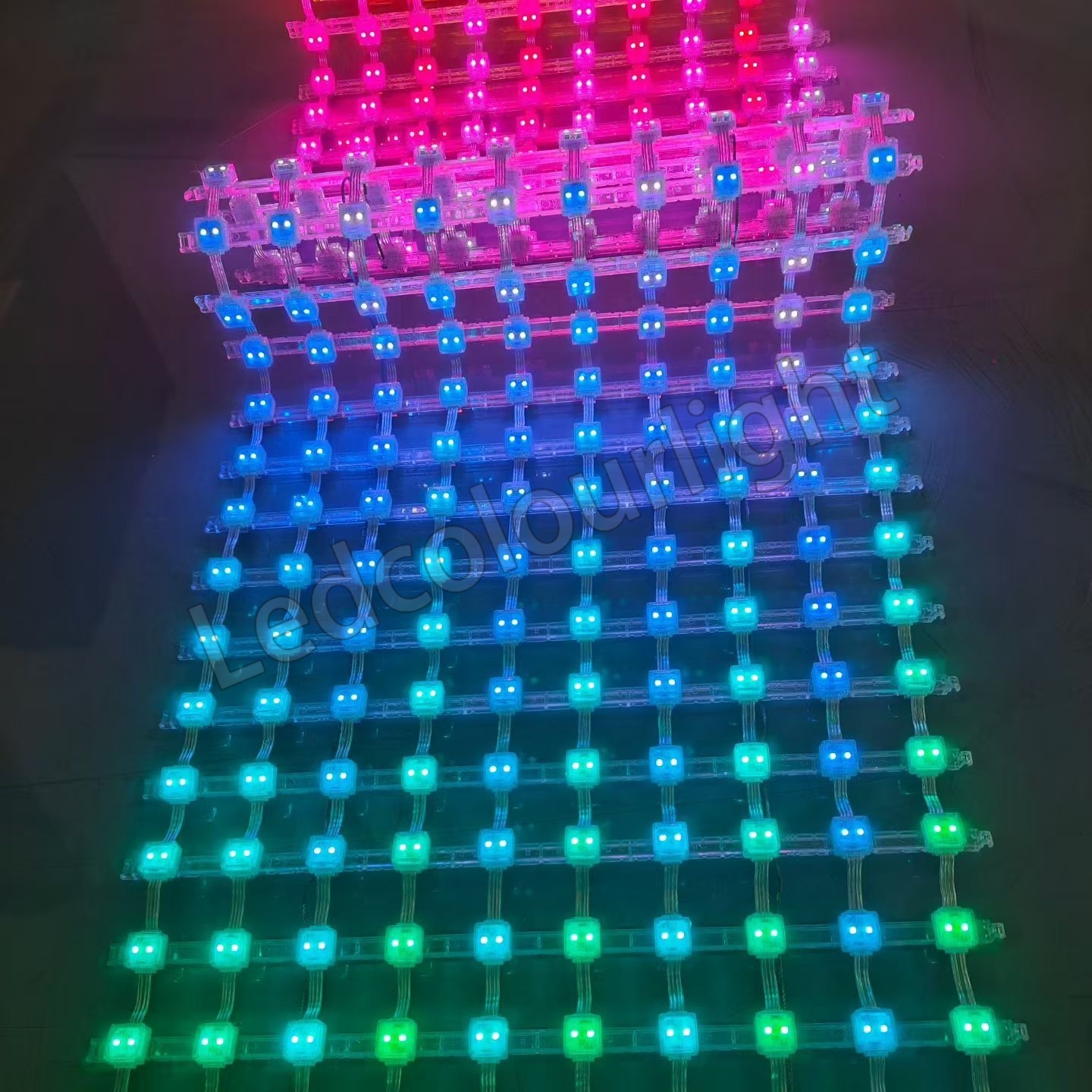

Other designs: P40 - Pixel pitch: 40mm. 625 pixels / m². & P50 - Pixel pitch: 50mm. 400 pixels / m²

P100 Square Flexible LED Pixel Mesh Curtain Facade Video Wall Screen for Stage

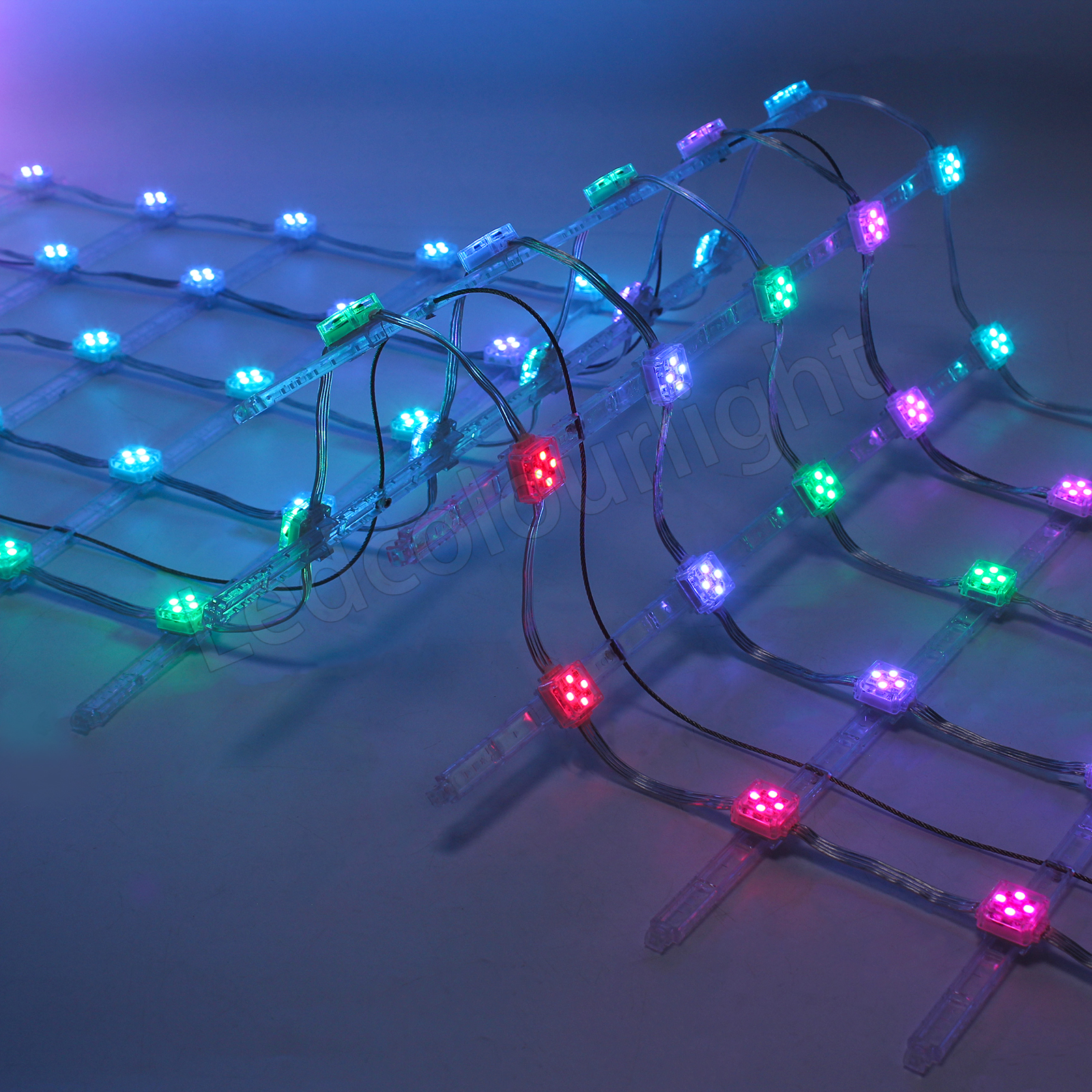

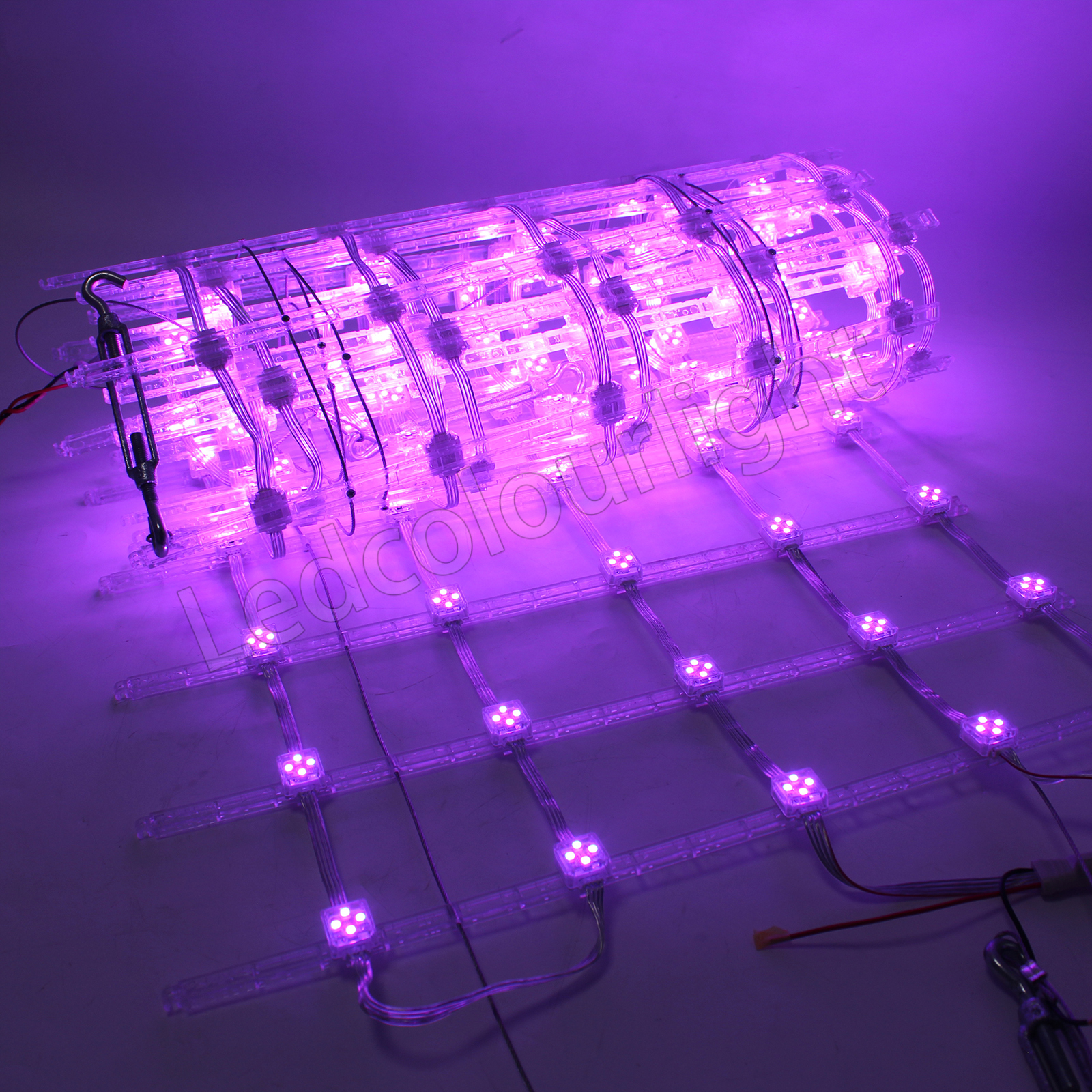

Installations:

Flexible And Various Installations.

Easy to bend, roll up, hang up, and fold.

P100 Square Flexible LED Pixel Mesh Curtain Facade Video Wall Screen for Stage

Applications:

Creative Solutions To Meet Any Kind of Application.

Real 3D, spherical shape, building advertising and lighting, stage background.

FAQ:

Q1: Are you a factory or a trading company?

A1: We are a factory as a manufacturer.

Q2: What does your company mainly produce?

A2: Ledcolourlight specializes in DMX lighting products and provides full DMX lighting solutions for projects.

Q3: What certifications does it have?

A3: CE- and RoHS-certified for safety and environmental compliance.

Q4: What is the minimum order quantity?

A4: Minimum 2 pieces; samples are available.

Q5: What are the payment and delivery terms?

A5: PayPal, T/T, Credit Card, Western Union. - 8-15 working days for delivery.

Q6: Warranty?

A6: All products we sell are of good quality and have been tested before shipment. We offer a 2-year warranty.

Q7: OEM and ODM Available?

A7: Yes. This is the advantage of our factory: we focus on delivering an integrated customization service.

Q8: What if I have never bought or used any product like this?

A8: We will guide you step by step, list any potential costs, and provide an introductory manual or remote guidance.
