Specifications
Delivery Time :
12~15 Working Days
Power Consumption :
1.2W Per Node
IP Rating :
IP66
Brand Name :
Ledcolourlight
Control :
DMX512, SPI
Light Type :
SMD3535 * 4
Model Number :
LCL-RGB-LP3040-DMX-24V-0401
Working Voltage :
DC24V
MOQ :
500
Lifespan :
50,000 hours
Material :
PC Shell
Payment Terms :
T/T,PayPal
Customization :
Pixel spacing and string length
Packaging Details :
55*36*39cm, 700 Nodes Per Box
Product Name :
LED Pixel Point Light String
Color :
RGB
Certification :
CE, RoHs
Usage :
Outdoor Building Facade Lighting
Place Of Origin :
Shenzhen, China
Length :
1m/5m/10 Meters
Description

IP66 Outdoor Building LED Pixel String Lights 30x40mm DC24V RGB Point Light

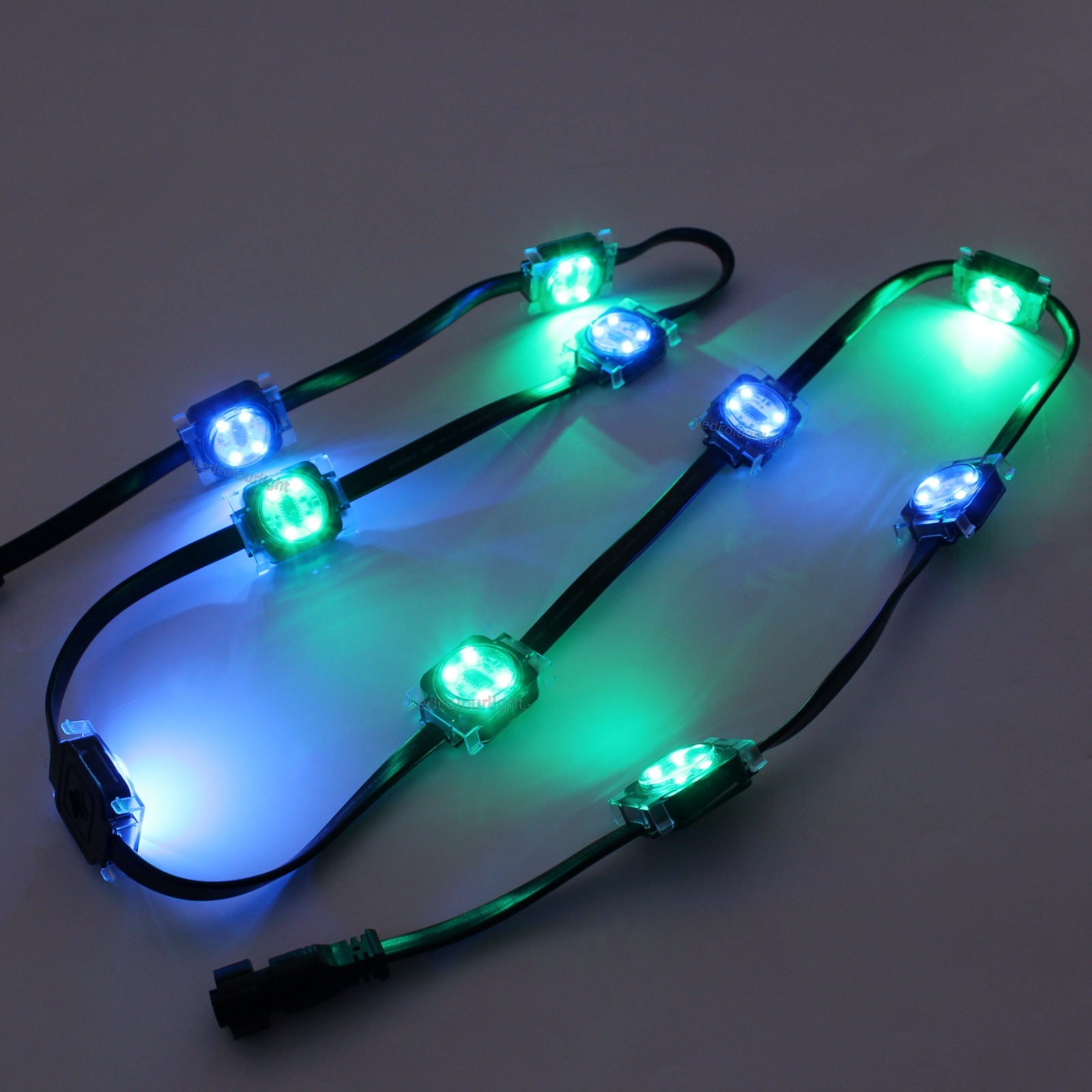

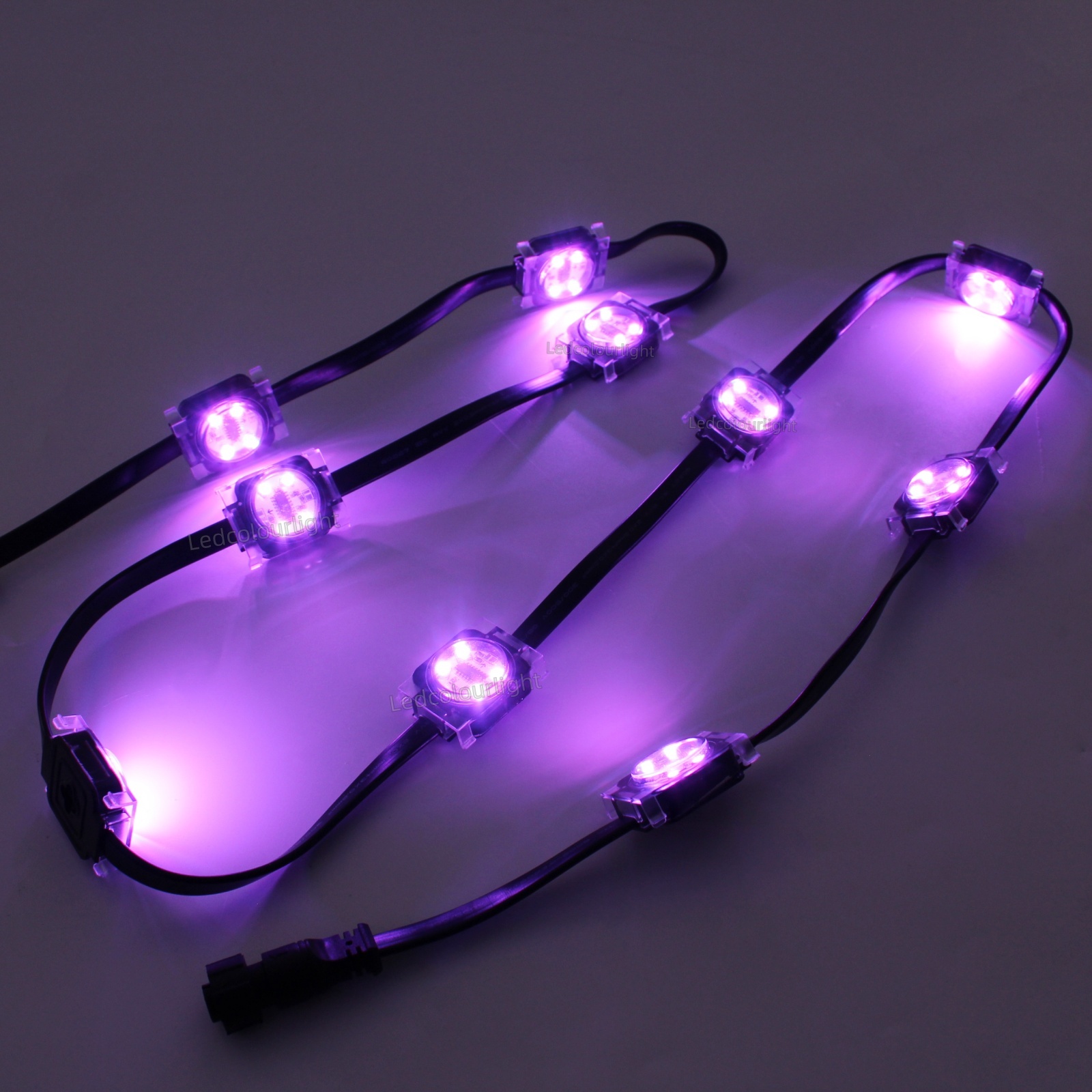

DMX512 / SPI Control Protocol | RGB Full Color | Customized Spacing & Length

IP66 Outdoor Building LED Pixel String Lights 30x40mm DC24V RGB Point Light

Features:

- Dimensions: 30×40mm

- Power Supply: DC24V, low voltage for safer outdoor use

- Versions: RGB (4pcs SMD3535 RGB LEDs) / RGBW (4pcs RGB + 2pcs white SMD2835 LEDs)

- Control Protocol: DMX512 / SPI, single pixel controllable

- Housing: Transparent PC, IP66 waterproof rating

- Customizable pixel pitch: 10–20cm, customized on request

- Customizable quantity per string: 20–30pcs per string or customized

- Multiple mounting options: clip mounting, wire rope bracket fixing, aluminum channel installation

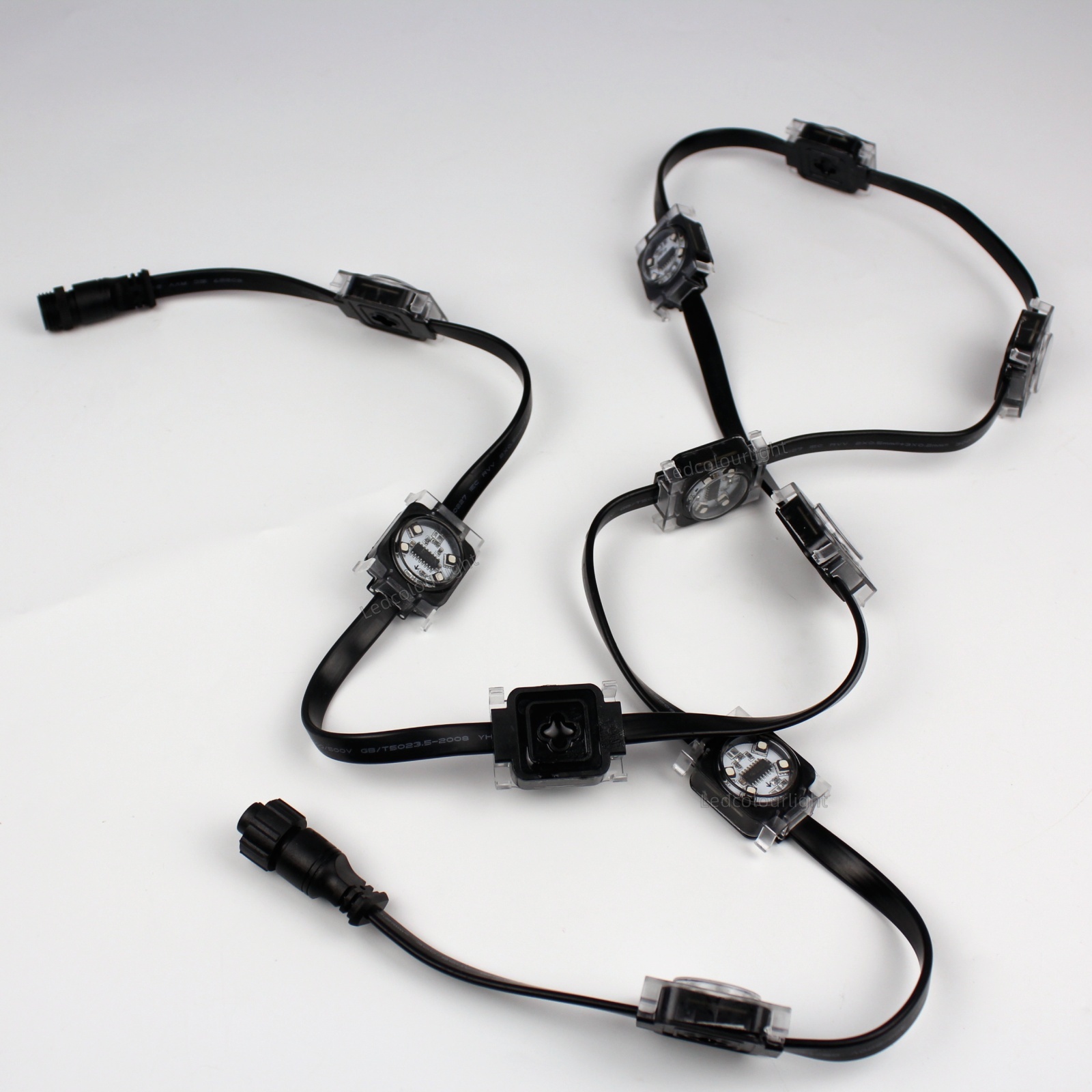

- Daisy-chainable design for large-scale lighting layouts

Technical Parameters:

Product Name 30x40mm RGB Pixel Dot Light String
Color High-brightness SMD RGB LEDs High-brightness SMD RGBW LEDs
Light Type SMD3535 * 4 SMD3535 4 + SMD2835 2
Installation Method Direct clip mounting / wire installation / aluminum channel installation
Number of LEDs 10/20/30 Per String
Control DMX512 / SPI addressable pixel control
Voltage DC24V
Power Consumption 1.2W 1.44W

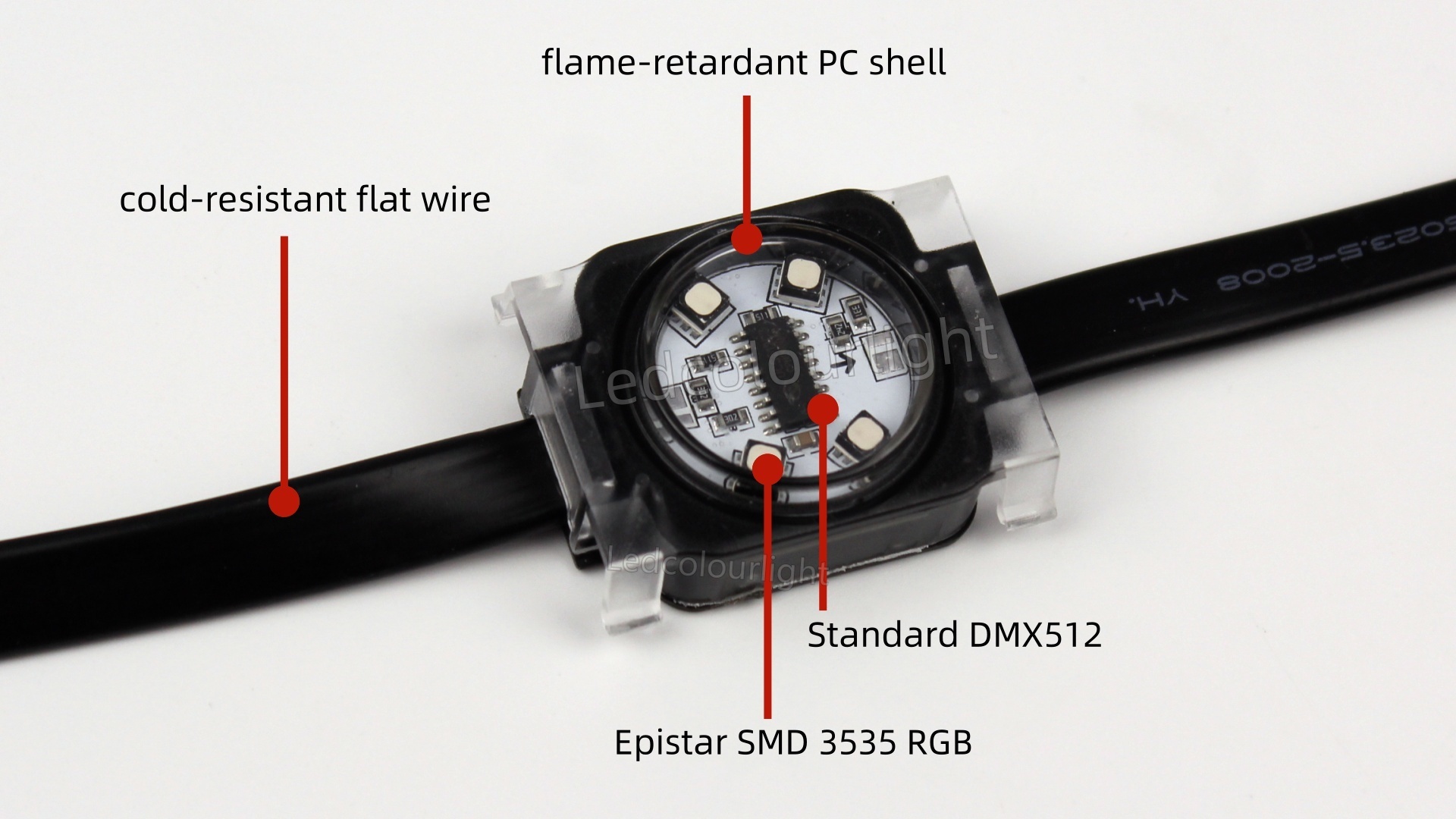

Material Flame-retardant PC base + transparent PC lampshade
IP Grade IP66
Spacing 10cm, 20cm, 30cm, custom
Application Facade Signage, Landscape, Stage

Product Description:

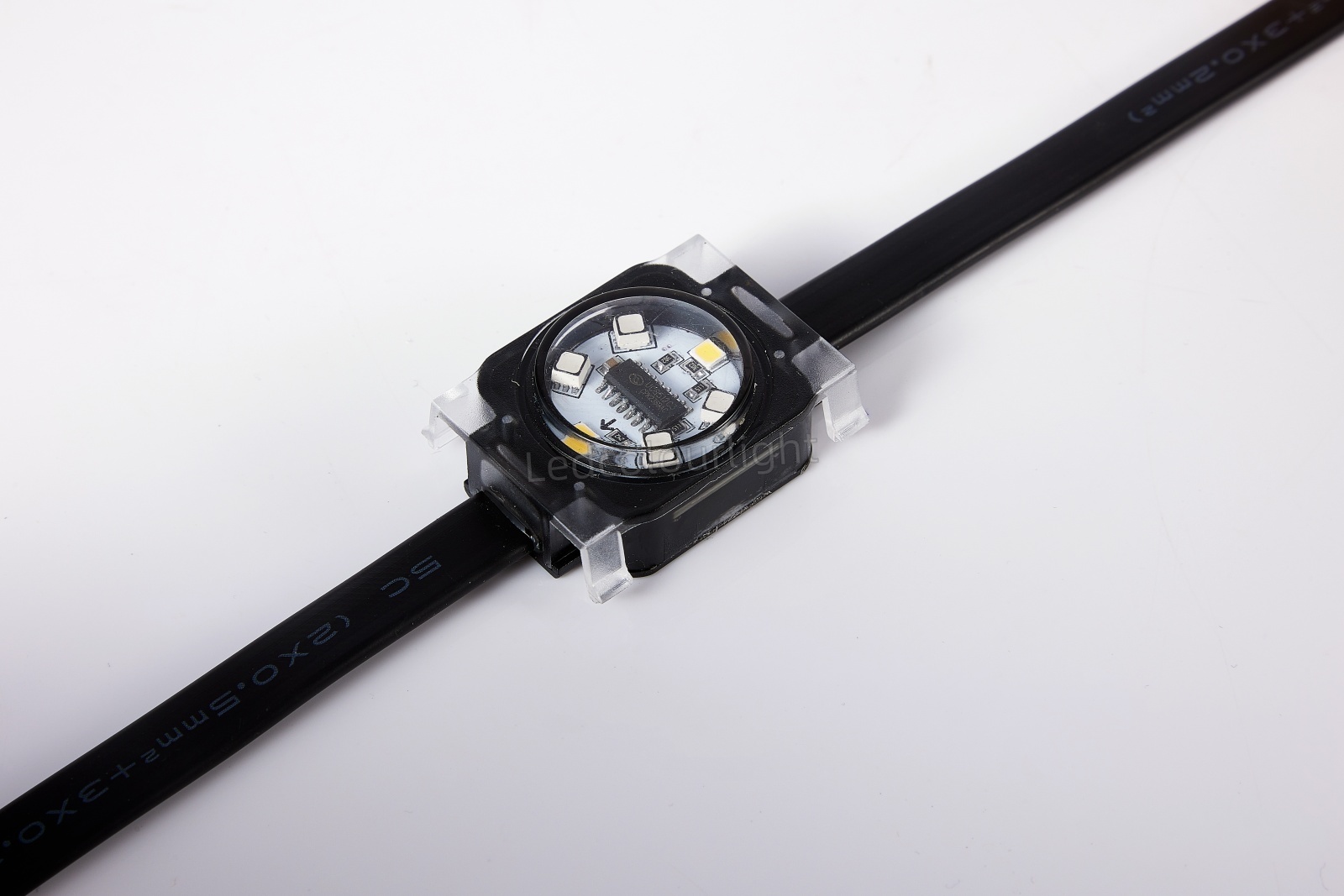

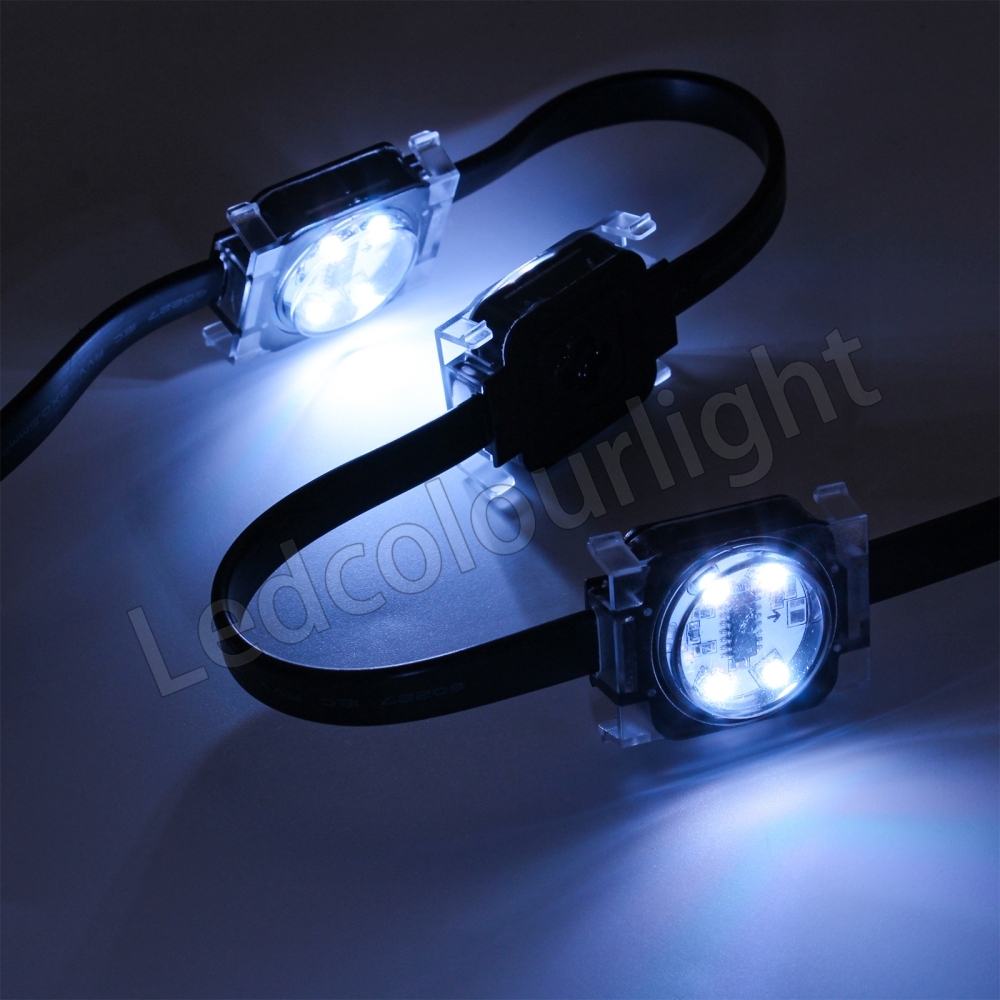

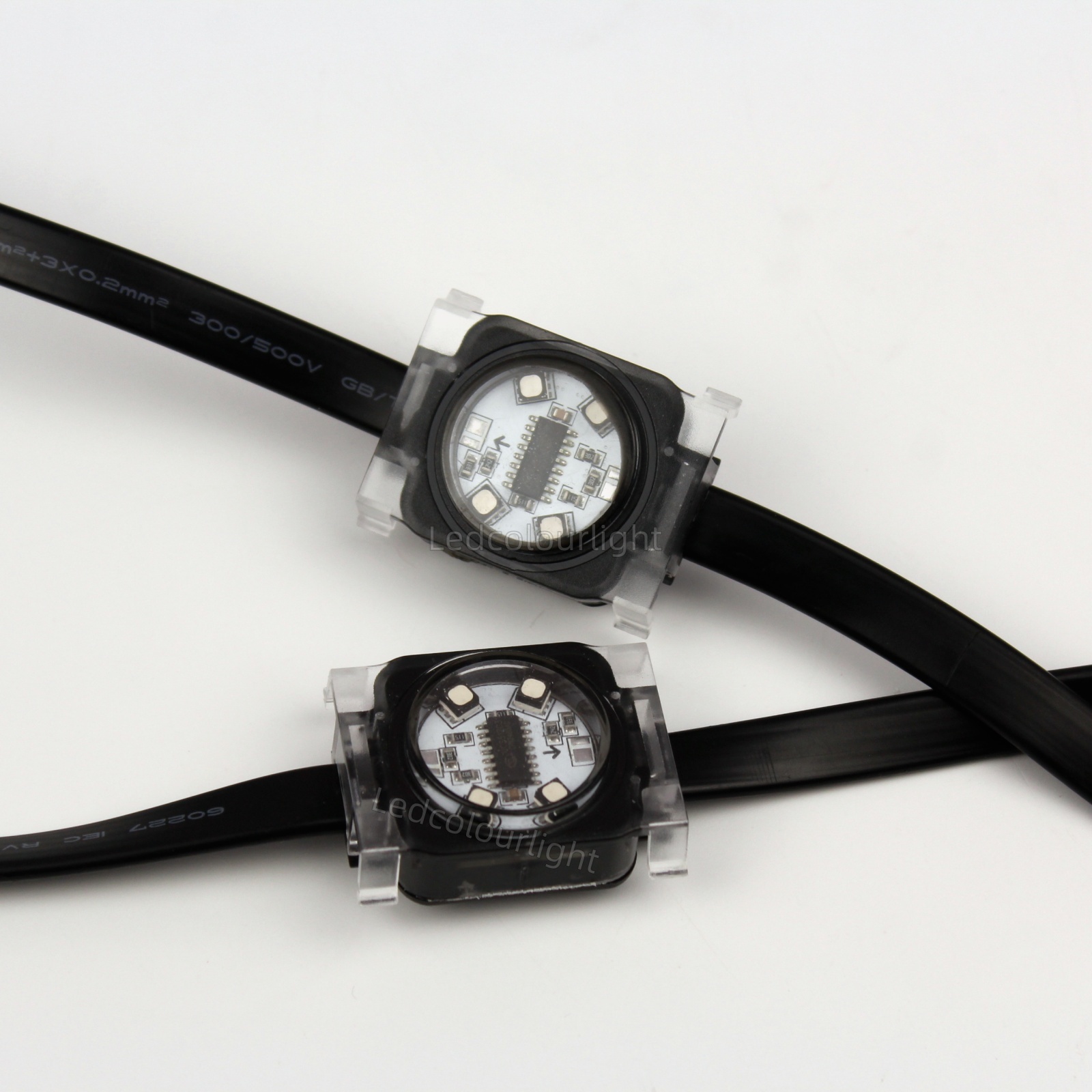

This 30×40mm LED pixel point light is a programmable DC24V pixel module, available in RGB and RGBW versions. It supports DMX and SPI signal protocols for individual pixel addressing and color control. Featuring a transparent PC housing with IP66 protection, it supports flexible installation via mounting holes, wire rope bracket suspension, or aluminum channel mounting. The pixel spacing and quantity per string are customizable to suit diverse facade and lighting projects.

IP66 Outdoor Building LED Pixel String Lights 30x40mm DC24V RGB Point Light

IP66 Outdoor Building LED Pixel String Lights 30x40mm DC24V RGB Point Light IP66 Outdoor Building LED Pixel String Lights 30x40mm DC24V RGB Point Light

  • Customized pixel spacing and string length

IP66 Outdoor Building LED Pixel String Lights 30x40mm DC24V RGB Point Light IP66 Outdoor Building LED Pixel String Lights 30x40mm DC24V RGB Point Light

IP66 Outdoor Building LED Pixel String Lights 30x40mm DC24V RGB Point Light IP66 Outdoor Building LED Pixel String Lights 30x40mm DC24V RGB Point Light

  • Optional RGBW full-color

IP66 Outdoor Building LED Pixel String Lights 30x40mm DC24V RGB Point Light

Connection Diagram for LED Pixel Dot Light String

IP66 Outdoor Building LED Pixel String Lights 30x40mm DC24V RGB Point Light

Applications:

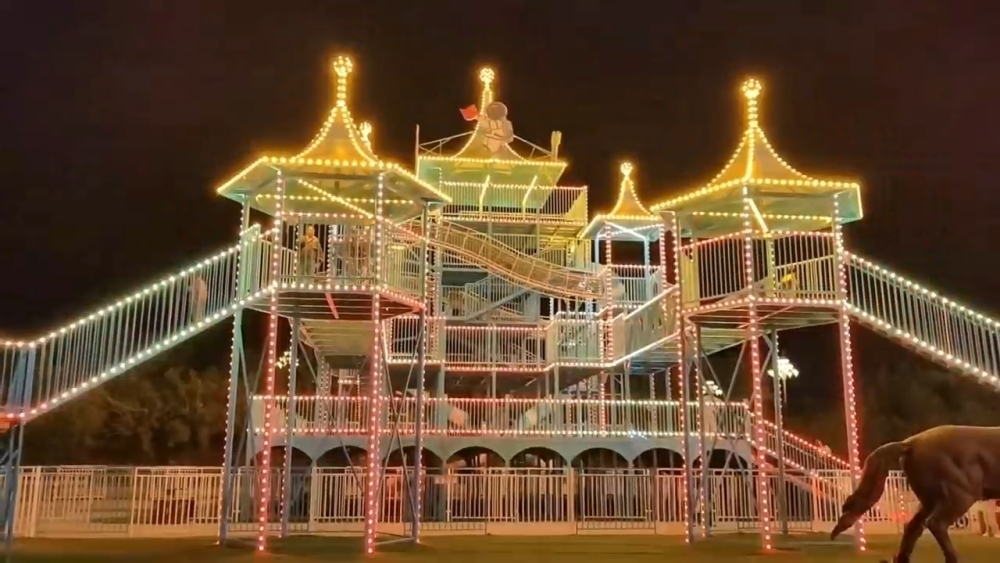

Building facade lighting, media facade, architectural contour lighting, theme park decoration, stage background, commercial plaza, hotel exterior, creative pixel screen, landmark lighting projects

IP66 Outdoor Building LED Pixel String Lights 30x40mm DC24V RGB Point Light

FAQ:

Q1: Can I customize the pixel spacing and total length of the light string?

A1: Yes. We support fully customized pixel pitch and whole string length according to your project drawings and installation layout requirements.

Q2: What control systems can this pixel module match?

A2: We have both DMX512 and SPI protocol versions, compatible with Art-Net signal converters, SD card DMX controllers, and mainstream lighting design software including Madrix and MadMapper.

Q3: Is this pixel light suitable for long-term outdoor use?

A3:Absolutely. Full glue potting IP66 waterproof structure and anti-aging PC shell guarantee stable outdoor operation against rain and dust all year round.

Q4: How many dots can I connect in one chain?

A6: Typically 60 to 80 dots, depending on spacing and power supply capacity. For longer runs, use power injection or multiple driver outputs.

Q5: Can I get a sample before placing a large order?

A7: Yes. Samples are available. Contact us with your configuration requirements.
