Specifications
Model Number :
LCL-RGB-LP2872-DMX-24V-0601
Control :
DMX512, SPI
MOQ :
500
Working Voltage :
DC24V
Usage :
Outdoor Building Facade Lighting
Delivery Time :
12~15 Working Days
Customization :
Pixel spacing and string length
Power Consumption :
1.44W Per Node
Brand Name :
Ledcolourlight
Length :
1m/5m/10 Meters
Lifespan :
50,000 hours
Place Of Origin :
Shenzhen, China
IP Rating :
IP66
Payment Terms :
T/T,PayPal
Product Name :
LED Pixel Dot Light String
Packaging Details :
55*36*39cm, 700 Nodes Per Box
Material :
PC Shell
Light Type :
SMD3535 * 6 + 2
Certification :
CE, RoHs
Color :
RGBW
Description

28x72mm DMX LED Point Light DC24V IP66 RGBW Pixel Lighting for Outdoor Building

DMX512 Control Protocol | RGBW Full Color | Customized Spacing & Length

28x72mm DMX LED Point Light DC24V IP66 RGBW Pixel Lighting for Outdoor Building

Features:

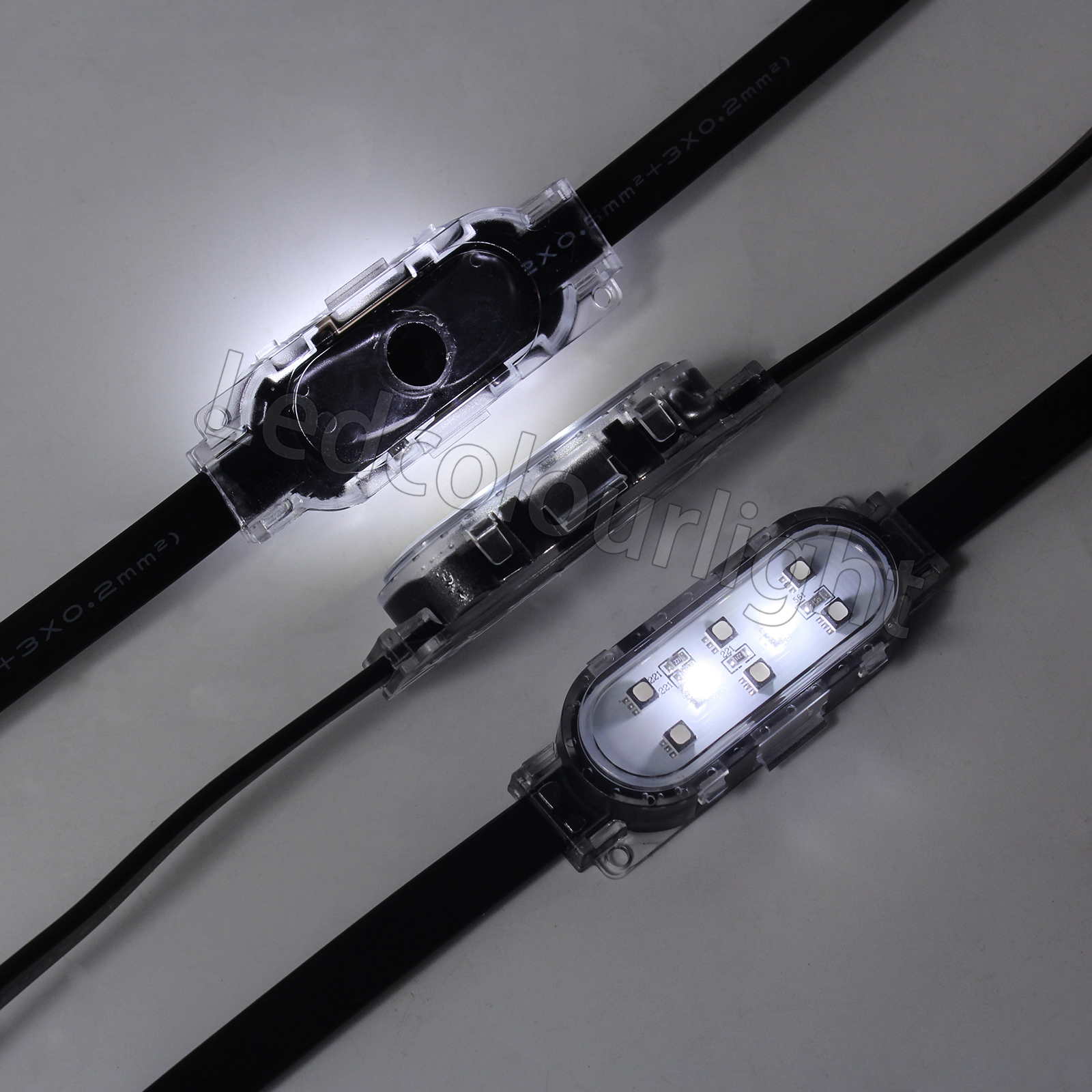

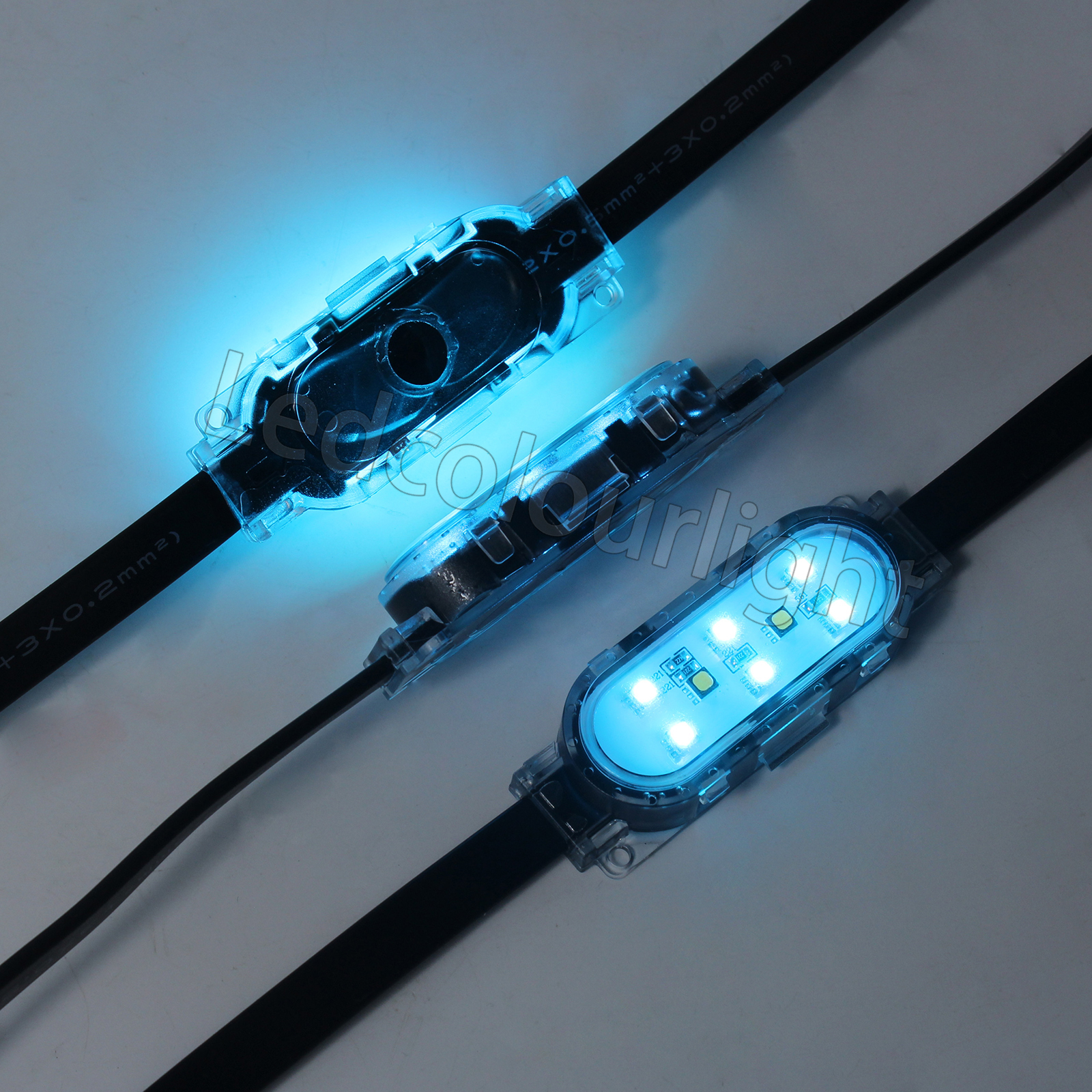

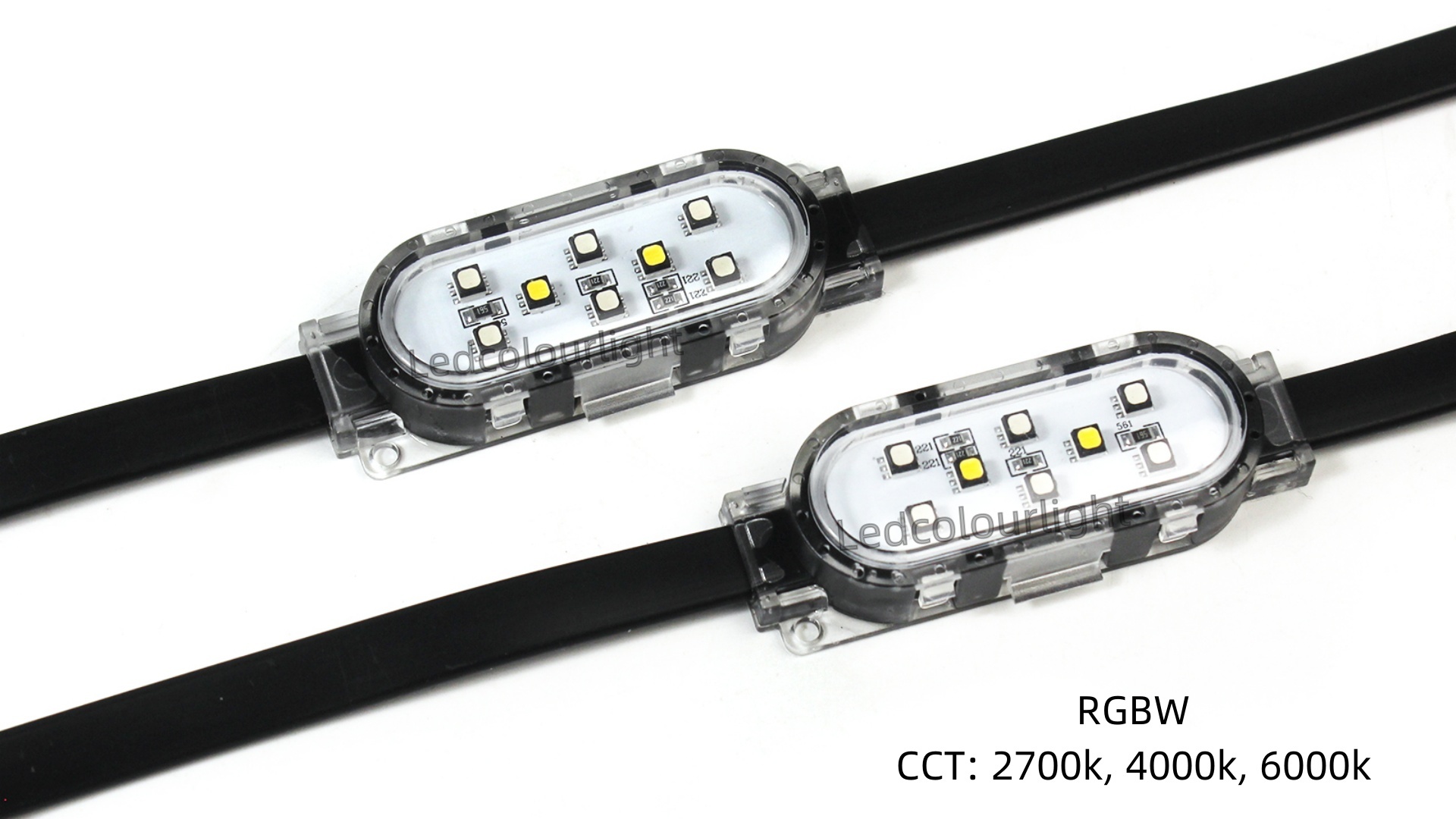

▻ Dimension: 28×72mm per pixel unit

▻ LED Chip: 6pcs SMD3535 RGB + 2pcs white LED, RGBW colour mixing

▻ Voltage: DC24V low-voltage power supply, safe for long-term outdoor operation

▻ Control Protocol: Supports DMX512 and SPI, individually addressable pixels

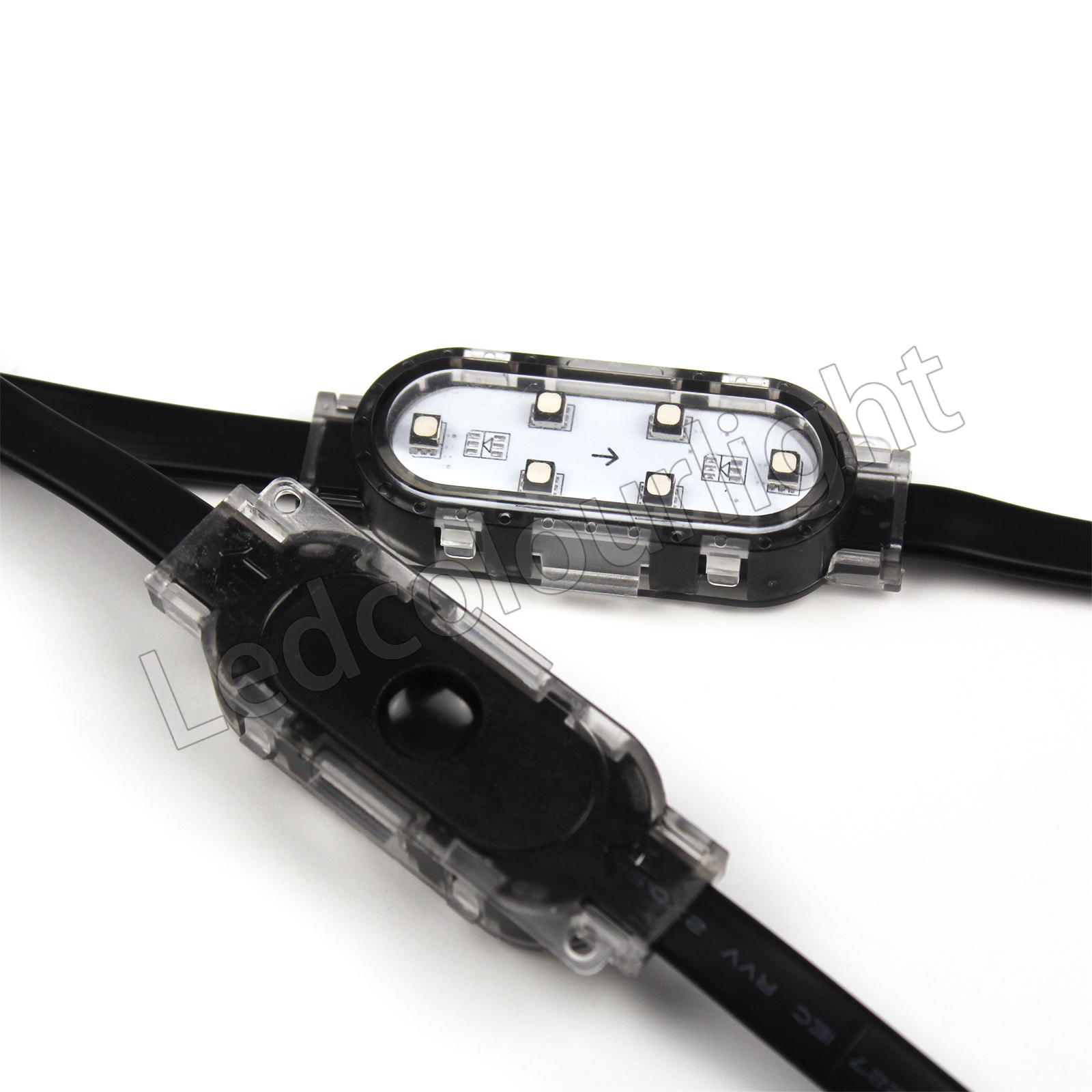

▻ Housing: Transparent clear PC outer shell, IP66 waterproof grade

▻ Customization: Pixel center pitch 10–20cm (custom available); 20–30 pixels per string, adjustable

▻ Flexible Installation: Pre-drilled mounting holes at both ends; optional steel wire mounting with brackets or aluminium profile installation

▻ Consistent light output, good heat dissipation, stable performance for outdoor use

Technical Parameters:

Product Name 28x72mm RGBW Pixel Point Lights
Color High-brightness SMD RGB LEDs High-brightness SMD RGBW LEDs
Light Type SMD3535 * 6 SMD3535 * 6 + 2
Installation Method Direct clip mounting / wire installation / optional aluminum channel installation
Number of LEDs 10/20/30 Per String
Control DMX512 / SPI addressable pixel control
Voltage DC24V
Power Consumption 1.44W 1.96W
Material Flame-retardant PC base + transparent PC lampshade
Flexibility Bendable And Twistable
Spacing 10cm, 20cm, 30cm, custom
Application Facade Signage, Landscape, Stage

Product Description:

This 28×72mm RGBW LED pixel point light is a robust, addressable linear pixel light engineered for professional architectural and entertainment lighting projects. It adopts a clear PC housing with an IP66 waterproof rating, built with 6pcs SMD3535 RGB LEDs plus 2pcs white LEDs to deliver rich color mixing and clean white output. Powered by DC24V low voltage, it supports both DMX and SPI signal protocols for flexible control. Multiple installation options are available: mounting holes on both ends, wire cable tension mounting with brackets, or aluminium channel mounting. Pixel pitch and quantity per string are fully customizable to fit custom facade, media screen, and creative lighting designs.

28x72mm DMX LED Point Light DC24V IP66 RGBW Pixel Lighting for Outdoor Building

28x72mm DMX LED Point Light DC24V IP66 RGBW Pixel Lighting for Outdoor Building 28x72mm DMX LED Point Light DC24V IP66 RGBW Pixel Lighting for Outdoor Building

28x72mm DMX LED Point Light DC24V IP66 RGBW Pixel Lighting for Outdoor Building 28x72mm DMX LED Point Light DC24V IP66 RGBW Pixel Lighting for Outdoor Building

28x72mm DMX LED Point Light DC24V IP66 RGBW Pixel Lighting for Outdoor Building 28x72mm DMX LED Point Light DC24V IP66 RGBW Pixel Lighting for Outdoor Building

  • RGB full color

28x72mm DMX LED Point Light DC24V IP66 RGBW Pixel Lighting for Outdoor Building 28x72mm DMX LED Point Light DC24V IP66 RGBW Pixel Lighting for Outdoor Building

- Related Pixel String Lights
28x72mm DMX LED Point Light DC24V IP66 RGBW Pixel Lighting for Outdoor Building 28x72mm DMX LED Point Light DC24V IP66 RGBW Pixel Lighting for Outdoor Building

Connection Diagram for LED Pixel Dot Light String

28x72mm DMX LED Point Light DC24V IP66 RGBW Pixel Lighting for Outdoor Building

Applications:

The RGBW Pixel Dot String Light is designed for a wide range of indoor and outdoor lighting projects:

  1. High-rise building curtain wall & outline decorative lighting
  2. Shopping mall exterior, hotel and commercial complex facade media displays
  3. Amusement park, scenic landmark and bridge contour lighting projects
  4. Stage backdrop, outdoor event pixel screen and themed entertainment venue lighting
  5. Urban nightscape renovation and large-scale grid media lighting installations

28x72mm DMX LED Point Light DC24V IP66 RGBW Pixel Lighting for Outdoor Building

FAQ:

Q1: Can I customize the pixel spacing and total length of the light string?

A1: Yes. We support fully customized pixel pitch and whole string length according to your project drawings and installation layout requirements.

Q2: What control systems can this pixel module match?

A2: We have both DMX512 and SPI protocol versions, compatible with Art-Net signal converters, SD card DMX controllers, and mainstream lighting design software including Madrix and MadMapper.

Q3: Is this pixel light suitable for long-term outdoor use?

A3:Absolutely. Full glue potting IP66 waterproof structure and anti-aging PC shell guarantee stable outdoor operation against rain and dust all year round.

Q4: How many dots can I connect in one chain?

A6: Typically 60 to 80 dots, depending on spacing and power supply capacity. For longer runs, use power injection or multiple driver outputs.

Q5: Can I get a sample before placing a large order?

A7: Yes. Samples are available. Contact us with your configuration requirements.
