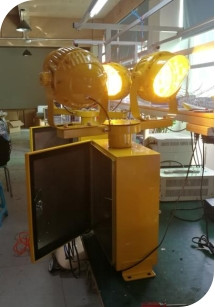

25000cd Airport Rotating Beacon White Green / White Yellow 24 Flashes/min
25000cd Airport Rotating Beacon White Green / White Yellow 24 Flashes/min
25000cd Airport Rotating Beacon White Green / White Yellow 24 Flashes/min
25000cd Airport Rotating Beacon White Green / White Yellow 24 Flashes/min
Specifications
Brand Name :
ANNHUNG
Model Number :
AH-HP-R2
Certification :
ICAO CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
7-15 work days
Packaging Details :
carton
Colors :
White and Yellow, White and Green or others
Flash Characteristics :
24 flashes per minute (other is customized)
Light intensity :
≥25000cd (other is customized)
Mounting :
390×70×θ12
Dimension(mm) :
566×260×740
Weight(kg) :
22
Description

AH-HP-R2 Airport Rotating Beacon

The heliport/Airport beacon shall be located on or adjacent to the heliport preferably at an elevated position and so that it does not dazzle a pilot at short range.

This Rotated beacons is for night operation as identification and location markers for airports.

Compliance

FAA L-801, L-802 150/5345-12F

ICAO Annex 14 Volume I 5.3.3

Features

LED as light source, ≥100,000 hour typical lamp life.

Two head, Two emitting color

No maintenance

Weatherproof stainless steel cabinet, powder-coated international aviation yellow.

Solar power system is optional, ensure the lights could be used at area without electrical power supply

Application

Helipad/Heliport/Helideck

Airport

25000cd Airport Rotating Beacon White Green / White Yellow 24 Flashes/min

Description Parameter
Light Source LED
Flash Characteristics

24 flashes per minute
Operation Mode

24hours operation
LED Life Experience(hours) >100,000
Operating Voltage

220/240AC

Circuit Protection

Integrated
Mounting

390×70×θ12
Dimension(mm)

566×260×740
Weight(kg) 22
Ambient Temperature(℃)

-40~65
Humidity

10~90%
Wind Speed

80m/s
Waterproof IP66
Options Available

Solar power system

Airport light

Heliport lighting

Helipad lights

Airfield light

Heliport led light

Heliport beacons

Led aircraft lights
